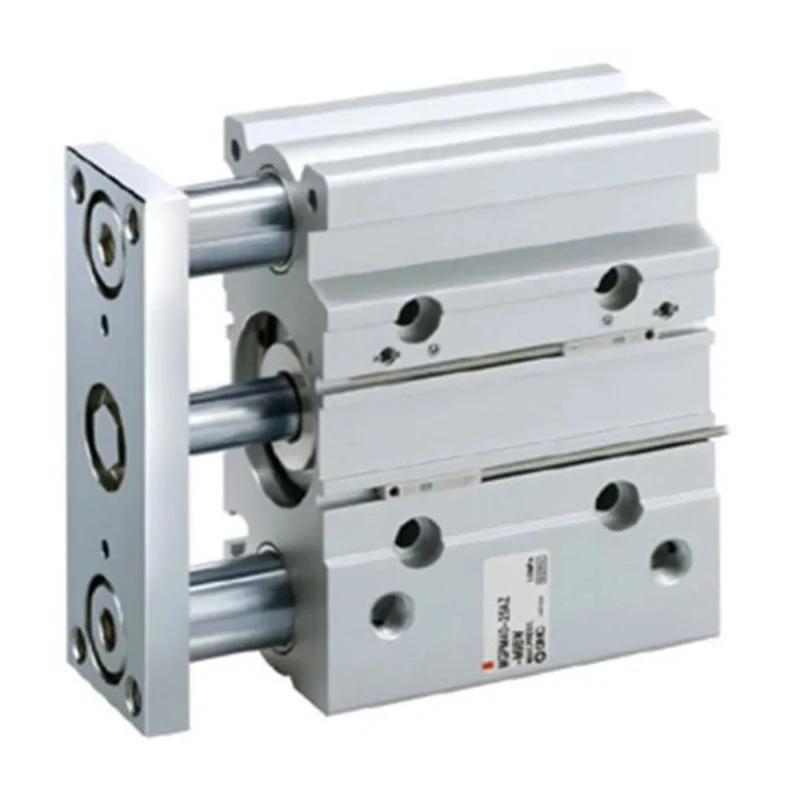

SMC Pneumatic Guided Cylinder 20mm Bore Aluminium Alloy Body Double Acting 125mm Stroke MGPL20TF-125AZ

SMC MGPL20TF-125AZ Pneumatic Guided Cylinder is a high-performance actuator featuring a 20mm bore and 125mm stroke length. Its aluminium alloy body is engineered to provide strength while maintaining a lightweight profile, making it suitable for a variety of industrial applications. The double acting cylinder uses compressed air to provide force in both directions, ideal for precise linear motion control tasks in automation and manufacturing.

This cylinder integrates internal guide shafts with high precision ball bearings, isolating load bearing from rod movement, which ensures stable travel resistance and smooth, vibration-free operation. The rubber bumper cushioning reduces noise and mechanical shock, enhancing durability and operational comfort.

Rated for a maximum operating pressure of 1 MPa and capable of a maximum piston speed of 500 mm/s, this cylinder is reliable for demanding fluid power applications. It is designed to operate in environments ranging from -10°C to 60°C, suitable for a broad range of industrial conditions.

The MGPL series is auto-switch capable, adding flexibility for integration with control systems. Its non-rotating accuracy within +/-0.10° guarantees precision in pushing or lifting applications where directional stability is critical.

This component is widely used in sectors such as industrial automation, manufacturing engineering, and pneumatics systems within HVAC, laboratory automation, and mechanical tooling setups. The cylinder's compact design aids installation in confined spaces without sacrificing performance.

Constructed with lightweight aluminium alloy body for corrosion resistance. Double acting mechanism providing force in both directions. Maximum operating pressure of 1 MPa for efficient pneumatic power. Equipped with rubber bumpers for cushioning and noise reduction.

High precision ball bearing guide ensures stable, smooth operation. Operates reliably within temperatures from -10°C to 60°C. Non-rotating accuracy suitable for pushing and lifting applications. Compact design integrates internal guide shafts to isolate load.

Ideal for industrial automation, manufacturing, and fluid power systems.

Choose the SMC MGPL20TF-125AZ Pneumatic Guided Cylinder for your pneumatic actuation needs to ensure precision, durability, and efficiency. Explore more Pneumatic Guided Cylinders and accessories on EnvMart.
