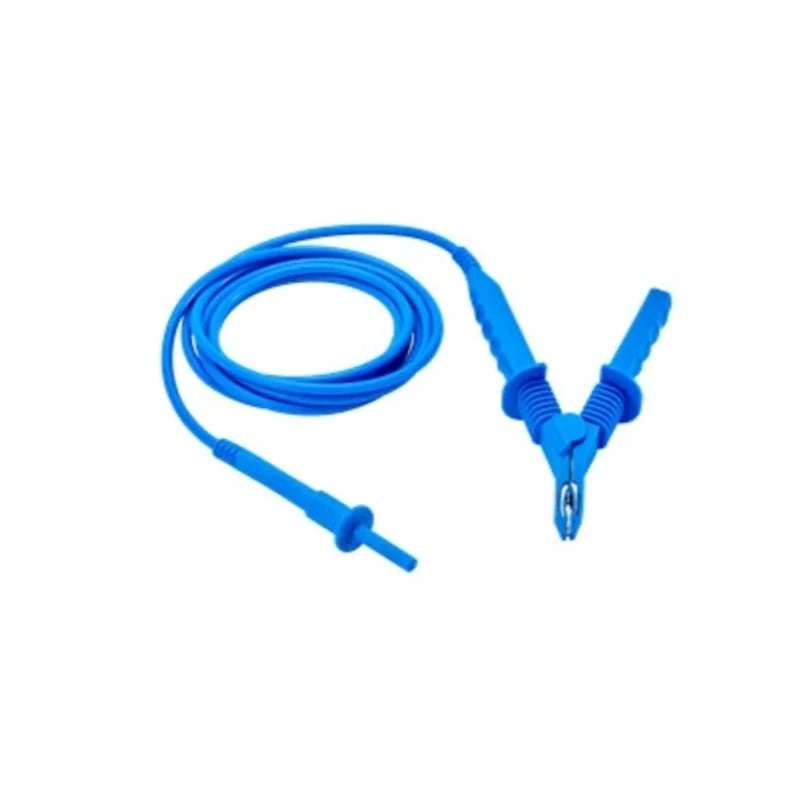

Chauvin Arnoux Insulation Tester HV Test Lead Set Probe P01295508 for CA 6505 CA 6545 CA 6547 CA 6549

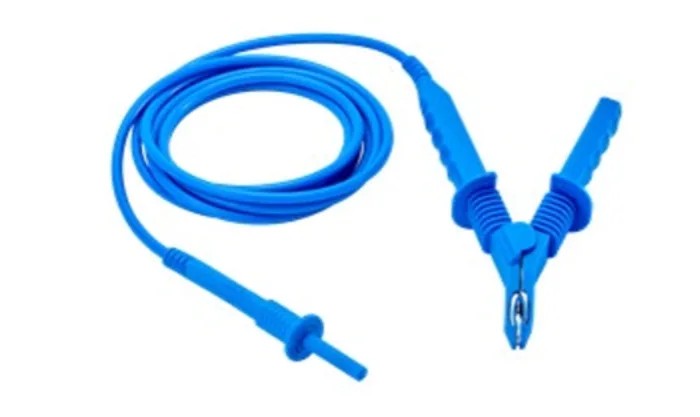

Chauvin Arnoux P01295508 Insulation Tester HV Test Lead Set Probe is an essential accessory designed for use with insulation testers including models CA 6505, CA 6545, CA 6547, and CA 6549. This high-quality test lead set is engineered to ensure safe, reliable connectivity during insulation resistance measurements and high-voltage testing.

The leads are rated to handle currents up to 10A, providing robustness for demanding electrical test environments, while the piggyback jacks are limited to 15mA for enhanced user safety. The black lead piggyback jack is electrically connected to the internal shielding braid, and the blue lead piggyback jack connects to the core of the lead, available in either 0.3 meters or 0.5 meters in length, offering flexibility in test setups.

The crocodile clips included feature a clamping capacity suitable for conductor diameters ranging from 1 mm up to 34 mm or bars up to 12 mm, making them versatile for various cables and components. The blue insulated lead is not only functional but also color-coded for ease of identification during use.

Operating temperature tolerance ranges between -10°C and +50°C, ensuring reliable performance in a wide range of industrial and field conditions. The double-insulated construction enhances safety, protecting the operator from electric shock during measurements.

This accessory conforms to CE standards, reaffirming its compliance with European safety and quality requirements. It is manufactured in China and built to meet the practical needs of professionals in electrical testing, diagnostics, and maintenance.

Leads rated for 10A maximum current capacity. Piggyback jacks limit current to 15mA for safety. Black lead piggyback jack connected to internal braid shielding. Blue lead piggyback jack connected to lead core with 0.3m or 0.5m length options.

Crocodile clips clamp onto conductors sized from 1mm to 34mm diameter or 12mm bar. Operating temperature range from -10°C to +50°C. Double insulated design for user protection. Blue lead colour for easy identification.

This Chauvin Arnoux insulation tester lead set is valuable for electrical test and measurement, construction, industrial maintenance, manufacturing process diagnostics, and HVAC system servicing. It assures compatibility and performance when used with the specified Chauvin Arnoux insulation tester models, enhancing test accuracy and safety. For more related measuring instruments and accessories, explore the full range at EnvMart.
