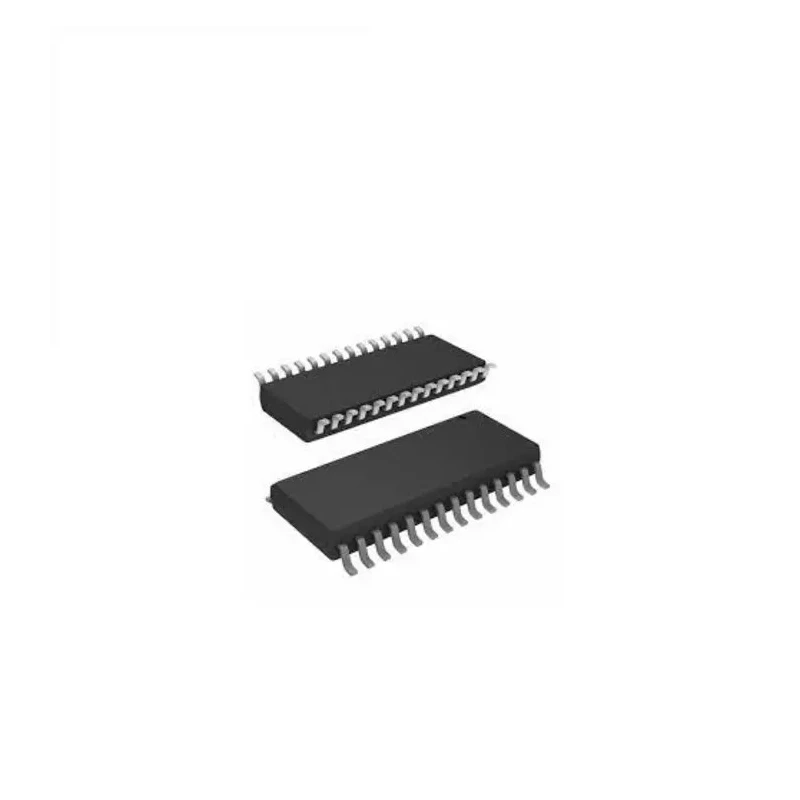

Microchip PIC Microcontroller 64 MHz 64kB FLASH 28-Pin SOIC PIC18F26K80-E/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC18F26K80-E/SO |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS3, REACH |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 24 |
| Instruction Set Architecture | RISC |
| ADCs | 24 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- This device operates over a voltage range of 1.8 V to 5.5 V.
- Features an on-chip 3.3 V regulator for stable operation.
- Includes 1,024 bytes of data EEPROM and 3.6 Kbytes of SRAM registers.
- Supports up to 24 programmable I/O pins for flexible interfacing.
- Offers enhanced interrupt priority levels and an extended watchdog timer.
- Programmable brown-out reset and in-circuit serial programming/debugging via two pins.
- Incorporates a single-cycle 8x8 hardware multiplier for efficient computation.
- Typical 10,000 erase/write cycles with a 20-year data retention reliability.
Product Description
The Microchip PIC18F26K80-E/SO is a high-performance PIC microcontroller designed for industrial, automotive, and consumer electronic applications. Operating at up to 64 MHz, it features 64 kB of on-chip flash memory and a comprehensive set of peripherals that make it ideal for complex embedded system designs.
Spanning an operating voltage range from 1.8 V to 5.5 V, this device incorporates an integrated 3.3 V regulator to reduce system power supply requirements. Its architecture follows the RISC instruction set for efficient processing and low code footprint. The microcontroller includes 1,024 bytes of EEPROM, 3.6 Kbytes of SRAM, and 24 ADC channels with 12-bit resolution for precise analog signal measurement.
The PIC18F26K80-E/SO supports up to 24 programmable I/O pins and includes onboard peripherals such as a single-cycle 8x8 hardware multiplier and an extended watchdog timer to enhance reliability. Interrupt priority levels are well defined, enabling responsive real-time control. Its programmable brown-out reset enhances device safety under fluctuating voltage conditions. In-circuit serial programming (ICSP) and debugging are supported through dedicated pins, facilitating streamlined development and testing.
The device is rated for operation in harsh temperature environments from -40°C to 85°C, making it suitable for automotive and rugged industrial applications. Additionally, it complies with RoHS3 and REACH regulations, ensuring environmental safety standards. Memory endurance supports 10,000 typical erase/write cycles and guarantees data retention for 20 years under typical conditions.
This product is used extensively in embedded systems requiring low power consumption and high operational speed. Applicable in automotive control units, industrial automation, and consumer device electronics. Also suited for HVAC control, medical devices, and instrumentation applications.
Set your design apart with the Microchip PIC18F26K80-E/SO, offering a blend of robustness, efficiency, and versatile peripheral integration. Explore more Microcontrollers and embedded solutions with EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this microcontroller is 64 MHz.
This model operates over a voltage range of 1.8 V to 5.5 V.
It features 64 kB of on-chip flash memory.
The PIC18F26K80-E/SO supports up to 24 programmable I/O pins.
This microcontroller is rated for operation in temperatures ranging from -40°C to 85°C.
It uses a RISC instruction set architecture for efficient processing.
Yes, it includes 1,024 bytes of data EEPROM.
The microcontroller comes in a 28-pin SOIC package.
It features 24 ADC channels with 12-bit resolution for precise analog signal measurement.
The PIC18F26K80-E/SO complies with RoHS3 and REACH regulations.
The maximum supply voltage for this model is 5.5 V.
It includes enhanced interrupt priority levels and an extended watchdog timer to improve reliability.
