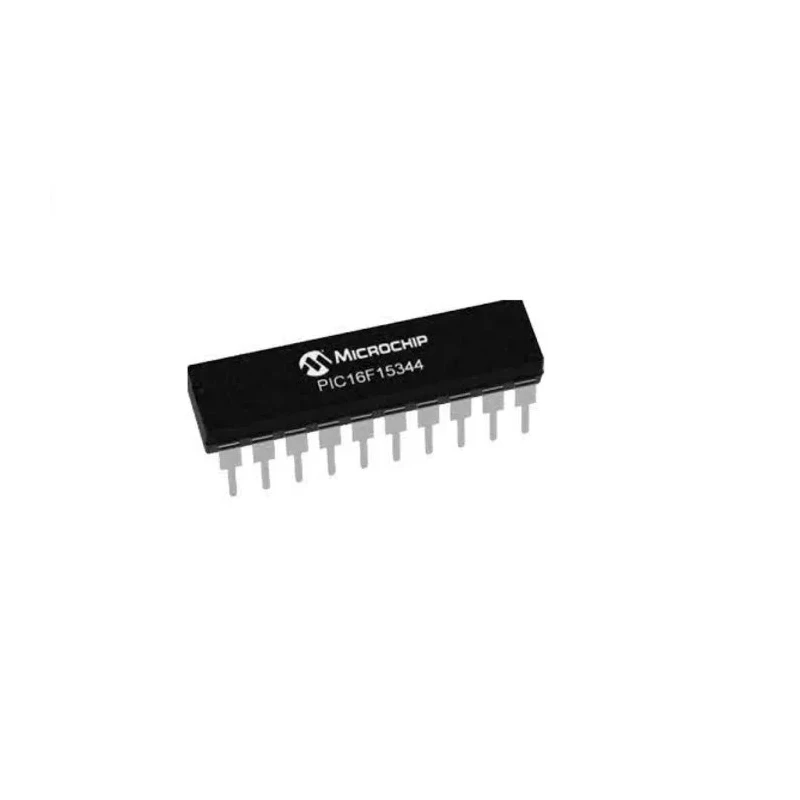

Microchip 8 bit PIC Microcontroller, 32 MHz Clock, 7kB FLASH Memory, 20-Pin DIP PIC16F15344-I/P

Microchip PIC16F15344-I/P is an 8 bit PIC microcontroller designed for versatile and low power embedded applications. It comes in a 20-Pin DIP through-hole mounting package and operates up to a maximum clock speed of 32 MHz. With 7kB of on-chip FLASH memory, this microcontroller supports efficient program storage and execution.

This device integrates a range of core independent peripherals including multiple pulse width modulation (PWM) channels and communication interfaces, as well as a built-in temperature sensor. It features Memory Access Partitioning to enhance data protection and supports bootloader applications. The Device Information Area retains factory calibration values for improved analog functionality.

The PIC16F15344-I/P features 18 programmable I/O pins, 17 10-bit ADC channels, a 5-bit DAC, and 2 analog comparators, making it suitable for mixed-signal applications. It contains two timers, including an 8-bit Timer2 with hardware limit timer and a 16-bit Timer0/1, enabling precise control and timing functions.

This microcontroller adopts a Harvard instruction set architecture optimized for RISC performance, offering a minimum instruction cycle of 125 ns. It includes power-saving features such as low current power-on reset and configurable brown-out reset options, enabling operation in power-sensitive environments.

Designed for industrial applications, it supports operating temperatures from -40°C to 85°C and supply voltages from 2.3 V up to 5.5 V. The device is compliant with REACH and RoHS3 environmental standards, ensuring safe use and disposal.

Common applications include general-purpose embedded systems, industrial control, sensor interfacing, communication devices, and low-power battery-operated equipment. The DIP package allows easy prototyping and through-hole PCB mounting suitable for laboratory and manufacturing environments.

Features a PIC device core with 8-bit data bus width. Supports up to 32 MHz maximum clock frequency for high-speed operations. 7kB of FLASH program memory with Memory Access Partition support. Includes 18 programmable I/O pins suitable for varied applications.

Operates at supply voltages between 2.3 V and 5.5 V. Contains 17 10-bit ADC channels and one 5-bit DAC for analog interfacing. Equipped with 2 analog comparators and 2 hardware timers for precise timing. Designed for industrial temperature ranges from -40°C to 85°C.

Implements eXtreme Low Power (XLP) technology for energy efficiency. Complies with REACH and RoHS3 environmental standards. Explore the extensive Microcontroller category at EnvMart to find suitable embedded solutions for your projects and production lines.
