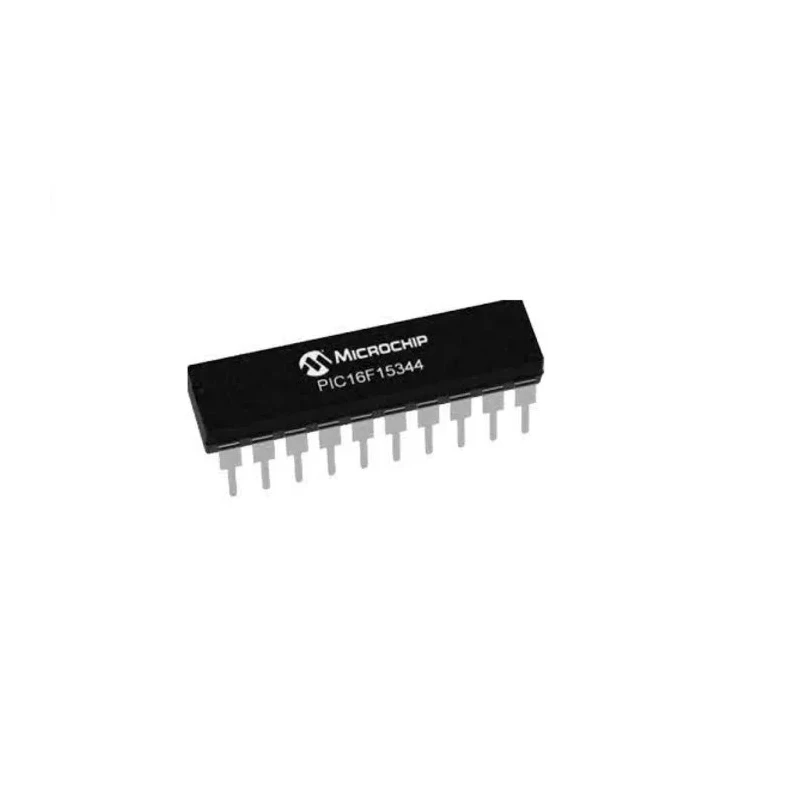

Microchip 8 bit PIC Microcontroller 7kB FLASH 32 MHz 20-Pin DIP PIC16F15344-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC16F15344-I/P |
| Width | 7.62mm |
| Mount Type | Through Hole |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | Harvard |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- 32 MHz maximum clock frequency for fast processing.
- 7kB of program memory with FLASH type.
- Supports 18 programmable I/Os with 20-pin DIP package.
- Operates from 2.3V minimum to 5.5V maximum supply voltage.
- Wide operating temperature range from -40°C to 85°C.
- Features 2 analogue comparators and 1 DAC with 5-bit resolution.
- Contains 17 ADC channels with 10-bit resolution for analog signal processing.
- Harvard architecture providing efficient RISC instruction execution.
Product Description
Microchip PIC16F15344-I/P is an 8 bit PIC microcontroller featuring advanced analog and core-independent peripherals incorporated with eXtreme Low Power (XLP) technology. It delivers 7kB FLASH program memory and runs at a maximum clock frequency of 32 MHz, housed in a 20-pin Dual Inline Package (DIP) designed for through-hole mounting.
This microcontroller operates from a supply voltage range of 2.3V to 5.5V, supporting robust performance across varying conditions. It features 18 programmable input/output pins, 2 analog comparators, and a 5-bit digital-to-analog converter (DAC) enhancing signal control capabilities.
The 17-channel 10-bit analog-to-digital converters (ADCs) allow precise analog measurements essential for sensors and instrumentation. The device utilizes Harvard architecture with a RISC instruction set optimized for high code efficiency and low power consumption, suitable for both general-purpose and battery-powered applications.
Additional features include multiple hardware timers (two), a 16-level deep hardware stack, and various reset options such as power-on reset (POR) and brown-out reset (BOR) for reliable operation. The product meets REACH and RoHS3 standards, ensuring environmental compliance.
Applications include embedded systems in industrial automation, consumer electronics, HVAC controls, and automotive electronics not requiring automotive grade certification. 32 MHz maximum clock frequency for fast processing.
7kB of program memory with FLASH type. Supports 18 programmable I/Os with 20-pin DIP package. Operates from 2.3V minimum to 5.5V maximum supply voltage. Wide operating temperature range from -40°C to 85°C. Features 2 analogue comparators and 1 DAC with 5-bit resolution.
Contains 17 ADC channels with 10-bit resolution for analog signal processing. Harvard architecture providing efficient RISC instruction execution. Includes multiple timers suitable for embedded timing applications. Compliant with REACH and RoHS3 environmental standards.
Explore the full range of Microchip Microcontrollers and embedded solutions available at EnvMart for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for fast processing capabilities.
It features a program memory size of 7kB, utilizing FLASH memory type.
This microcontroller operates within a supply voltage range of 2.3V to 5.5V.
The PIC16F15344-I/P supports 18 programmable input/output pins.
It operates within a wide temperature range from -40°C to 85°C.
This model includes 2 analog comparators and 1 digital-to-analog converter (DAC) with 5-bit resolution.
It contains 17 analog-to-digital converter (ADC) channels, each with 10-bit resolution.
The PIC16F15344-I/P is housed in a 20-pin Dual Inline Package (DIP) designed for through-hole mounting.
It utilizes a Harvard architecture with a RISC instruction set, optimized for efficiency.
The device complies with REACH and RoHS3 environmental standards.
This microcontroller includes two hardware timers suitable for embedded timing applications.
The PIC16F15344-I/P is manufactured in India.
