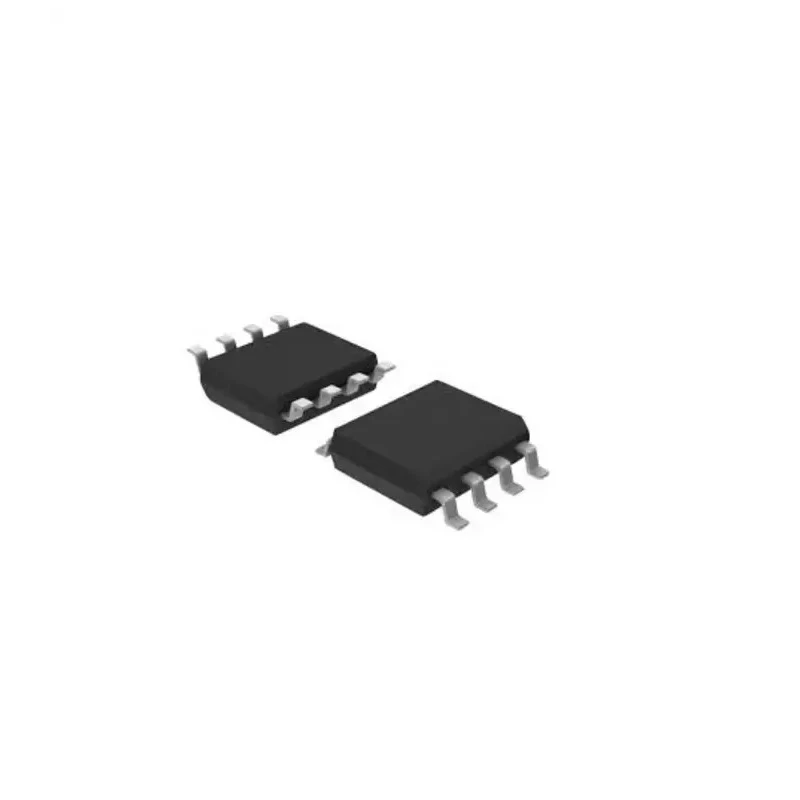

Microchip 8 bit PIC Microcontroller 4 MHz 1.5kB OTP, 8-Pin SOIC PIC12C509A-04I/SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.98mm |
| Length | 5.33mm |
| Model | PIC12C509A-04I/SM |
| Width | 5.38mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 41bit |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 1.5kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 5 |
| Number of Timers | 1 |
| Instruction Set Architecture | Harvard 8 Bit |
| ADCs | 10 bit |
| Program Memory Type | OTP |
Key Features
- Employs a RISC architecture with 33 single word/single cycle instructions for efficient processing.
- Contains 1.5kB OTP program memory enabling code protection and 1,000,000 erase/write EEPROM cycles.
- Operates with a supply voltage range of 2.5V to 5.5V and supports 5 programmable I/O pins.
- Offers power saving sleep mode with wake-up on pin change and an internal watchdog timer for reliable operation.
- Supports 10-bit ADCs and runs on a Harvard 8-bit instruction set architecture.
- Operating temperature range from -40°C to 85°C suitable for various industrial environments.
- RoHS Compliant ensuring environmental safety and regulatory compliance.
Product Description
Microchip PIC12C509A-04I/SM is a low-cost, high performance 8 bit PIC microcontroller designed for efficient embedded applications. Featuring a 4 MHz clock speed and 1.5kB OTP program memory, it is supplied in a compact 8-pin SOIC surface-mount package, making it ideal for space-constrained designs.
This microcontroller uses a reduced instruction set computing (RISC) architecture with 33 single-cycle instructions, ensuring fast and efficient code execution. The 12-bit instruction width allows for high code compression, optimizing memory usage significantly compared to similar 8 bit microcontrollers.
Included are essential features such as a power-on reset, device reset timer (DRT), watchdog timer (WDT) with independent RC oscillator, programmable code protection, and EEPROM with data retention of over 40 years. The device supports a wide operating voltage range from 2.5V to 5.5V and handles up to 5 programmable input/output pins.
The microcontroller provides a power-saving sleep mode with wake-up capabilities on pin changes and internal weak pull-ups on I/O pins. It also includes 10-bit analog-to-digital converters (ADC) for versatile sensing applications. Suitable for use in various industrial, electronic, and embedded system designs, it operates reliably across temperatures from -40°C to 85°C.
RISC architecture with 33 single-cycle instructions ensures rapid execution. 1.5kB OTP program memory with code protection and long EEPROM retention. Operating voltage range of 2.5V to 5.5V supports flexible power designs.
Watchdog timer and device reset timer for enhanced reliability. 10-bit ADC and 5 programmable I/O pins for versatile interfacing. Compact 8-pin SOIC package with dimensions 5.33 x 5.38 x 1.98 mm. RoHS Compliant for environmental safety.
This product fits well into applications such as consumer electronics, automotive electronics, industrial control, and other embedded systems requiring a compact and reliable microcontroller solution.
Explore related Microcontrollers and semiconductor components on EnvMart for comprehensive solutions in electronics design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz.
It features a program memory size of 1.5 kB, which is of the OTP type.
The operating voltage range is from 2.5V to 5.5V.
This microcontroller supports up to 5 programmable I/O pins.
The operating temperature range is from -40°C to 85°C.
It utilizes a Harvard 8-bit instruction set architecture with RISC design.
The dimensions are 5.33 mm in length, 5.38 mm in width, and 1.98 mm in height.
It supports 10-bit analog-to-digital converters (ADCs).
Yes, it includes one timer for operation.
It comes in a compact 8-pin SOIC surface-mount package.
Yes, it is RoHS compliant, ensuring environmental safety and regulatory compliance.
The EEPROM has a data retention period of over 40 years.
