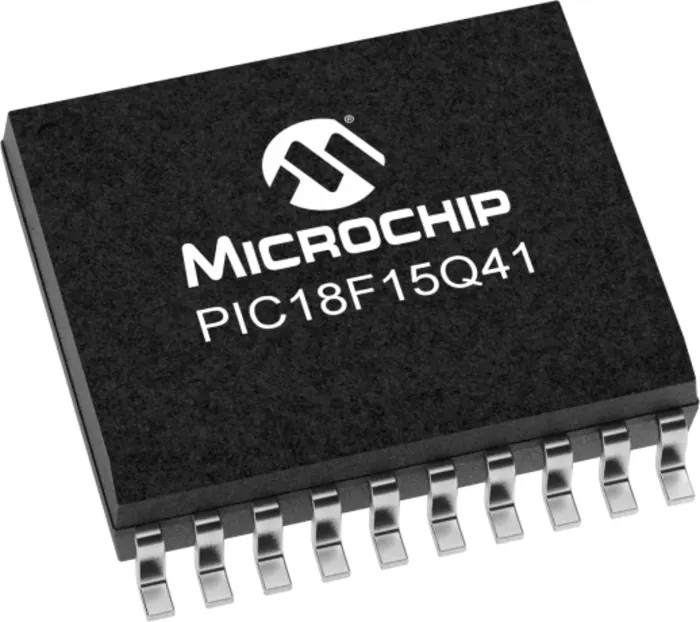

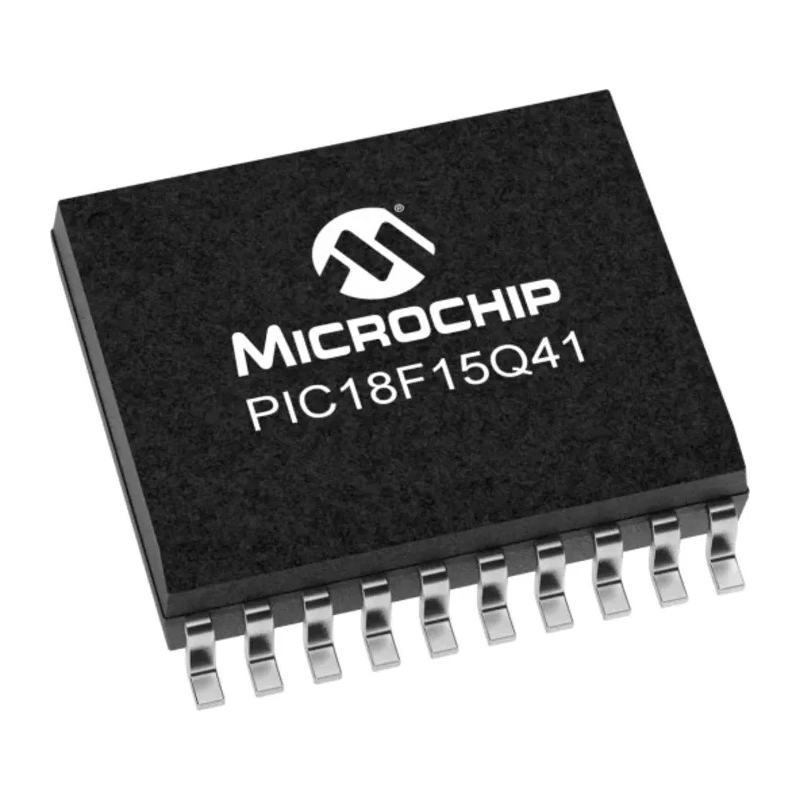

Microchip PIC18F15Q41-I/SO 8-bit PIC18F Microcontroller 64 MHz 32kB FLASH 20-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC18F15Q41-I/SO |
| Mount Type | Surface Mount |
| Series | PIC18 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Interface Type | I2C, SPI, UART |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC18F |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 2 x 8 Bit |
Key Features
- Built on PIC18F device core architecture for high performance.
- 32kB FLASH program memory with 4kB RAM size for applications.
- Supports I2C, SPI, and UART interface types.
- Operates with a supply voltage range of 1.8 V to 5.5 V.
- Includes 18 programmable I/Os and two 8-bit DACs for analog output.
- Features 12-bit ADCs and two analog comparators for precise analog measurements.
- Designed to operate between -40°C and 125°C for industrial environments.
- Includes five timers and three 16-bit dual PWMs providing six PWM outputs.
Product Description
The Microchip PIC18F15Q41-I/SO is an advanced 8-bit microcontroller with a PIC18F core, designed for embedded applications requiring real-time control and sensor interfacing. It delivers a maximum clock speed of 64 MHz, supporting complex processing tasks efficiently.
This microcontroller contains a 32kB FLASH program memory and 4kB RAM, providing sufficient storage for embedded firmware and data. The device supports multiple interfaces including I2C, SPI, and UART, enabling versatile communication options in industrial and commercial products.
Operating voltage ranges from 1.8 V minimum to 5.5 V maximum, making it suitable for low-power and battery-operated applications. The device is equipped with 18 programmable input/output pins, two 8-bit digital-to-analog converters (DACs), and twelve 12-bit analog-to-digital converters (ADCs), allowing for precise sensor data acquisition.
With an operating temperature range from -40°C to 125°C and RoHS compliance, this microcontroller is suitable for demanding environments in industrial automation, automotive, and consumer electronics. The 20-pin SOIC surface mount package enables compact PCB designs where space saving is critical.
The PIC18-Q41 family enhances design flexibility, featuring advanced analog peripherals such as on-chip operational amplifiers and four Direct Memory Access (DMA) controllers that increase data processing efficiency without burdening the CPU.
Built on PIC18F core architecture for high-performance embedded computing. 32kB FLASH and 4kB RAM support complex application requirements. Multiple communication interfaces including I2C, SPI, and UART provide connectivity options.
Wide operating voltage and temperature range enhance application versatility. Advanced analog peripherals including 12-bit ADCs and 8-bit DACs enable precise measurements. Surface mount SOIC 20-pin package supports compact device configurations.
Compliant with RoHS environmental standards.
Ideal for industrial control systems, automotive sensor interfaces, consumer electronics, robotics, and instrumentation, this microcontroller enables robust and efficient embedded system designs. Browse the Electronics & Electricals section at EnvMart for a full range of Microchip Microcontrollers and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz, allowing for efficient processing of complex tasks.
It features a program memory size of 32kB, providing ample space for embedded firmware.
This microcontroller supports I2C, SPI, and UART interface types for versatile communication options.
The operating voltage range is from 1.8 V to 5.5 V, making it suitable for low-power applications.
It includes 18 programmable input/output pins, allowing for flexible interfacing with other components.
This microcontroller operates within a temperature range of -40°C to 125°C, suitable for industrial environments.
It includes two 8-bit digital-to-analog converters (DACs) and twelve 12-bit analog-to-digital converters (ADCs) for precise measurements.
This model comes in a 20-pin SOIC surface mount package, ideal for compact PCB designs.
It includes five timers, which can be utilized for various timing applications in embedded systems.
Yes, this microcontroller is compliant with RoHS environmental standards.
The RAM size of this microcontroller is 4kB, providing sufficient memory for data storage during operation.
It is built on the PIC18F device core architecture, designed for high-performance embedded applications.
