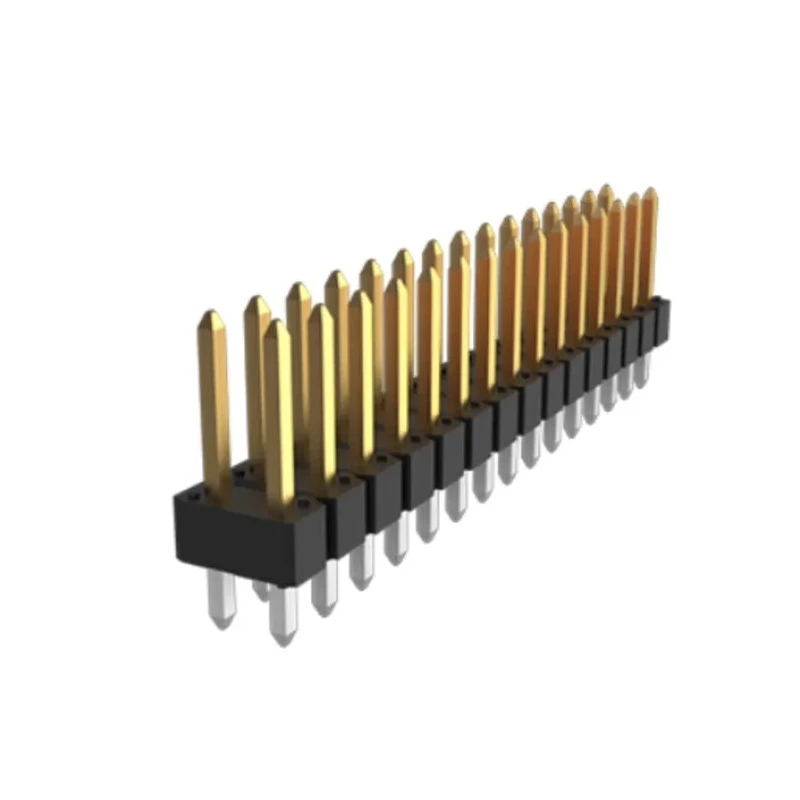

Amphenol Communications Solutions Bergstik Series Vertical Through Hole Pin Header, 18 Contacts, 2.54 mm 77313-118-18LF

Amphenol Communications Solutions 77313-118-18LF Vertical Through Hole Pin Header, featuring 18 male contacts arranged in 2 rows with a 2.54 mm pitch, offers robust board-to-board interconnect solutions for electronic devices and equipment.

Its housing is made from high temperature thermoplastic material, designed to withstand operating temperatures ranging from -65°C to 130°C. The phosphor bronze contacts with phosphor bronze plating ensure excellent conductivity and mechanical reliability. The header allows solder termination and is designed for through hole mounting with a vertical orientation.

Operating at a voltage rating of 1500 V and supporting a current of 3 A, this pin header complies with UL Approval E66906, guaranteeing safety and reliability in industrial and commercial environments.

With a mating pin length of 5.84 mm and tail pin length of 3.05 mm, it is suitable for mezzanine stacking applications, offering flexibility in building multi-layered circuit boards with various stack heights.

This unshrouded connector system supports board-to-board, wire-to-board, and cable-to-board connections, making it versatile for a wide range of electronic applications including telecommunications, computing, and industrial control systems.

Features an 18-contact, 2-row unshrouded design for versatile electronic connections. High temperature thermoplastic housing ensures durability under thermal stress. Phosphor bronze contacts with solder termination for enhanced electrical connection.

Vertical orientation with standard 2.54 mm pitch and row pitch for compatibility with standard PCBs. Voltage rating of 1500 V and current capacity of 3 A. Operating temperature range from -65°C to 130°C for extreme environment tolerance.

UL Approved (E66906) for product safety and compliance. Suitable for mezzanine applications with variable spacing height for stacking. Manufactured in France assuring premium quality manufacture.

Whether used in industrial automation, telecommunications, or electronic device assembly, this Amphenol Communications Solutions Bergstik Series pin header delivers reliable and flexible connectivity options. Browse more PCB headers and connectors on EnvMart to find compatible components and accessories.
