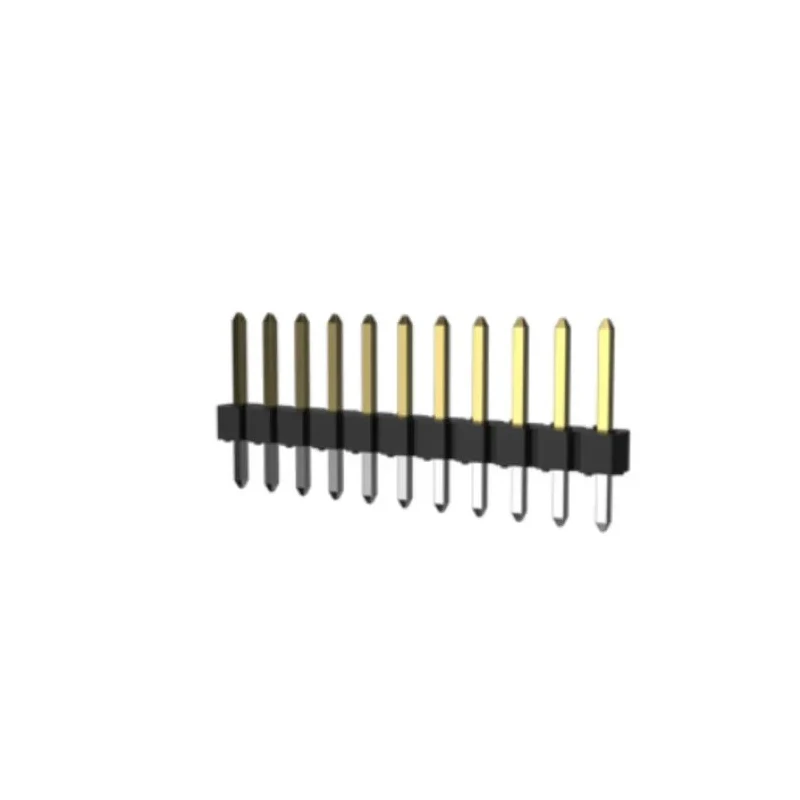

Amphenol Communications Solutions Bergstik Series Vertical Through Hole Pin Header, 10 Contact(s), 2.54 mm 77311-118-10LF

Amphenol Communications Solutions 77311-118-10LF Bergstik Series Vertical Through Hole Pin Header is a reliable PCB connector featuring 10 male contacts arranged in a single row with 2.54 mm pitch. It is constructed with high-temperature thermoplastic housing material and phosphor bronze contacts plated with phosphor bronze, designed for solder termination and through-hole mounting, making it suitable for diverse electronic and industrial applications.

Rated for a maximum current of 3 amperes and operating voltage of 1500 volts, this pin header supports robust electrical performance and thermal stability across a wide temperature range from -65°C to 130°C. Its vertical orientation and unshrouded design provide flexibility and ease of mating from the top or bottom.

The header is compliant with UL standard E66906, ensuring safety and reliability in demanding environments. With a tail pin length of 3.05 mm and mating pin length of 5.84 mm, it offers secure mechanical engagement and reliable signal integrity.

This board-to-board connector is ideal for electronic equipment, communications devices, and industrial machinery requiring durable and precise interconnection solutions. Manufactured in France, it meets stringent quality benchmarks for performance and longevity.

Supports a current rating of 3 amperes suitable for moderate power applications. Features phosphor bronze male contacts with phosphor bronze plating for excellent conductivity and durability. Constructed with a high-temperature thermoplastic housing compatible with reflow soldering processes.

Designed as an unshrouded connector with vertical orientation and through-hole mount type. Operates reliably in temperatures from -65°C to 130°C, allowing use in diverse environments. Voltage rating of 1500 volts ensures robust electrical insulation for industrial and communication equipment.

Offers a pin pitch and row pitch of 2.54 mm, compatible with standard PCB layouts. Pin lengths include a tail pin length of 3.05 mm and mating pin length of 5.84 mm for secure connections. UL approved under standard E66906 certifying safety and compliance.

Manufactured in France, ensuring quality standards. Explore the extensive range of PCB Connectors & Wire Housings at EnvMart for compatible and complementary products supporting your design and manufacturing needs.
