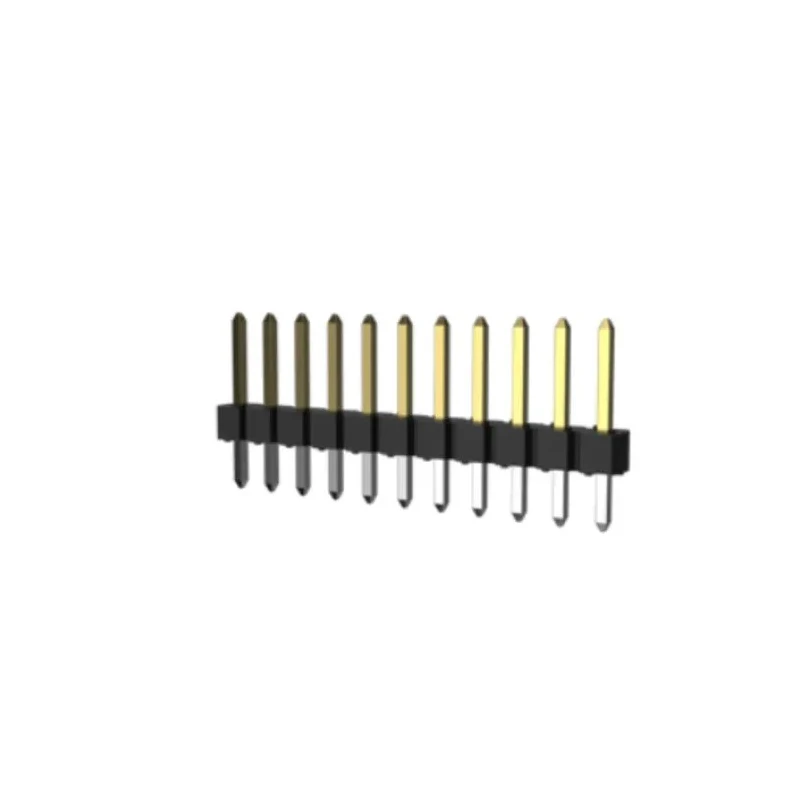

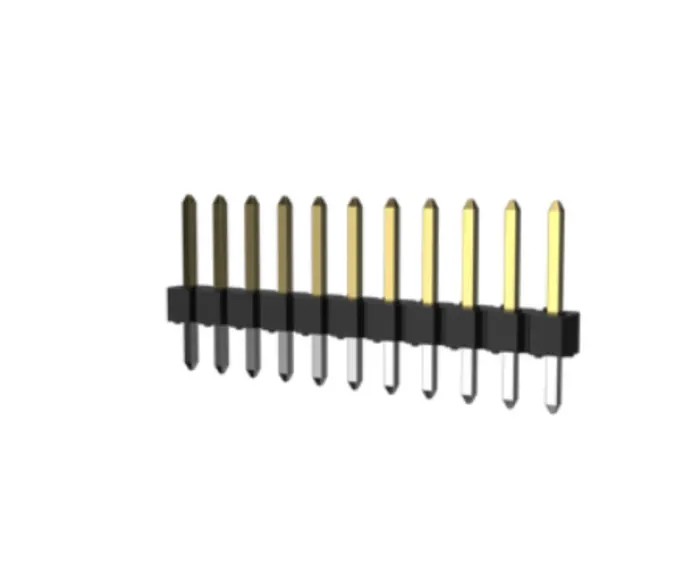

Amphenol Communications Solutions Bergstik Series Vertical Through Hole Pin Header 7 Contacts 2.54 mm Pitch 1 77311-118-07LF

Amphenol Communications Solutions model 77311-118-07LF is a Bergstik Series vertical through hole pin header designed for board-to-board interconnect solutions. The pin header features 7 contacts arranged in a single row with a precise 2.54 mm pitch for reliable and efficient electrical connections in electronic assemblies.

Constructed from high temperature thermoplastic housing material, this unshrouded header provides excellent mechanical stability and thermal resistance compatible with reflow soldering processes. The phosphor bronze contact material and plating ensure superior conductivity and long-term durability under varying electrical loads.

Operating reliably within temperatures from -65°C to 130°C, this pin header supports a voltage rating of 1500V and a current capacity of 3A, making it suitable for a wide range of industrial, communication, and electronic applications.

The through hole mount type combined with vertical orientation allows for secure attachment to printed circuit boards. With a tail pin length of 3.05 mm and a mating length of 5.84 mm, the header guarantees stable and high-quality electrical connections.

The product complies with UL Approval E66906, assuring safety and performance standards required in rigorous manufacturing environments. This Bergstik Series header is ideal for applications requiring flexible stacking heights and dual entry for mating from top or bottom, enhancing mezzanine application options.

Assembled in France, it reflects Amphenol's commitment to quality and precision in connector solutions for electronics industries. Features a vertical, unshrouded design for flexible connectivity. Offers a current rating of 3A with 7 contacts in one row.

Constructed with thermoplastic housing and phosphor bronze contacts. Rated for 1500V operating voltage and temperature range from -65°C to 130°C. Complies with UL Approval E66906 for safety standards. Through hole mounting ensures robust PCB attachment.

Mating pin length provides secure electrical connection. Explore more PCB connectors and headers from Amphenol Communications Solutions at EnvMart to meet your industrial and electronic component needs.
