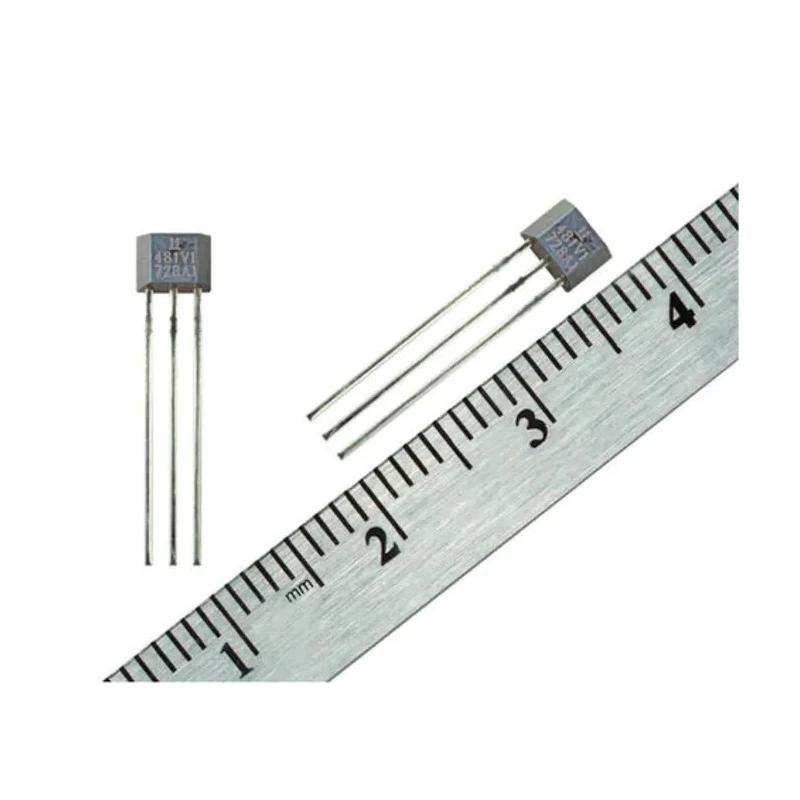

Honeywell Technologies 3 Axis Through Hole Back Biased Hall Effect Sensor 4V-24V TO-92 Package VG481V1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell Technologies |
| Height | 3mm |
| Length | 4.6mm |
| Model | VG481V1 |
| Technology | Back Biased Hall-effect |
| Sensor Type | Hall Effect |
| Width | 1.52mm |
| Mount Type | Through Hole |
| Series | VG481V1 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-92 |
| Minimum Operating Temperature | -40°C |
| Number of axis | 3 |
| Standards/Approvals | AEC-Q100 (Grade 0) |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 Grade 0 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 4V |
| Supply Current | 10mA |
| Magnetic Type | Hall |
| Maximum Frequency Response | 10000Hz |
| Minimum Frequency Response | 0Hz |
Key Features
- Back Biased Hall-effect technology ensures accurate magnetic field sensing.
- Supports a maximum frequency response of 10,000 Hz for high-speed detection.
- Wide operating temperature range from -40°C to 150°C for demanding environments.
- Compact TO-92 package with 3 pins facilitates through-hole mounting.
- Incorporates internal voltage regulation and short circuit protection circuits.
- Automotive grade AEC-Q100 Grade 0 standard certified for reliability.
- Supply current of 10 mA, optimized for low power consumption.
Product Description
Honeywell Technologies VG481V1 3 Axis Through Hole Hall Effect Sensor is a high precision sensor IC designed for detecting speed of ferrous gear tooth target wheels. It operates with a supply voltage range from 4V to 24V, housed in a compact TO-92 package with through-hole mount and 3 pins, suitable for integration into various electronic assemblies.
This sensor contains a back biased Hall-effect element combined with a dual peak detecting circuit, voltage regulator, clock/oscillator, amplifier, internal peak/valley track and hold circuits, comparator, and an open collector output stage, providing robust signal processing capabilities. The device offers protection from abnormal operation at low voltage and short circuit conditions, enhancing operational reliability in industrial and automotive applications.
The VG481V1 supports a maximum frequency response of 10,000 Hz and functions accurately across a wide temperature range of -40°C to 150°C. It conforms to the AEC-Q100 Grade 0 automotive standard, making it ideal for automotive, industrial, and laboratory use cases requiring precise motion sensing and speed detection.
Back Biased Hall-effect technology ensures precise magnetic field detection. Wide supply voltage from 4V to 24V supports versatile deployment. Robust internal circuitry includes voltage regulation and short circuit protection.
Compact TO-92 through hole package with 3 pins simplifies PCB mounting. Operates reliably across -40°C to 150°C temperature range. Qualified to AEC-Q100 Grade 0 automotive standards for quality and durability. Low supply current of 10 mA optimizes power consumption.
Physical dimensions: length 4.6 mm, height 3 mm, width 1.52 mm.
This Hall Effect Sensor VG481V1 by Honeywell Technologies is widely used in industrial automation, automotive speed measurement, motor control, and motion detection applications. It is suitable for integration in power electronics, HVAC systems, manufacturing instrumentation, and laboratory equipment, offering precise and reliable sensor performance. The device is supplied in bags, ready for insertion into machinery, enhancing production efficiency.
Discover more Hall Effect Sensors and Sensor ICs for your industrial and electronic projects with EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 4V to 24V.
It supports a maximum frequency response of 10,000 Hz, allowing for high-speed detection.
This unit operates reliably across a wide temperature range of -40°C to 150°C.
The sensor measures in 3 axes, making it suitable for various motion detection applications.
It is housed in a compact TO-92 package, which facilitates through-hole mounting.
This model is certified to the AEC-Q100 Grade 0 automotive standard, ensuring reliability for automotive applications.
The supply current for this sensor is 10 mA, optimized for low power consumption.
The sensor has a height of 3 mm and a width of 1.52 mm.
It utilizes Back Biased Hall-effect technology for accurate magnetic field sensing.
This sensor is widely used in automotive speed measurement, industrial automation, motor control, and motion detection applications.
Yes, it incorporates internal voltage regulation and short circuit protection circuits to enhance operational reliability.
The length of this model is 4.6 mm, making it compact for various installations.
