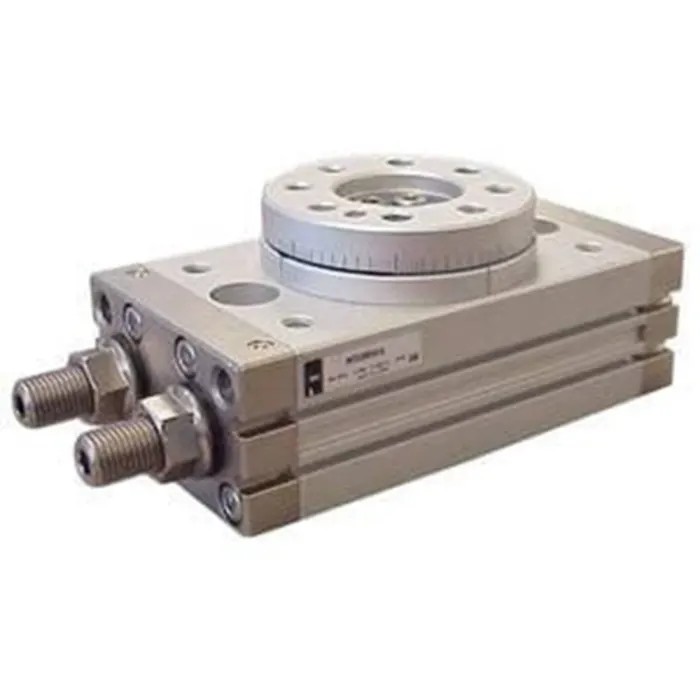

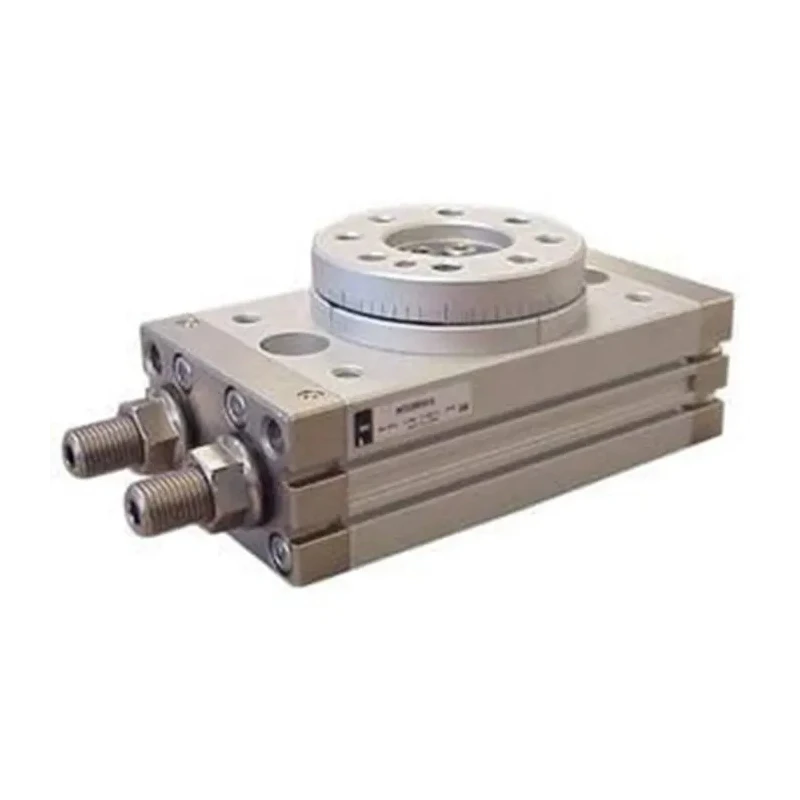

SMC Pneumatic Rotary Actuator MSQ Series 10mm Bore, 190° Angle of Rotation MSQB30A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Height | 47mm |
| Length | 109.7mm |
| Model | MSQB30A |
| Width | 55.4mm |
| Series | MSQ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | 0°C |
| Bore Diameter | 10mm |
| Standards/Approvals | RoHS |
| Port Thread Size | M5 |
| Angle of Rotation | 190° |
| SMC MSQ Series Pneumatic Rotary Actuator, 190° Rotary Angle, 21mm BoreBrand | SMC |
Key Features
- The actuator is based on a rack-and-pinion style rotary table mechanism.
- Compact design ideal for material transfer and rotary motion tasks.
- Incorporates load bearings and enables direct load mounting.
- Adjustment is possible from one direction for operational flexibility.
- Auto switch capable to enhance automation integration.
- Operates reliably within 0°C to 60°C temperature range.
- Port thread size is M5 for secure pneumatic connections.
- Manufactured in Japan ensuring quality and standards compliance.
Product Description
SMC MSQB30A Pneumatic Rotary Actuator is a compact rotary table actuator with a 10mm bore diameter and a 190 degrees angle of rotation. It is engineered based on a rack-and-pinion style rotary mechanism suitable for precise and reliable rotary motion in industrial applications, including material transfer operations.
This actuator incorporates load bearings which provide enhanced stability and allows direct load mounting, making it highly versatile for use in automated pneumatic systems.
The design supports adjustment from a single direction, simplifying setup and maintenance. Additionally, it is auto switch capable, enabling seamless integration with control systems for monitoring and automation.
The unit is constructed to operate effectively within an environmental temperature range of 0°C to 60°C and employs an M5 port thread size, suitable for most pneumatic circuit connections. Its compact dimensions (Length 109.7mm, Width 55.4mm, Height 47mm) allow for installation in constrained spaces.
Manufactured in Japan by SMC, this rotary actuator complies with RoHS standards ensuring environmental and safety regulations conformance. The actuator utilizes a rack and pinion style rotary table basic type mechanism. Seven bore sizes are available in the MSQ series for a range of application needs.
It permits direct load mounting thanks to its robust construction and load bearing design. Adjustment and operation can be carried out from one direction to enhance ease of use. Auto switch capability facilitates feedback for automation and control systems.
Compact dimensions suitable for integrating into various pneumatic systems. Operating temperature range supports diverse industrial environments.
This product is suitable for use in industrial, manufacturing, automation, laboratory, and pneumatic hydraulic tool applications. It fits well within the pneumatic cylinders and actuators category for material handling and rotary motion control.
Explore more from the SMC range and related pneumatic products available on EnvMart to optimize your industrial machine and automation setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMC Pneumatic Rotary Actuator MSQB30A has an angle of rotation of 190 degrees.
This actuator features a bore diameter of 10mm.
It operates effectively within a temperature range of 0°C to 60°C.
The dimensions of this model are 109.7mm in length, 55.4mm in width, and 47mm in height.
It utilizes a rack-and-pinion style rotary table mechanism for precise rotary motion.
The port thread size for this actuator is M5, suitable for secure pneumatic connections.
Yes, it is auto switch capable, which enhances its integration with automation and control systems.
Yes, it incorporates load bearings that enable direct load mounting, enhancing its versatility.
The actuator complies with RoHS standards, ensuring it meets environmental and safety regulations.
This model is suitable for industrial, manufacturing, automation, laboratory, and pneumatic hydraulic tool applications.
Adjustment can be made from one direction, simplifying setup and maintenance.
This actuator is manufactured in Japan, ensuring quality and standards compliance.
