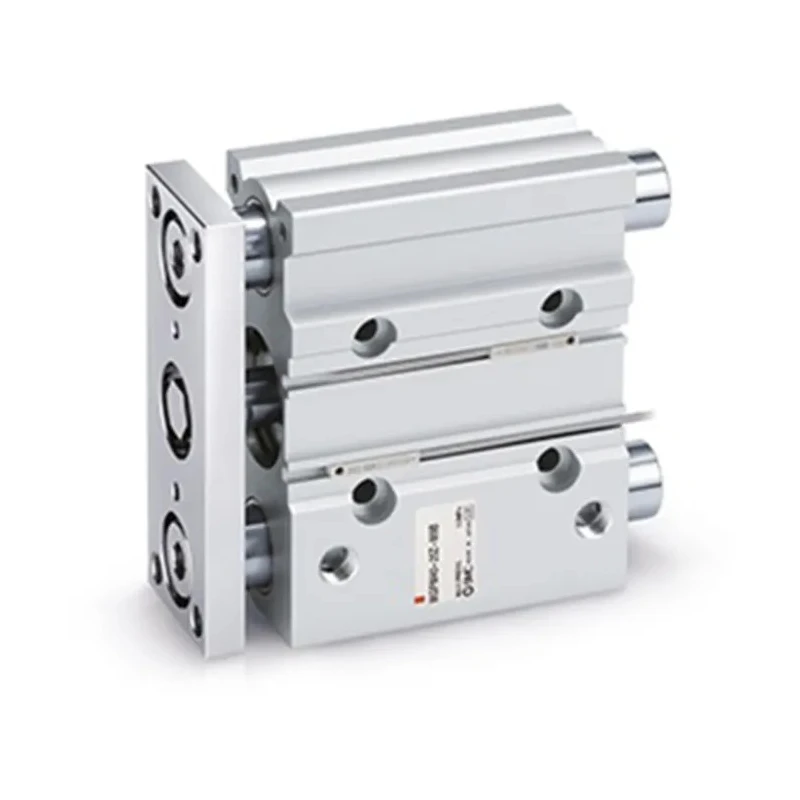

SMC Guide Cylinder 25mm Bore, MGP Series, 30mm Stroke Length, Double Acting, Aluminium Alloy Body MGPL25TF-30Z

The SMC MGPL25TF-30Z guide cylinder is a compact pneumatic actuator featuring a 25mm bore and 30mm stroke length designed for precise controlled linear motion in automated systems. Its double acting rod movement with integrated side guidance reduces shaft deflection and maintains alignment under lateral loads.

Constructed with a lightweight aluminium alloy body, this cylinder simplifies mounting and reduces the overall unit mass. The ball bushing guide system ensures smooth lateral load handling and durability during operation. Rubber bumpers on both ends absorb energy at stroke limits, preventing shock damage to the cylinder and connected machinery.

Operating at a maximum pressure of 1 MPa, the cylinder is suitable for typical pneumatic supply pressures encountered in industrial automation and manufacturing settings. It reliably functions within a temperature range of -10°C to 60°C, accommodating standard workshop and factory environments.

The piston rod uses a G-threaded connection standard to facilitate easy mounting of industrial fittings and accessories. The maximum piston speed of 500mm/s supports rapid short-stroke cycles critical for high throughput pick-and-place and part gating tasks.

Typical applications include pick-and-place stages in electronics assembly, end-of-line part gating in automated cells, fixture actuation in mechanical testing rigs, and small product orientation on conveyors. Its compact design is ideal for precise short-travel positioning requirements in diverse industrial, manufacturing, and electronics automation use cases.

Aluminium alloy body reduces weight and simplifies mounting. Double acting action delivers consistent push-pull force. Rubber bumpers cushion impact at stroke ends. Maximum operating pressure of 1 MPa suits pneumatic lines.

Slide bearing guide maintains accurate alignment under lateral loads. G-threaded piston rod provides standard industrial fittings interface. Temperature range of -10°C to 60°C covers most factory environments. Maximum piston speed of 500mm/s allows fast cycling.

Compact 30mm stroke for short precise movements. Weighs 0.96 kg for load calculations.
