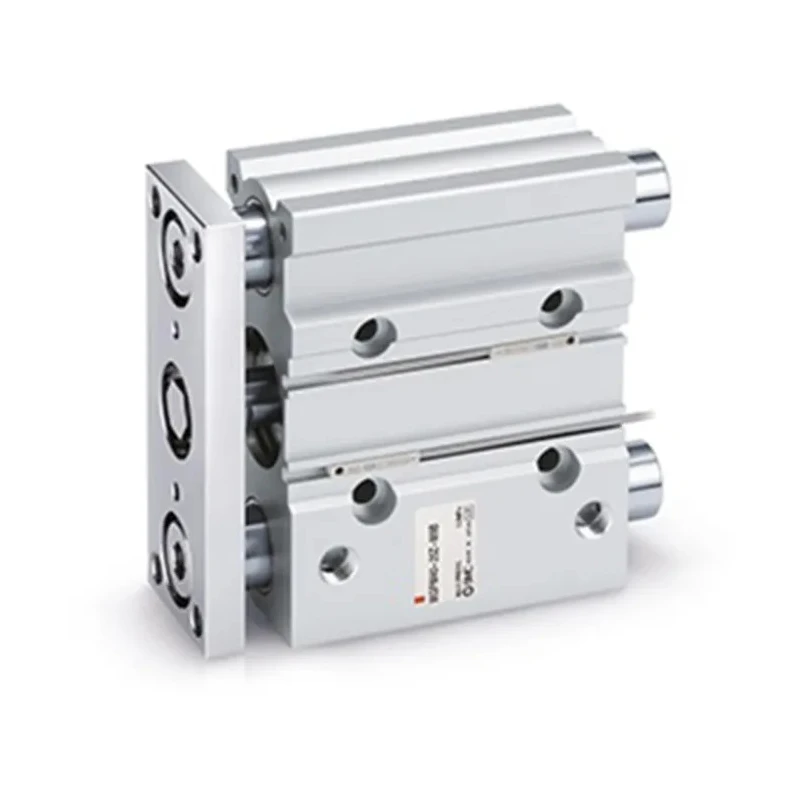

SMC Pneumatic Guided Cylinder 25mm Bore 50mm Stroke Double Acting Aluminium Alloy Body MGPL25TF-50Z

SMC MGPL25TF-50Z Pneumatic Guided Cylinder offers an industrial-grade solution for precise linear motion control in automation and machinery applications. This guided cylinder features a 25mm bore diameter with a 50mm stroke length, delivering consistent force for controlled push-pull operations. The double acting design allows both extension and retraction powered by pneumatic pressure up to 1 MPa.

The aluminium alloy body provides a lightweight yet durable housing suitable for integration in demanding industrial environments. Rubber bumpers at both ends absorb shocks protecting internal components and ensuring longevity. The slide bearing and ball bushing guide system enable smooth and reliable lateral restraint, supporting piston speeds up to 500 mm/s for high cycle applications requiring rapid reciprocation.

Operating across a temperature range from -10°C to 60°C, this guide cylinder is suited for indoor and controlled industrial settings including manufacturing lines, electrical panel assembly, and mechanical workshops. The piston rod features a G-standard thread, compatible with a wide range of fittings and sensors, enhancing versatility.

Common applications include pick-and-place modules on automation lines, PCB handling tasks requiring guided travel, actuator use in electrical panel assembly, and fixture positioning in mechanical workshops. The assembly weighs approximately 1.2 kg, facilitating precise control of inertial loads during dynamic motion control scenarios.

Constructed with aluminium alloy body for durability and weight reduction. Double acting configuration enables both extension and retraction movements. Suitable for pneumatic systems operating at a maximum pressure of 1 MPa.

Rubber bumper cushioning protects internal parts from impact damage. Slide bearing and ball bushing guide ensure smooth lateral movement at high speeds. Designed for operation in environments from -10°C to 60°C. Uses G-standard piston rod thread compatible with standard fittings.

Compact 25mm bore and 50mm stroke ideal for confined spaces.

This SMC Pneumatic Guided Cylinder is an excellent choice for industrial automation, manufacturing, laboratory mechanical tasks, and fluid power systems requiring controlled, repeatable linear motion. Explore more pneumatic cylinders and actuators in the Industrial Tools & Equipment category at EnvMart for complementary solutions.
