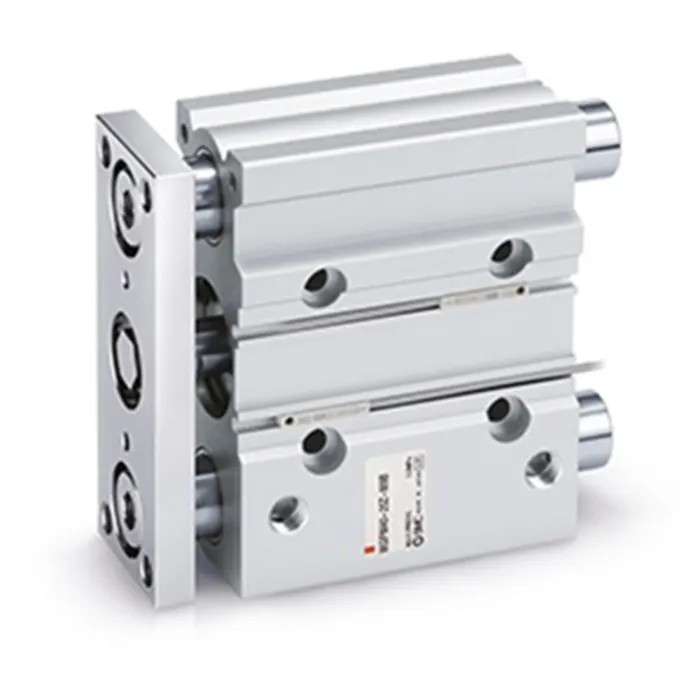

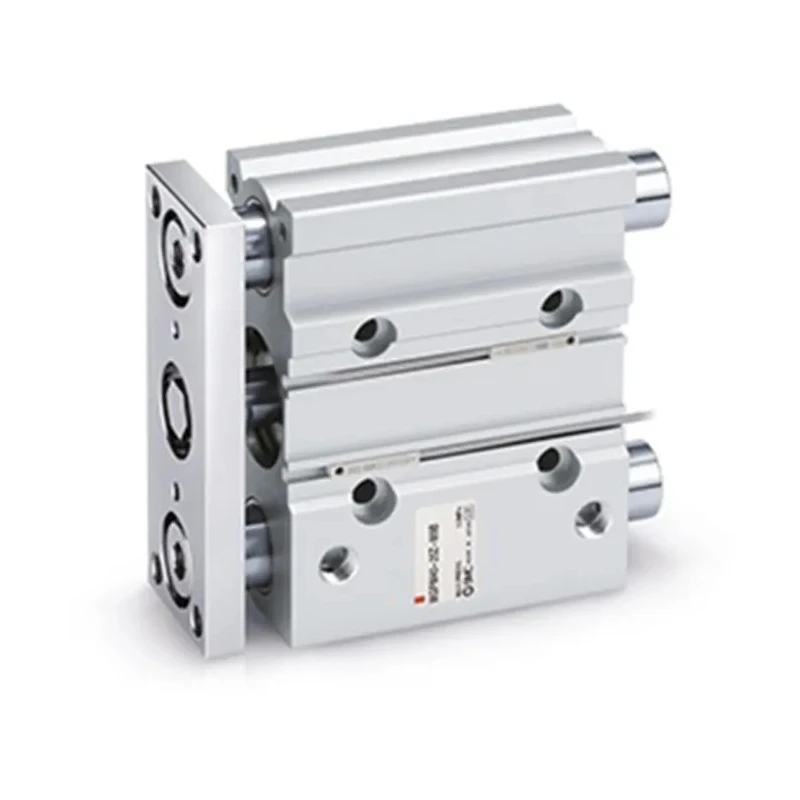

SMC Guide Cylinder 50mm Bore, 25mm Stroke, Aluminium Alloy Body, Double Acting, Rubber Bumper Cushion MGPL50TF-25Z
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Model | MGPL50TF-25Z |
| Gross Weight | 2.74kg |
| Series | MGP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 25mm |
| Bore Diameter | 50mm |
| Rod Type | Double Acting |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Guide Type | Slide Bearing |
| Piston Rod Thread Standard | G |
Key Features
- The aluminium alloy body provides a lightweight yet durable structure.
- Double acting mechanism ensures bi-directional force application.
- Rubber bumpers cushion the piston to reduce impact and vibration.
- Ball bushing guide offers accurate lateral control and reduces wear.
- Supports maximum operating pressure of 1 MPa and piston speed up to 500 mm/s.
- Operates safely within temperature range of -10°C to 60°C.
- Compact design facilitates installation in tight spaces.
- Uses G thread standard piston rod for reliable fixture attachment.
Product Description
SMC MGPL50TF-25Z Guide Cylinder is a compact pneumatic guided cylinder engineered for precise linear motion in automated industrial systems. Featuring a 50mm bore diameter and a 25mm stroke length, this aluminium alloy bodied cylinder provides reliable performance with reduced weight for enhanced system efficiency.
This model operates as a double-acting cylinder delivering force in both directions, suitable for cyclic applications requiring controlled reciprocation. Rubber bumpers at both ends cushion the piston, mitigating impact and vibration during rapid movement.
The ball bushing guide design ensures excellent lateral stability and reduces wear on the piston rod under side loads, promoting long-term durability and accuracy. It supports a maximum operating pressure of 1 MPa and a piston speed rating of 500 mm/s, meeting the demands of rapid linear actuation.
Operating temperatures range from -10°C to 60°C, allowing usage in various industrial environments while maintaining sealing and cushioning performance. The piston rod thread standard is G, facilitating secure and standardized connections with external fixtures or tooling.
This guide cylinder is ideal for applications including pick-and-place positioning in assembly lines, edge guidance in PCB handling, test jig operations requiring repeatable short strokes, and alignment tasks in conveyor systems. Its compact size simplifies integration into space-constrained pneumatic systems.
The aluminium alloy body provides a lightweight yet durable structure. Double acting mechanism ensures bi-directional force application. Rubber bumpers cushion the piston to reduce impact and vibration. Ball bushing guide offers accurate lateral control and reduces wear.
Supports maximum operating pressure of 1 MPa and piston speed up to 500 mm/s. Operates safely within temperature range of -10°C to 60°C. Compact design facilitates installation in tight spaces. Uses G thread standard piston rod for reliable fixture attachment.
Choose this SMC MGPL50TF-25Z guide cylinder for durable and precise pneumatic motion control in industrial, manufacturing, testing, and material handling applications. Explore more Pneumatic Guided Cylinder products and SMC components in EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this guide cylinder is 50mm.
The stroke length of the SMC MGPL50TF-25Z is 25mm.
It supports a maximum operating pressure of 1 MPa.
The maximum piston speed is rated at 500 mm/s.
It operates safely within a temperature range of -10°C to 60°C.
This model uses rubber bumpers for cushioning to reduce impact and vibration.
The body of the SMC MGPL50TF-25Z is made from aluminium alloy.
It operates as a double acting cylinder, providing force in both directions.
The piston rod uses a G thread standard for reliable fixture attachment.
This guide cylinder features a slide bearing guide type for accurate lateral control.
The gross weight of this guide cylinder is 2.74 kg.
This model is manufactured in Japan.
