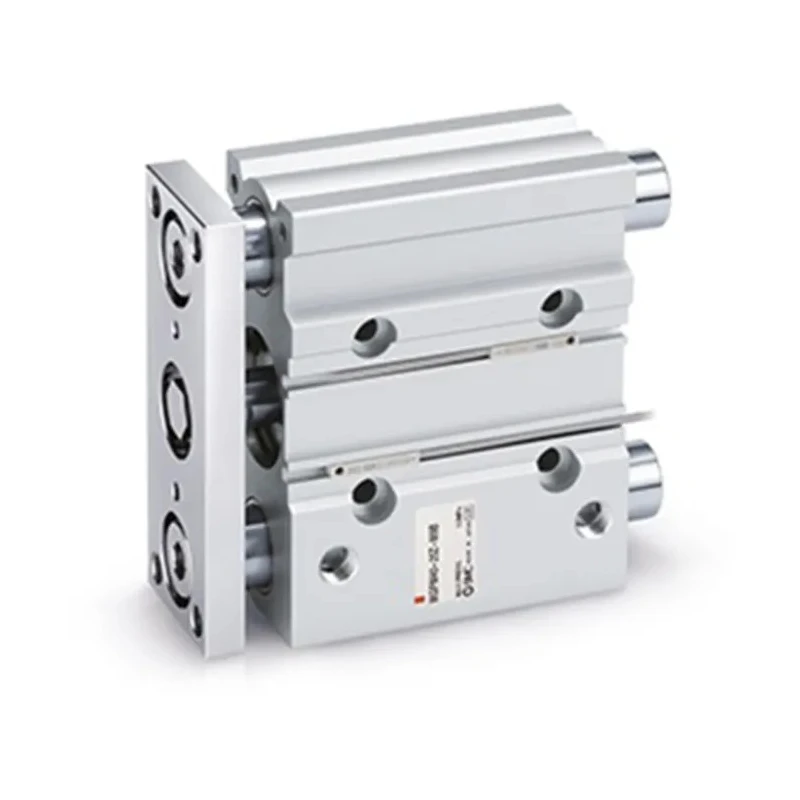

SMC Guide Cylinder 25mm Bore Aluminium Alloy Body Double Acting 150mm Stroke MGPL25TF-150Z
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Model | MGPL25TF-150Z |
| Gross Weight | 2.18kg |
| Series | MGP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 150mm |
| Bore Diameter | 25mm |
| Rod Type | Double Acting |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Guide Type | Slide Bearing |
| Piston Rod Thread Standard | G |
Key Features
- 25mm bore size ensures compact force delivery suited for tight spaces.
- 150mm stroke length enables medium travel ideal for various assembly tasks.
- Aluminium alloy body provides corrosion resistance and light-weight construction.
- Double-acting operation allows controlled extension and retraction motions.
- Ball bushing slide bearing guides lateral load smoothly and maintains alignment.
- Rubber bumper cushioning reduces vibration and impact at stroke ends.
- Operates reliably within -10°C to 60°C temperature range for versatile industrial environments.
- Maximum operating pressure rated at 1 MPa with pressure regulation recommended.
Product Description
SMC MGPL25TF-150Z Guide Cylinder is a precision pneumatic actuator with a 25mm bore and 150mm stroke length, designed for industrial automation and mechanical systems requiring guided linear motion and constrained lateral forces. Its aluminium alloy body offers lightweight corrosion resistance, while the ball bushing slide bearing ensures smooth lateral load handling during operation.
The double-acting design enables precise and controllable extend and retract movements, making it suitable for assembly, packaging, and material handling applications. Rubber bumper cushions minimize end-impact vibration, enhancing the longevity and performance of the cylinder.
Operating reliably between -10°C and 60°C, and rated for a maximum pressure of 1 MPa, this cylinder is ideal for electronics manufacturing pick-and-place modules, panel positioning in electrical assembly lines, conveyor transfer stations, and automated mechanical jigs.
The piston rod features a G-standard thread allowing compatibility with common mounting fittings, facilitating integration into various industrial setups. 25mm bore size for compact force delivery. 150mm stroke length for medium travel.
Aluminium alloy corrosion-resistant body. Double-acting pneumatic operation. Ball bushing slide bearing guide for lateral stability. Rubber bumper cushioning reduces vibration. Temperature range: -10°C to 60°C. Maximum operating pressure: 1 MPa.
G thread piston rod for standard mounting. Suitable for pick-and-place, conveyors, and test fixtures.
This guide cylinder is a reliable component for industrial automation, manufacturing, laboratory automation, and material handling systems. Browse EnvMart's Pneumatic Guided Cylinder category to explore more quality pneumatic components and related automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this guide cylinder is 25mm.
The stroke length of the SMC MGPL25TF-150Z is 150mm.
This model has a maximum operating pressure rated at 1 MPa.
The body of the SMC MGPL25TF-150Z is made from aluminium alloy, providing corrosion resistance.
It operates reliably within a temperature range of -10°C to 60°C.
The cylinder features rubber bumper cushioning that reduces vibration and impact at the stroke ends.
This model uses a double-acting action type, allowing controlled extension and retraction motions.
It utilizes a slide bearing guide for smooth lateral load handling and stability.
The gross weight of this guide cylinder is 2.18 kg.
The piston rod features a G-standard thread, allowing compatibility with common mounting fittings.
This guide cylinder is suitable for applications such as pick-and-place modules, panel positioning, and conveyor transfer stations.
This model belongs to the MGP series of guide cylinders.
