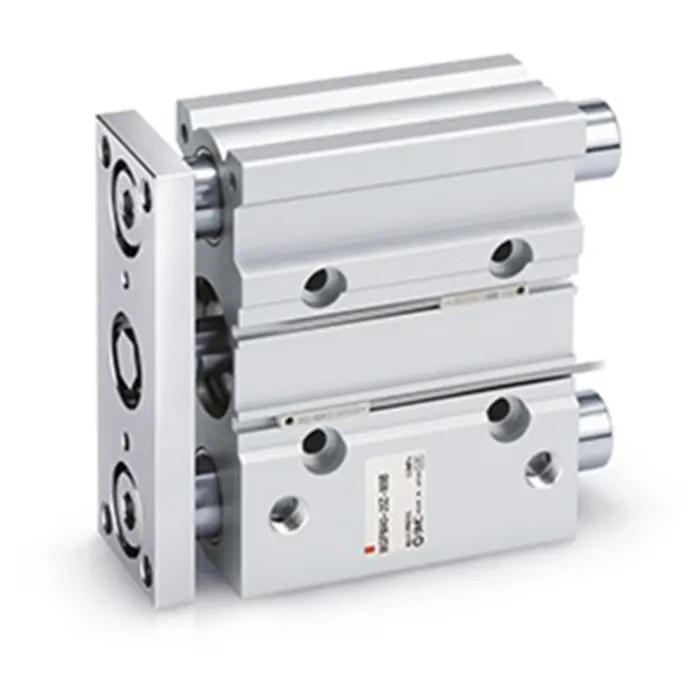

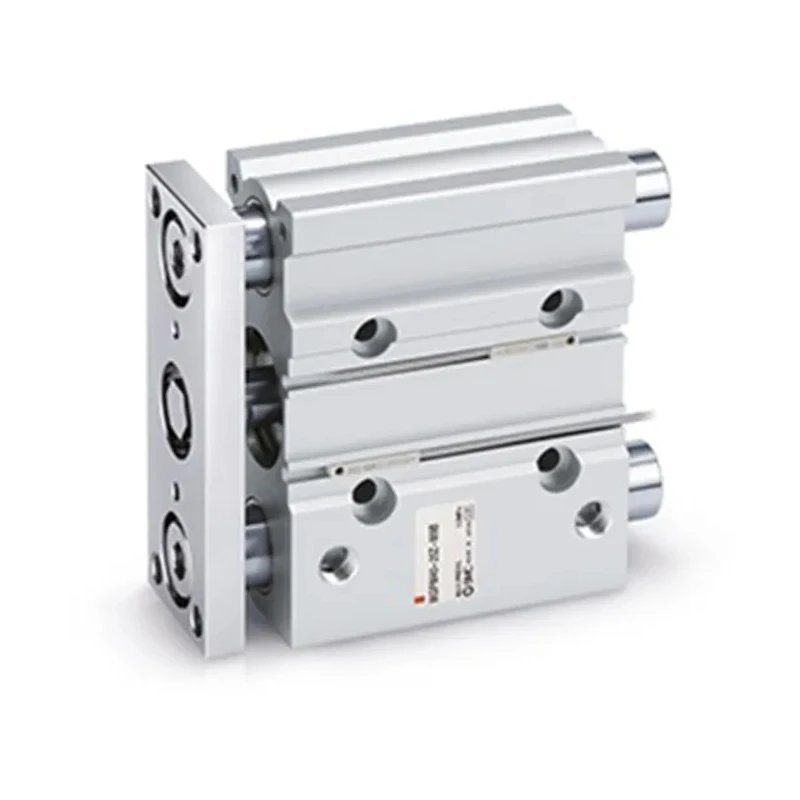

SMC Guide Cylinder 16mm Bore Aluminium Alloy Body MGP Series 40mm Stroke Double Acting MGPL16-40Z
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Model | MGPL16-40Z |
| Gross Weight | 479g |
| Series | MGP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 40mm |
| Bore Diameter | 16mm |
| Rod Type | Double Acting |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Guide Type | Slide Bearing |
| Piston Rod Thread Size | M5 x 0.8 |
Key Features
- Constructed with a lightweight aluminium alloy body for reduced mass and easy installation.
- Double acting operation with integrated slide bearing guide for accurate positioning.
- Equipped with rubber bumpers for cushioning and noise reduction.
- Designed to operate at a maximum pressure of 1 MPa and piston speed up to 500 mm/s.
- Includes an M5 x 0.8 threaded piston rod for easy mounting.
- Suitable for industrial automation tasks including pick-and-place and actuator applications.
- Operating temperature range from -10°C to 60°C to withstand factory environments.
- Compact size allows integration without adding significant load; weight is 479g.
Product Description
SMC MGPL16-40Z guide cylinder from the MGP series offers a compact and precise pneumatic guided linear motion solution with a 16mm bore and 40mm stroke length.
Its aluminium alloy body reduces system weight aiding effortless installation and reduced inertia in automated equipment. The double acting cylinder includes a slide bearing guide that minimizes lateral play to ensure precise positioning in industrial applications.
The design incorporates rubber bumpers on both ends for cushioning impact and lowering operational noise during high-speed cycling up to 500 mm/s. It operates reliably at a maximum pressure of 1 MPa and works efficiently within a temperature range of -10°C to 60°C suitable for typical factory environments.
The piston rod is externally threaded with M5 x 0.8 dimensions allowing straightforward integration with standard metric fittings and actuator components.
This guide cylinder is ideal for use in applications requiring constrained and guided strokes such as pick-and-place modules, semiconductor handling, electrical panel positioning, and mechanical tooling fixtures.
Lightweight aluminium alloy body for ease of use and system mass reduction. Double acting pneumatic operation for reliable bi-directional actuation. Integrated slide bearing guidance provides precise linear movement. Rubber bumpers for effective cushioning and noise control.
Max operating pressure of 1 MPa with piston speeds up to 500 mm/s. M5 x 0.8 threaded piston rod for flexible attachments and mounts. Operates effectively from -10°C to 60°C ambient temperatures. Weight of 479 grams supports easy integration.
This SMC guide cylinder is widely used in industrial automation, manufacturing, and laboratory environments for tasks demanding exact linear motion control. Browse our Pneumatic Guided Cylinder selection and SMC brand products on EnvMart for more industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the SMC MGPL16-40Z guide cylinder is 1 MPa.
This model has a stroke length of 40mm.
The bore diameter of the SMC MGPL16-40Z is 16mm.
It features rubber bumpers for effective cushioning and noise control.
The weight of this guide cylinder is 479 grams.
It operates effectively within a temperature range of -10°C to 60°C.
This unit utilizes a double acting action type for reliable bi-directional actuation.
The piston rod is a double acting type with an M5 x 0.8 threaded size for easy mounting.
The body of this guide cylinder is constructed from aluminium alloy.
It uses a slide bearing guide for precise linear movement.
This model is suitable for industrial automation tasks such as pick-and-place and actuator applications.
The country of origin for this guide cylinder is China.
