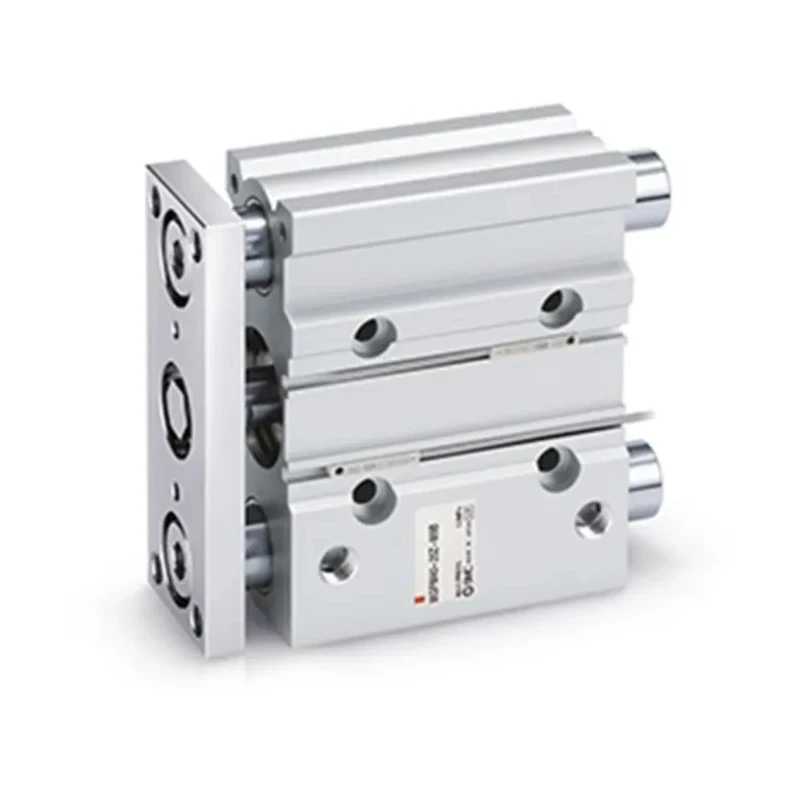

SMC Guide Cylinder 12mm Bore Double Acting Aluminium Alloy Body 100mm Stroke MGPM12-100Z

The SMC MGPM12-100Z guide cylinder is engineered for compactness and lightweight applications with a 12mm bore diameter and 100mm stroke length. This double acting pneumatic guided cylinder features an aluminium alloy body, offering durability and corrosion resistance in demanding industrial environments.

Designed to deliver precise guided movement with rotational accuracy of ±0.03°, the MGPM12-100Z cylinder supports a maximum operating pressure of 1 MPa and maximum piston speed of 500 mm/s. The rubber bumper cushioning ensures smooth operation and extends component life by absorbing shock.

This cylinder can be adapted easily with three types of bearings available: slide bearing, ball bushing, and high precision ball bushing, enabling users to select the optimal bearing for their specific use case. Mounting flexibility is provided by four distinct options: top mounting, side mounting, bottom mounting, and T-slot side mounting.

Operating in a temperature range from -10°C to 60°C, this compact guide cylinder is suitable for various industrial applications including automation, mechanical machinery, pneumatic systems, and fluid power tools. The piston rod thread size is M5 x 0.8, and the guide type uses slide bearings to ensure precise and stable movement.

Compact design reduces weight and space requirements. High precision guidance with ±0.03° rotational accuracy. Rubber bumper cushioning for smooth and quiet operation. Multiple bearing and mounting options for application versatility.

Durable aluminium alloy body suitable for harsh environments. Wide operating temperature range from -10°C to 60°C. Double acting cylinder ideal for pneumatic systems. Supports a maximum pressure of 1 MPa with piston speeds up to 500 mm/s.

Suitable for industrial automation, manufacturing, HVAC, and laboratory applications.

This product is made in China and supplied new, meeting quality standards vital for industrial performance. It is part of the MGP series known for compact pneumatic guided cylinders designed to improve precision and reduce device bulk.

For customers seeking reliable Pneumatic Guided Cylinders with excellent mounting versatility and bearing options, the SMC MGPM12-100Z is an optimal choice available now on EnvMart.
