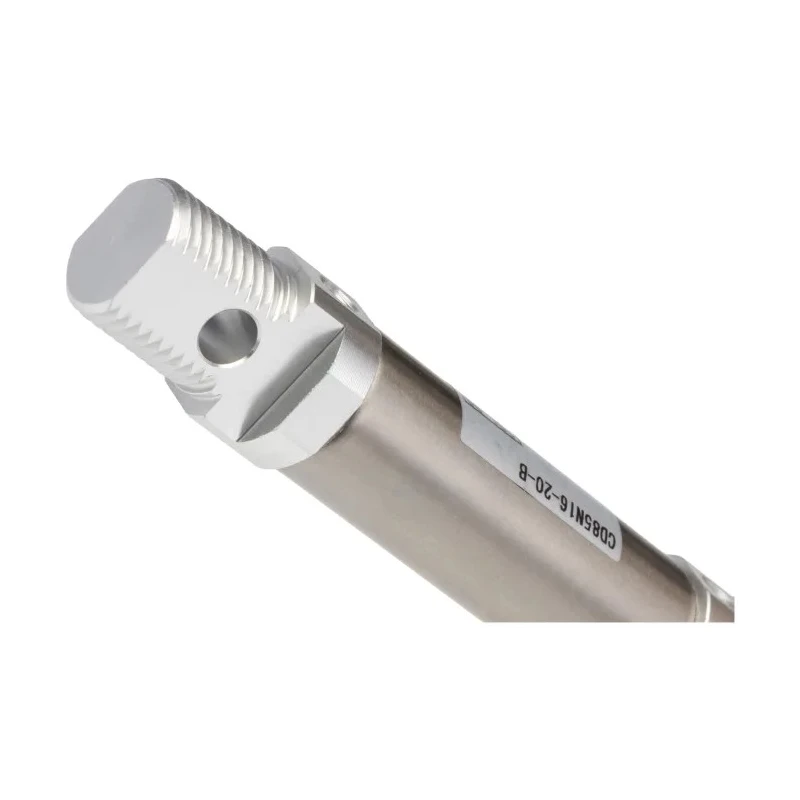

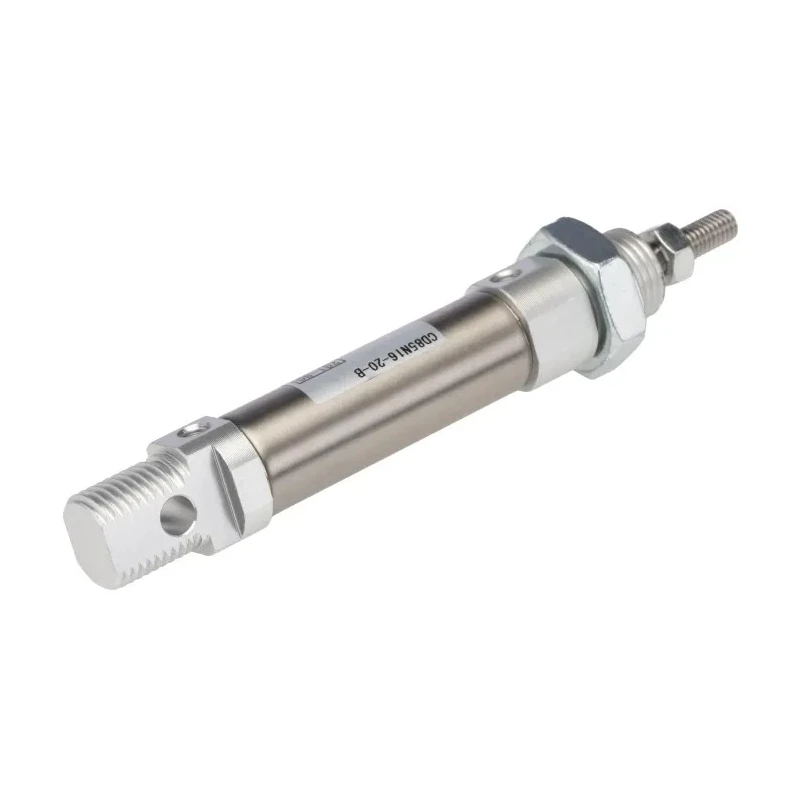

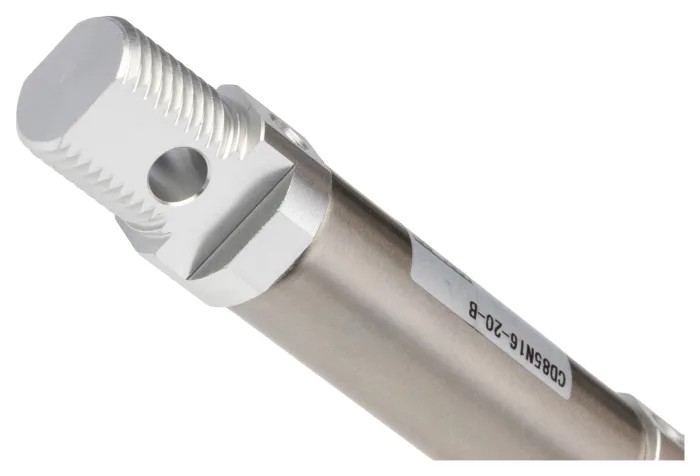

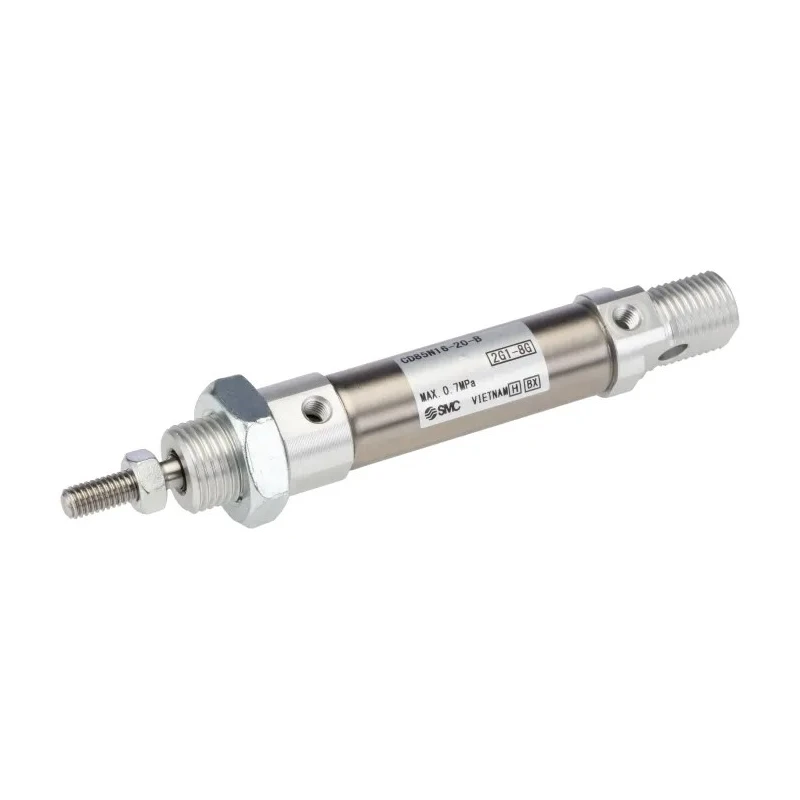

SMC 20 mm Double Acting Cylinder Clevis Mount Aluminium Alloy Body ISO 6432 CD85

SMC CD85N16-20-B is a 20 mm stroke double acting pneumatic cylinder from the CD85 series, featuring a robust aluminium alloy body designed for efficient linear actuation in automated industrial systems. This compact cylinder supports bidirectional pneumatic movement through its double acting piston, providing reliable performance for a variety of control and positioning tasks.

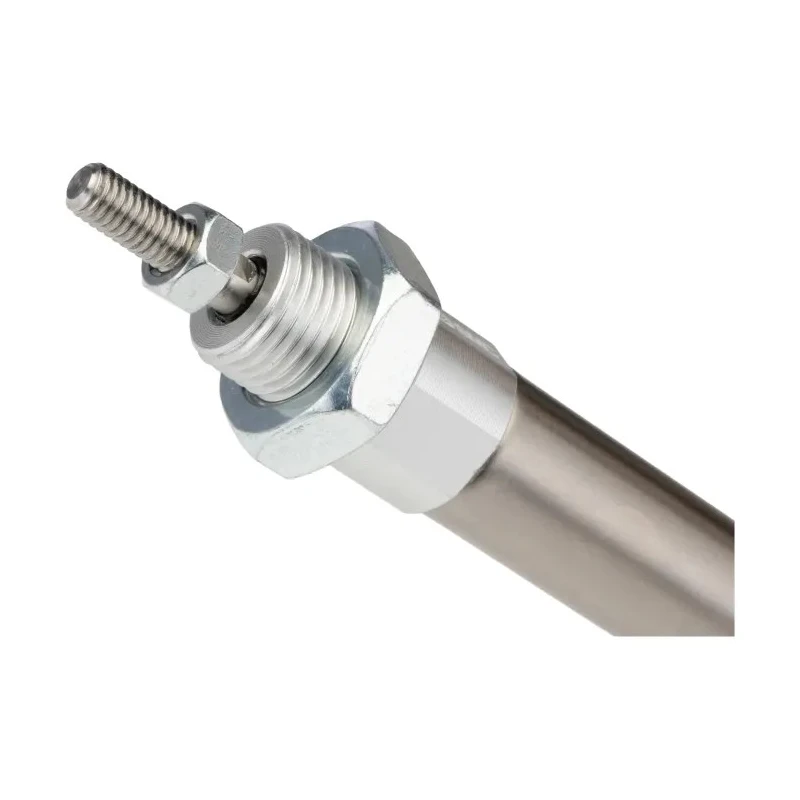

The clevis mounting type simplifies installation by allowing pivoted attachment, while the rubber bumper cushioning effectively absorbs end-of-stroke shocks to reduce wear and increase cycle life. The single piston rod is male threaded with an M6 metric thread standard, ensuring compatibility with common fittings.

This cylinder conforms to ISO 6432 standards ensuring dimensional interchangeability, supporting ease of replacement and system integration. It allows a maximum piston speed of 1500 mm/s, enabling rapid cycling rates necessary in high throughput assembly lines.

Rated to operate safely at temperatures up to 80°C, the CD85N16-20-B cylinder is suitable for typical industrial pneumatic environments, including manufacturing, automotive, packaging, and laboratory automation.

Typical applications include use in pick-and-place stations on assembly lines, valve actuation within control cabinets, small transfer mechanisms on conveyor systems, and positioning of sensors and switches in automated test rigs.

Constructed from lightweight and durable aluminium alloy to reduce assembly mass. Double acting piston design enables precise bidirectional control. Clevis mount facilitates easy pivoted installation in automated systems.

Rubber bumper cushioning minimizes impact shock, enhancing longevity. Single male M6 threaded piston rod supports standardized fittings. Compliant with ISO 6432 dimensional standards for compact pneumatic cylinders. Supports maximum piston speed of 1500 mm/s for rapid cycling.

Rated for operation at temperatures up to 80°C, suitable for standard industrial environments. Ideal for pick-and-place stations, valve actuation, sensor positioning, and conveyor transfer mechanisms.
