ACE Self Compensating Miniature Shock Absorber, Series PP, Hermetically Sealed, 0°C to 65°C Operating Temperature PP225

ACE PP225 Shock Absorber is a self compensating, miniature shock absorber specifically engineered for pneumatic cylinders requiring reliable cushioning at the end of stroke. Its compact size makes it ideal for small automation equipment and installations.

The shock absorber features a steel body treated with Weartec-Plus finish to withstand harsh environmental conditions. The hardened stainless steel piston rod and locknut ensure long service life, while the hardened steel rod end button containing an insert reduces noise during operation.

Designed for maintenance-free operation, this device can handle effective weights ranging from 0.9 kg to 2300 kg, enabling diverse industrial applications. Its operating temperature spans from 0°C to 65°C, and the impact velocity varies from 0.08 m/s to 6 m/s, providing adaptability across different mechanical systems.

The unit can be mounted in any position, offering installation versatility. Accessories such as stop collars, mounting blocks, and locknuts are available optionally to enhance mounting security and performance.

Maintenance-free and self-contained design ensures reliability. Steel body with Weartec-Plus finish for environmental durability. Hardened stainless steel piston rod with noise suppression features. Wide operating temperature and impact velocity ranges.

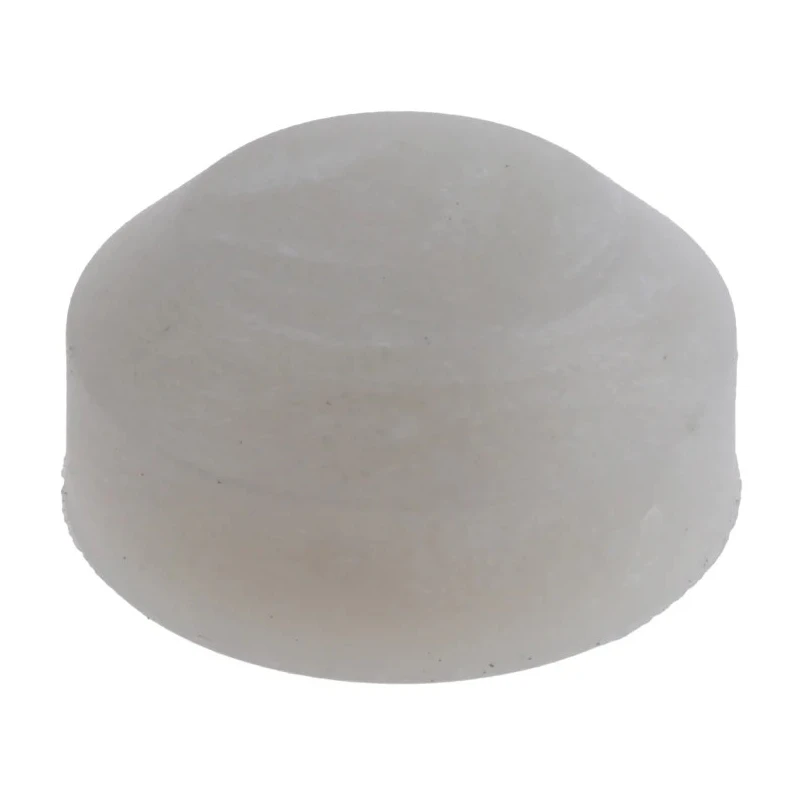

Suitable for end of stroke cushioning in pneumatic cylinders. Optional nylon button and mounting accessories available. Compact size suitable for small automation equipment.

This shock absorber is well-suited for applications in industrial automation, pneumatic systems, laboratory apparatus, and manufacturing machinery. It supports precise control and damping for fluid power and mechanical tools in various commercial and industrial environments.
