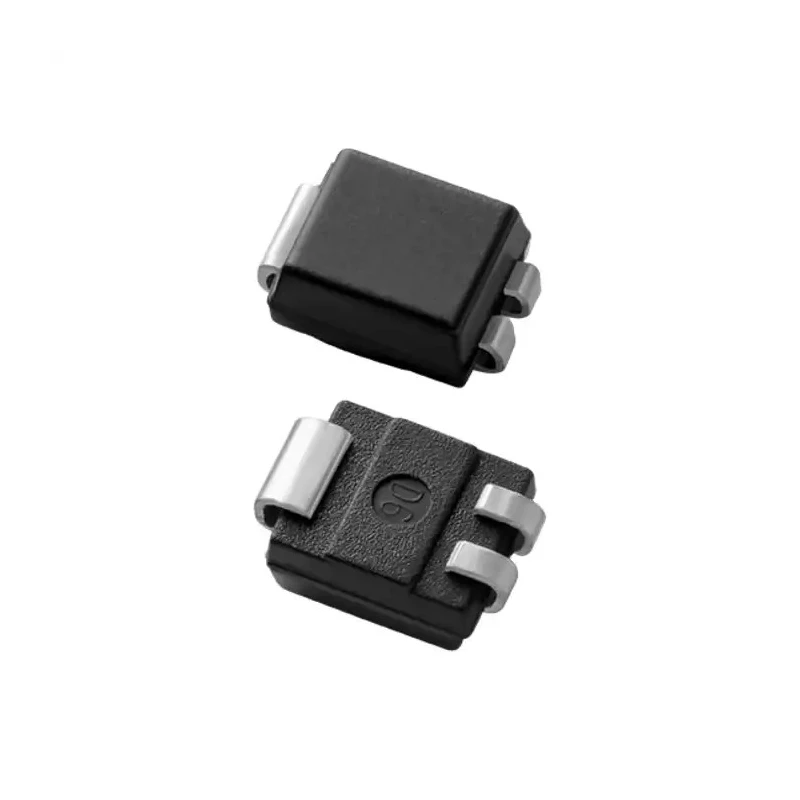

Littelfuse Thyristor SCR 600 V, 2 A Average On-State Current, 0.2 mA Gate Trigger Current, 25 A Surge Current S6002CSRP

Littelfuse S6002CSRP is a high-performance SCR thyristor specifically engineered to deliver reliable switching and controlled conduction in power electronics applications. It offers a repetitive peak reverse voltage and peak on-state voltage rating of 600 V, which makes it suitable for robust power control scenarios.

This device supports an average on-state current of 2 A, with surge current capability of up to 25 A, permitting it to handle transient overloads commonly encountered in capacitor discharge and high-power gas flame ignition systems. The maximum gate trigger current is an ultra-low 0.2 mA, enabling sensitive and precise triggering compatible with direct microprocessor interfacing.

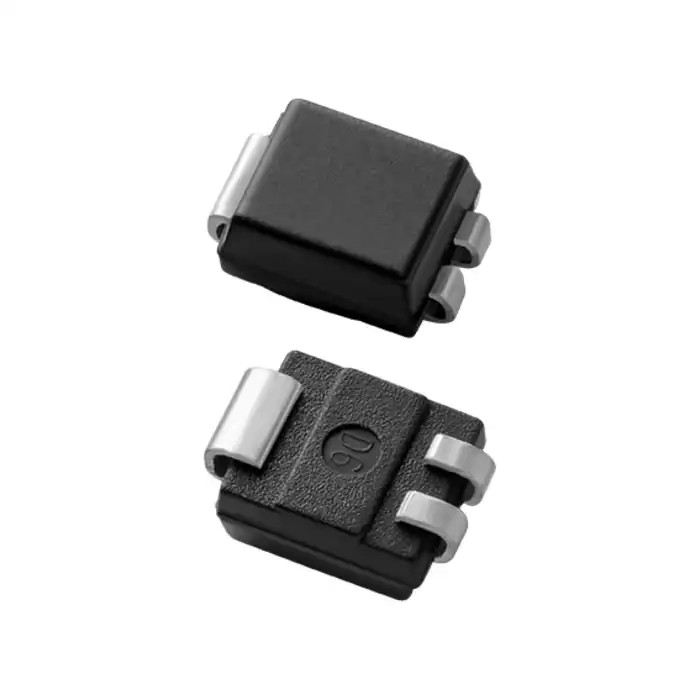

Featuring glass-passivated semiconductor die fabrication enhances long-term reliability and parametric stability under demanding industrial environments. The COMPAK surface mount package facilitates compact PCB design and reliable mounting in automated assembly lines.

Thermally designed to operate within a broad temperature range from -40°C up to 125°C, this thyristor maintains performance stability under harsh conditions. The device demonstrates an improved turn-off time (tq) of less than 55 microseconds, allowing for faster switching cycles and improved system efficiency.

Additional product highlights include low repetitive peak off-state current of 500 μA and low holding current of 5 mA, both contributing to reduced power losses. The Littelfuse S6002CSRP is fully compliant with environmental regulations, being RoHS compliant and halogen-free, making it ideal for environmentally sensitive applications.

Features surge current rating of 25 A for transient conditions. Maximum gate trigger current of 0.2 mA enables sensitive gate activation. Glass-passivated construction ensures long-term parametric stability and reliability.

Operates efficiently across a temperature range from -40°C to 125°C. Provides high di/dt capability with improved turn-off time below 55 microseconds. Suitable for surface mount applications with COMPAK package type. Repetitive peak reverse voltage rating of 600 V supports robust voltage blocking.

Low holding current of 5 mA contributes to power efficiency. Repetitive peak off-state current limited to 500 μA enhances blocking performance. Complies with RoHS and is halogen-free.

This Littelfuse SCR thyristor is ideally suited for use in industrial, electronic component assembly, power control, and semiconductor applications requiring elevated voltage and current handling capabilities. Its compact package and sensitive gate triggering enable integration in modern electronic systems, including microprocessor control environments.
