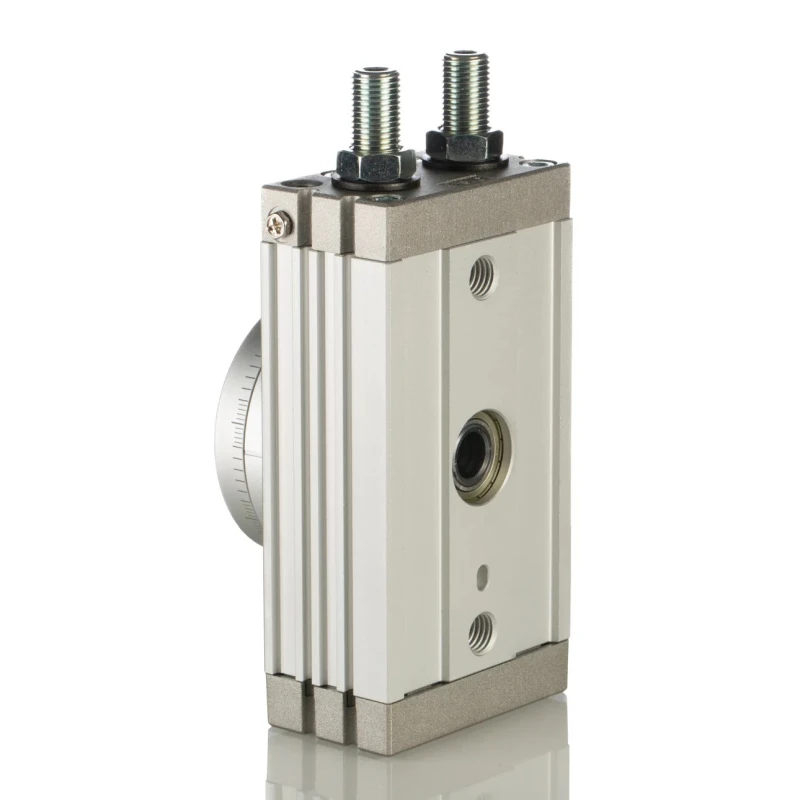

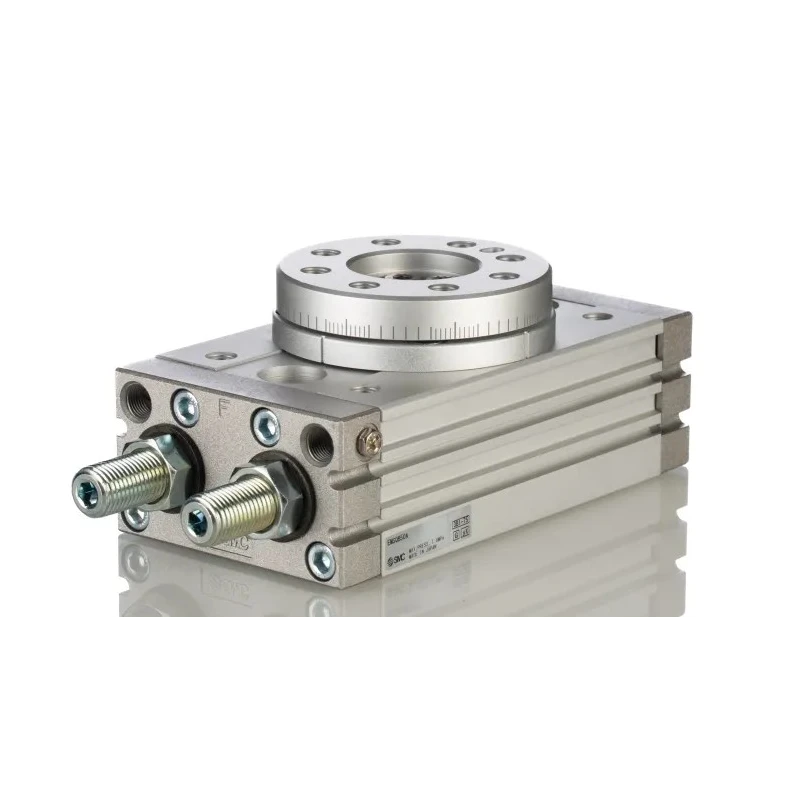

SMC Pneumatic Rotary Actuator MSQ Series 25mm Bore 1 MPa Maximum Operating Pressure 10.8Nm Torque EMSQB50A
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 1 Mpa |
| Height | 66mm |
| Length | 183.4mm |
| Model | EMSQB50A |
| Gross Weight | 2.1kg |
| Width | 85.4mm |
| Series | MSQ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | 0°C |
| Bore Diameter | 25mm |
| Cushioning Type | Rubber |
| Port Thread Size | M5 x 0.8 |
| Maximum Radial Force | 30N |
| Maximum Torque Rating | 10.8Nm |
| Angle of Rotation | 190° |
Key Features
- Compact rotary actuator designed for material transfer applications.
- Rack-and-pinion style actuator with backlash elimination for smooth rotary motion.
- Operating angle adjustable from 0 to 190 degrees via angle adjusting screw.
- Rubber cushioning type ensures enhanced durability and quiet operation.
- Maximum radial force of 30N with a bore diameter of 25mm.
- Operating temperature range from 0°C to 60°C suitable for various industrial environments.
- Equipped with M5 x 0.8 port thread size for standard pneumatic connections.
- Constructed for reliability with a compact length of 183.4mm, height of 66mm, and width of 85.4mm.
Product Description
SMC EMSQB50A Pneumatic Rotary Actuator from the MSQ Series features a 25mm bore diameter and supports a maximum operating pressure of 1 MPa. It delivers a high torque rating of 10.8Nm and operates within a temperature range of 0°C to 60°C, making it suitable for diverse industrial applications.
This compact actuator utilizes a rack-and-pinion mechanism with double rack and single pinion construction that eliminates backlash, ensuring smooth and precise rotary motions. The series provides an adjustable operating angle from 0 to 190 degrees using an angle adjusting screw, enabling flexible positioning in material transfer and automation processes.
The pneumatic rotary actuator is cushioned with durable rubber, extending the lifespan of the device while reducing noise during operation. It exerts a maximum radial force of 30N and includes an M5 x 0.8 port thread size to accommodate standard pneumatic fittings.
With dimensions of 183.4mm in length, 66mm in height, and 85.4mm in width, along with a weight of 2.1kg, this actuator balances compactness and robust construction. Compact rotary actuator designed for efficient material transfer.
Backlash elimination through double rack and single pinion design. Adjustable rotation angle up to 190 degrees for versatile use. Rubber cushioning for quieter and smoother operations. Supports operating pressures up to 1 MPa reliably.
Suitable for industrial pneumatic systems requiring precise rotary control.
This SMC MSQ Series Pneumatic Rotary Actuator is ideal for integration into industrial automation, manufacturing, and pneumatic systems where precise rotary actuation is required. Its reliable design supports various construction, laboratory, HVAC, and manufacturing applications. Browse other pneumatic components and actuators on EnvMart for comprehensive system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic rotary actuator is 1 MPa.
This model has a maximum torque rating of 10.8 Nm.
The actuator allows for an adjustable angle of rotation from 0 to 190 degrees.

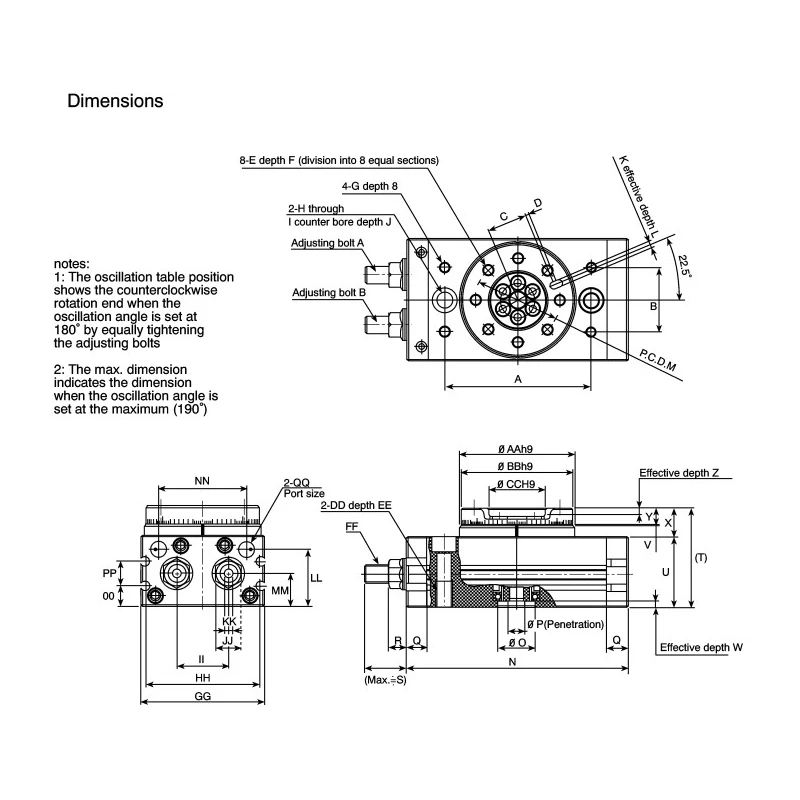

The actuator has a length of 183.4 mm, a height of 66 mm, and a width of 85.4 mm.
It utilizes rubber cushioning, which enhances durability and reduces noise during operation.
The bore diameter of this actuator is 25 mm.
The maximum radial force exerted by the actuator is 30 N.
The operating temperature range is from 0°C to 60°C.
It is equipped with an M5 x 0.8 port thread size for standard pneumatic connections.
This actuator features a rack-and-pinion design with double rack and single pinion construction to eliminate backlash.
It is suitable for various industrial applications including material transfer and automation processes.
The weight of this actuator is 2.1 kg.
