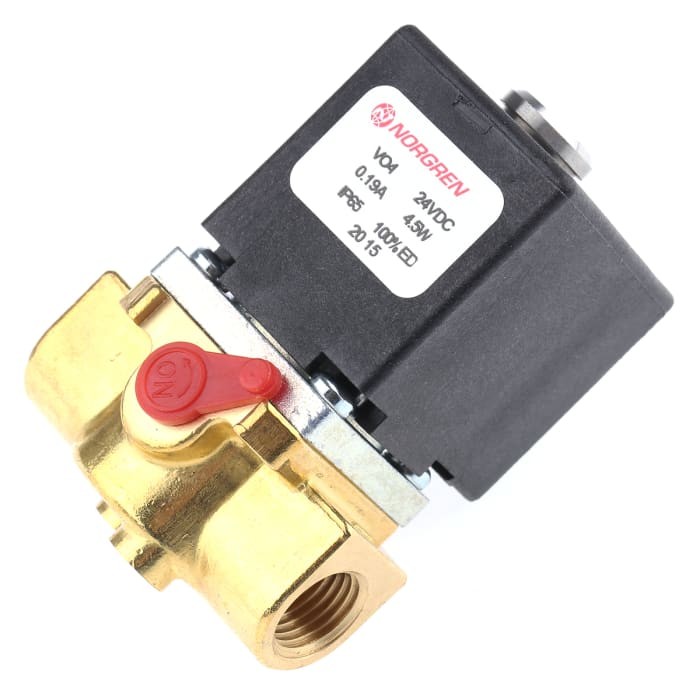

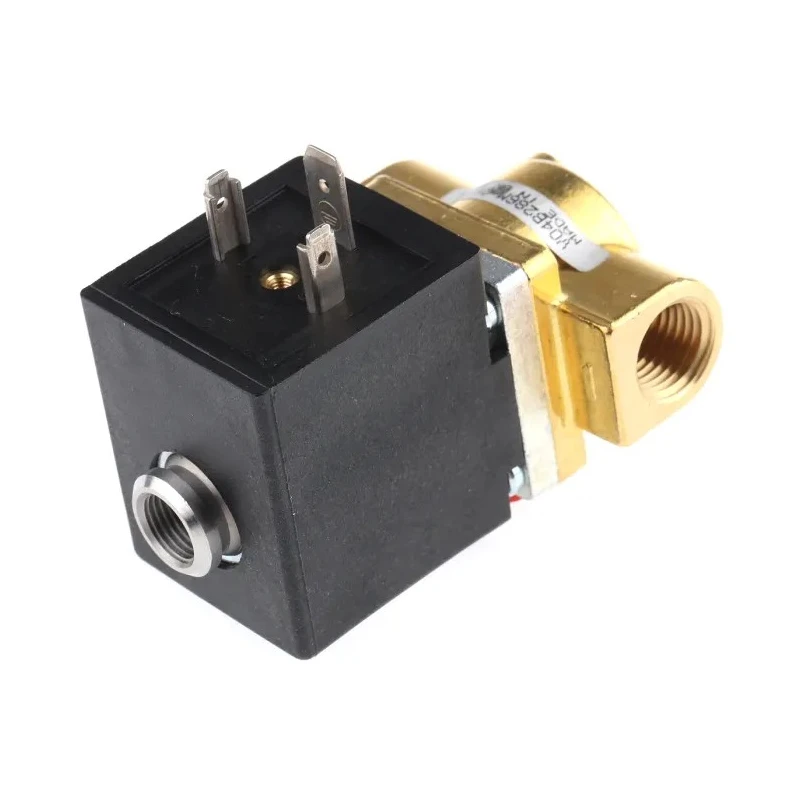

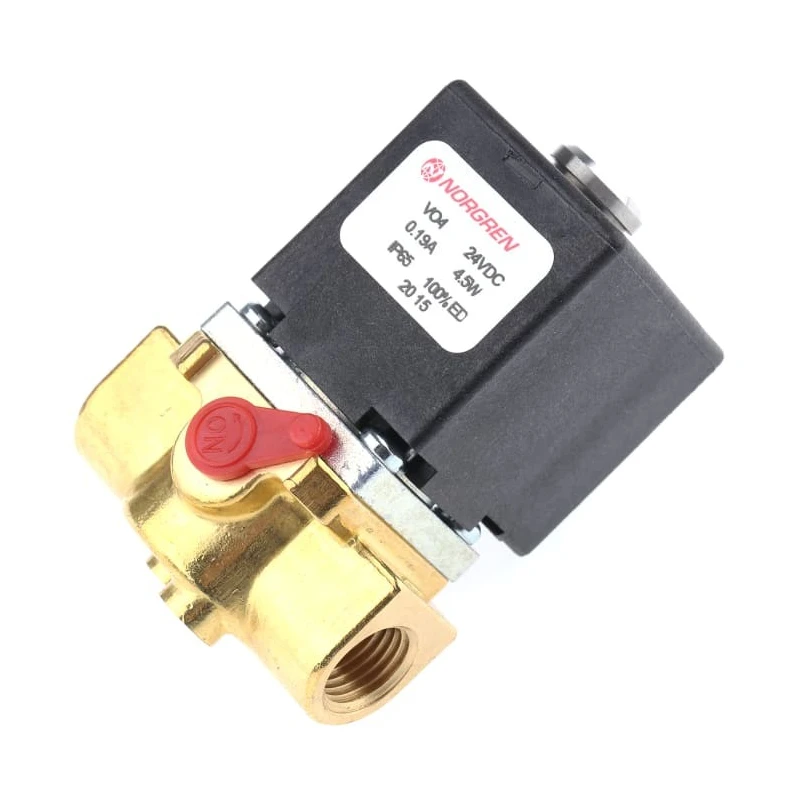

Norgren Pneumatic Solenoid Valve 2/2 Solenoid/Spring G V04 Series Brass Body 24V DC 4.5W V04B286M-B423A
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 24V dc |
| Brand | Norgren |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Height | 83mm |
| Length | 69mm |
| Model | V04B286M-B423A |
| Width | 50mm |
| Mount Type | In-Line, Manifold |
| Series | V04 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 50°C |
| Port Type | Push-in |
| Port Size | 1/4 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -20°C |
| Actuation Type | Solenoid/Spring |
| Maximum Flow Rate | 190L/min |
| Connection Thread Standard | G |
| Mount Pattern | DIN |
| Minimum Pilot Pressure | 0bar |
| Valve Function | 2/2 |
| Electrical Connection Type | 3-Pin Plug |
| Solenoid Power Consumption | 4.5W |
| Norgren 2/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/2 M Series, M/1338Brand | Norgren |
Key Features
- Operates at 24V DC with a power consumption of 4.5W.
- Features push-in port type with standard G 1/4 connection threading.
- Includes reliable nitrile rubber (NBR) seals resistant to moisture and oil.
- Compact size with dimensions 83mm height, 69mm length, and 50mm width.
- Designed with IP65 ingress protection, suitable for dusty and light water spray environments.
- Mounts inline or on manifold with DIN mount pattern flexibility.
- Operates within -20°C to 50°C temperature range for harsh industrial use.
- Manual override included for hands-on valve control.
Product Description
Norgren V04B286M-B423A Pneumatic Solenoid Valve 2/2 Solenoid/Spring G V04 Series with brass body and 24V DC operation provides efficient airflow control for industrial pneumatic systems. This valve operates at a maximum pressure of 10 bar, supporting a flow rate of 190L/min, making it ideal for manufacturing plants, automation, and automotive production facilities. Its push-in port type and standard G 1/4 thread enable easy connection to pneumatic tubing.
The valve has a compact design with height 83mm, length 69mm, and width 50mm, ensuring reduced installation height. Featuring nitrile rubber seals for high resistance against moisture, oil, and abrasions, it guarantees long-lasting performance. The device offers IP65 ingress protection and a 3-pin plug electrical connection for reliable operation in harsh environments. It can be mounted inline or on a manifold with a standard DIN pattern for versatile use.
Designed with a solenoid/spring actuation mechanism, the valve opens when energised by electrical current, and closes via spring action when de-energised. A manual override feature allows direct valve control, providing operational flexibility. This Norgren solenoid valve is built with durable brass and stainless-steel components ensuring corrosion resistance and mechanical robustness.
These valves are compatible with compressed air, filtered, lubricated or non-lubricated, applied widely across industrial sectors requiring pneumatic control. Operates on 24V DC electrical supply with 4.5W power consumption.
Brass body construction resists corrosion and mechanical wear. Nitrile rubber (NBR) seals provide high tensile strength and chemical resistance. Compact form factor facilitates installation in constrained spaces. Manual override enables operator intervention as needed.
IP65 rating protects against dust and light water sprays. Standard G 1/4 port and push-in technology for easy connection. DIN mount pattern supports varied industrial configurations. Operating temperature range from -20°C to +50°C for versatile use.
Applications in manufacturing, automation, and automotive production.
Explore more high-quality Pneumatic Solenoid Valves and related industrial valves in EnvMart’s extensive inventory. Experience reliable and efficient pneumatic control solutions with Norgren products engineered for rigorous industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It supports a maximum flow rate of 190L/min.
This unit has dimensions of 83mm in height, 69mm in length, and 50mm in width.
It features a 3-pin plug electrical connection type.
The operating temperature range is from -20°C to 50°C.
The body is made of brass, and it includes nitrile rubber (NBR) seals.
It operates using a solenoid/spring actuation mechanism, opening when energized and closing via spring action when de-energized.
It has a push-in port type with a standard G 1/4 connection threading.
Yes, it can be mounted inline or on a manifold with a DIN mount pattern.
It is widely applied in manufacturing, automation, and automotive production sectors.
The solenoid power consumption is 4.5W.
This model has an IP65 ingress protection rating, suitable for dusty and light water spray environments.
