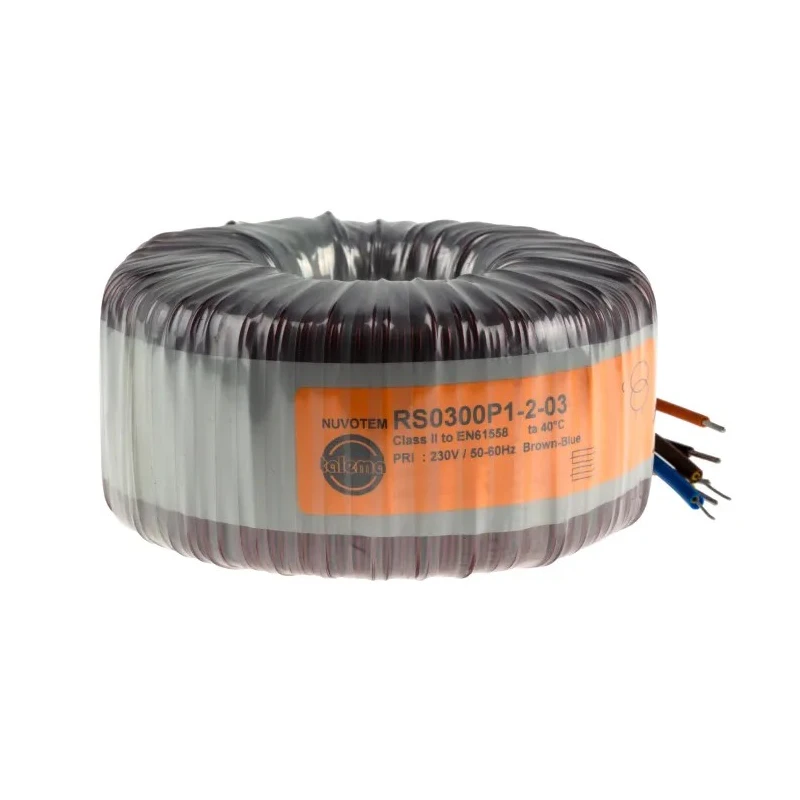

Nuvotem Talema Toroidal Transformer 230 V ac Primary 2 x 35 V ac Secondary 300 VA 2 Output 0300P1-2-035

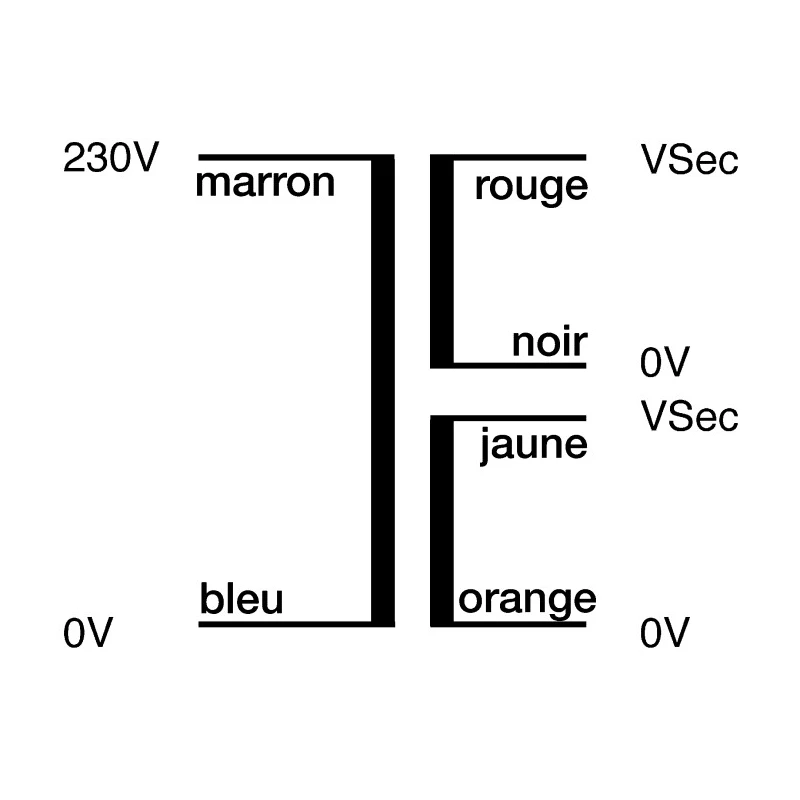

Nuvotem Talema 0300P1-2-035 toroidal transformer features a 230 V ac primary winding and twin 35 V ac secondary windings, delivering a total power rating of 300 VA. This model offers two outputs with a secondary current capacity of 4.28 A, providing flexible usage options for series, parallel, or independent connections.

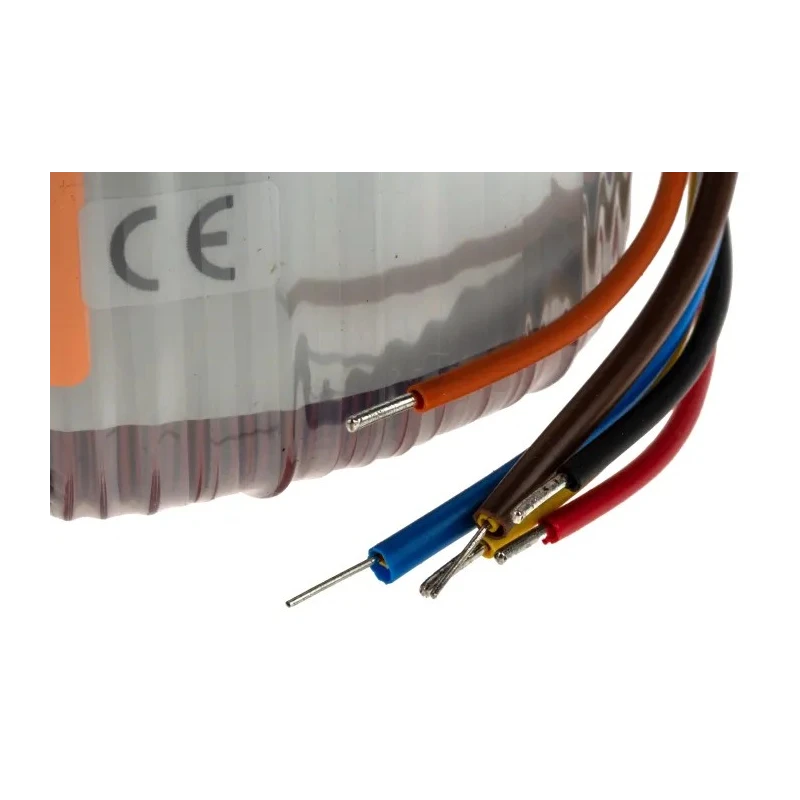

The open style toroidal transformer is designed with copper conductor termination wires, ensuring reliable electrical connections. The transformer has a compact size with a diameter of 115 mm and a height of 58 mm, making it ideal for installations where space is limited.

Its design emphasizes efficiency and low noise, offering very low iron losses, minimal magnetic field radiation, and reduced audible hum, supporting its use in sensitive electronic and industrial equipment.

The transformer complies with international safety and performance standards including UL506, VDE0550, EN61558, EN60065, and BS415, guaranteeing high reliability and safety. It is designed to operate in temperature ranges from 0°C up to 180°C and frequency ranges between 50 Hz and 450 Hz.

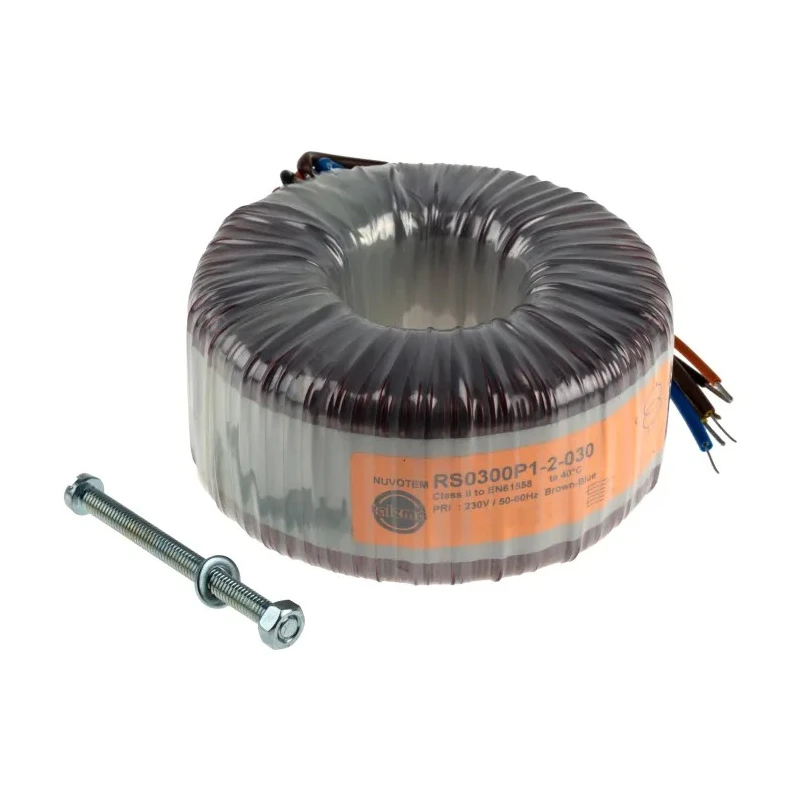

This product includes a full mounting kit to facilitate straightforward and secure installation. Nuvotem Talema’s 0300P1-2-035 toroidal transformer is well suited for electronic components, power supplies, industrial machinery, HVAC systems, laboratory instruments, and other demanding applications requiring a stable and efficient power delivery solution.

High-quality open style Toroidal Transformer with copper conductor termination wire. Features twin secondary windings for series, parallel, or independent use. Compact and lightweight design with diameter 115 mm and height 58 mm.

Operates efficiently with very low iron losses and low electromagnetic interference. Tested and approved to UL506, VDE0550, EN61558, EN60065, and BS415 standards. Suitable for industrial, electronic, power supply, and laboratory applications.

Includes a full mounting kit for easy installation. Designed to operate safely within 0°C to 180°C temperature range. Rated for frequencies between 50 Hz and 450 Hz. Browse EnvMart for more high-quality transformers and power supply components from Nuvotem Talema and other trusted brands.
