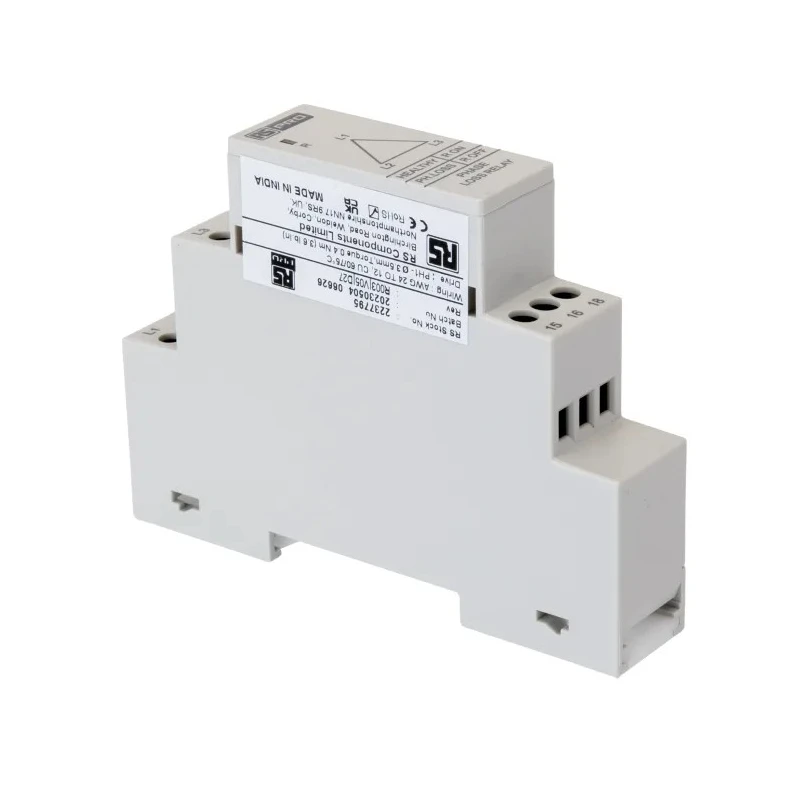

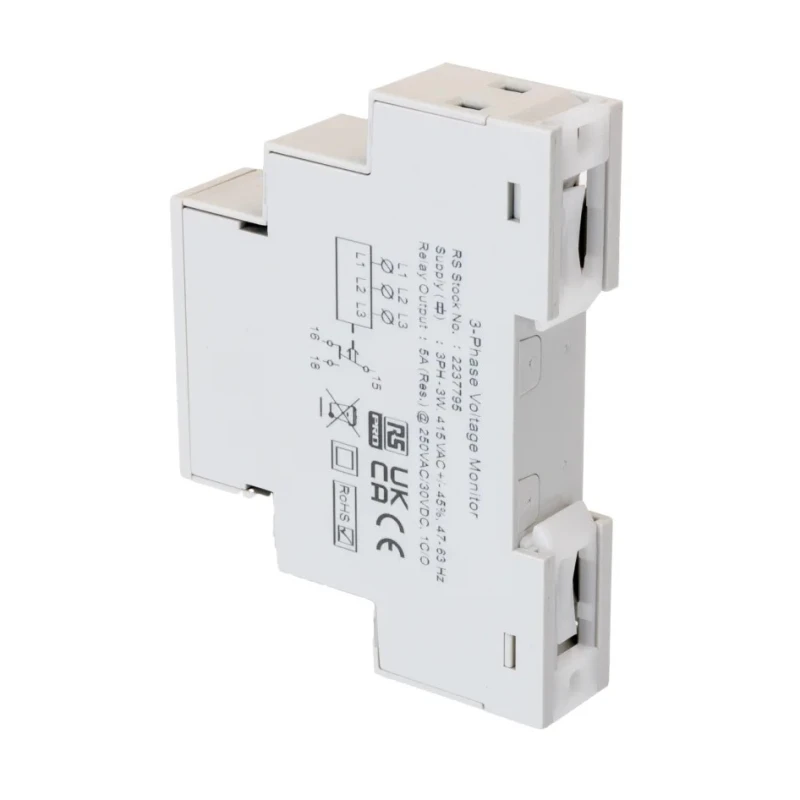

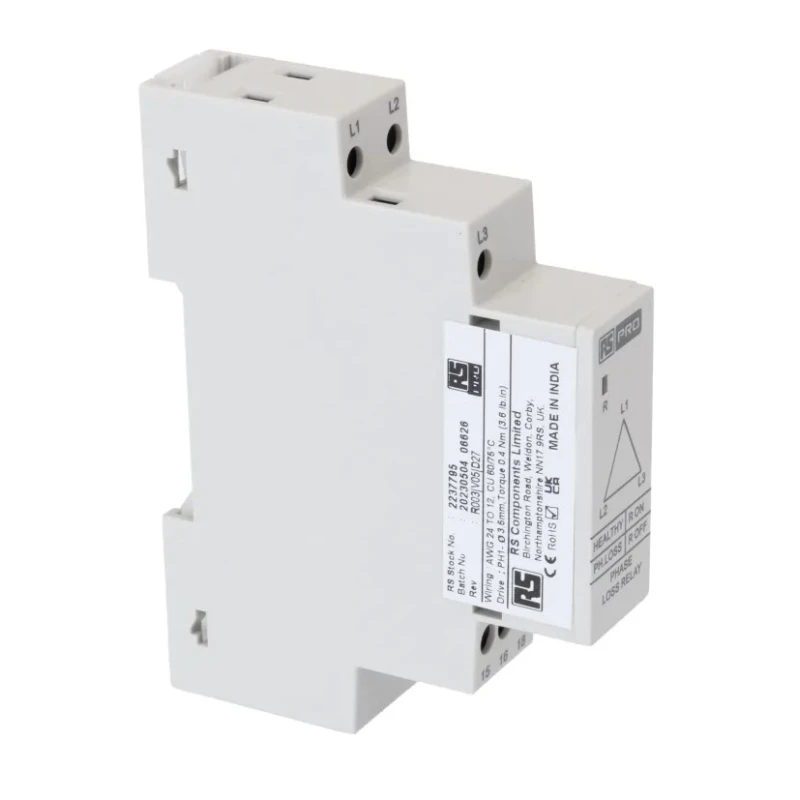

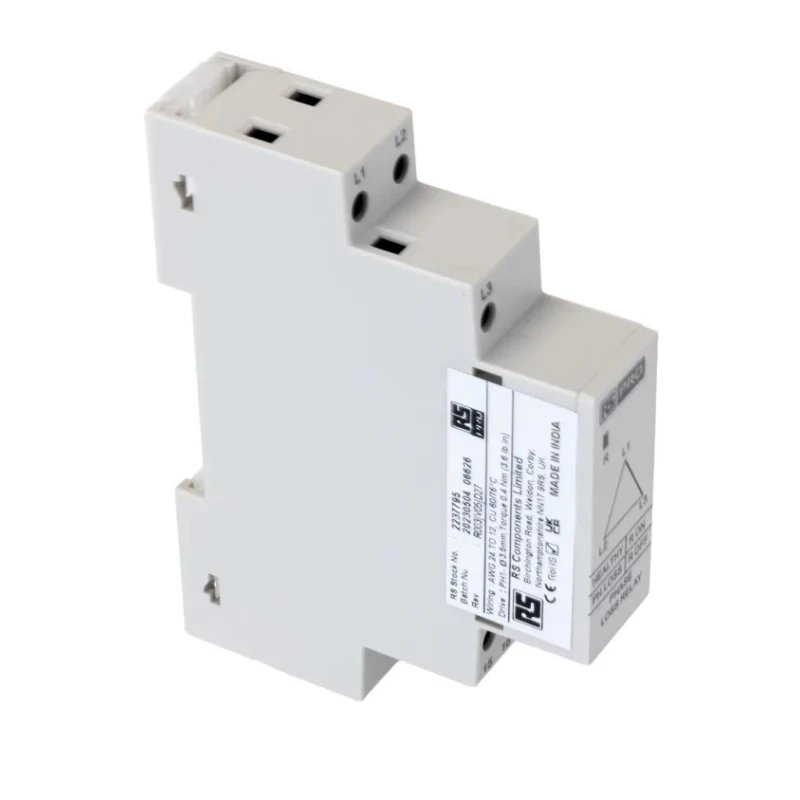

RS Pro 3 Phase Phase Loss Voltage Asymmetry Monitoring Relay SPDT DIN Rail 223-7795
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Assemmetry Monitor Range, SPDT, DIN Rail, 223V ac, 7795 V ac RS Stock No |
| Brand | RS Pro |
| Height | 90mm |
| Function | Undervoltage Monitoring |
| Length | 66.5mm |
| Model | 223-7795 |
| IP Rating | IP20, IP30 |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | RS PRO |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Contact Current | 3A |
| Supply AC Voltage | 223, 7795V ac |
| Compact width | 17.5 mm |
Key Features
- Monitors phase loss, sequence, and voltage asymmetry in 3-phase systems.
- Compact DIN Rail mountable design with screw terminals for easy installation.
- Adjustable under and over voltage set points with selectable ON/OFF time delay.
- LED indication for fault conditions and dip switch settings changes.
- Rated for supply voltages of 223V to 7795V AC with 3A contact current at 60°C max.
- Operates reliably in temperatures from -20°C to 60°C with IP20 and IP30 protection rating.
Product Description
RS Pro 223-7795 Phase Monitoring Relay is designed for monitoring 3 phase electrical systems, offering protection against undervoltage, phase loss, phase sequence errors, and voltage asymmetry. Featuring a single-pole double-throw (SPDT) contact configuration, this relay mounts easily on DIN rails, making it suitable for integration in control panels and switchgear.
Its rugged design supports a wide operating temperature range from -20°C to 60°C and provides an IP20/IP30 protection rating, ensuring durability in industrial environments. With adjustable voltage set points and selectable ON/OFF delays using dip switches, the relay offers precise control and protection customization.
The device supports supply AC voltages between 223V and 7795V, with a contact current rating of 3A, making it versatile for varied applications. LED indicators provide clear fault and status feedback, enhancing safety during operation and maintenance.
This compact relay fits into electrical systems seamlessly with dimensions of 90mm height, 66.5mm length, and 90mm width, with a slim profile of 17.5mm, conserving space within electrical enclosures.
Monitors phase failure and voltage anomalies in 3 phase 3-wire and 4-wire systems. Selectable supply voltage and configurable protection parameters via DIP switches. Reliable performance against low voltage faults ensuring system protection.
LED status indicators for fault and configuration changes during operation. Suitable for machine control, mains distribution, and switchgear applications.
Manufactured in India, the RS Pro 223-7795 relay is suitable for industrial and commercial electrical protection applications, ensuring system reliability and operational safety. Explore the Electronics & Electricals category for more Monitoring Relays and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports supply AC voltages ranging from 223V to 7795V.
It features a single-pole double-throw (SPDT) contact configuration.
The relay has dimensions of 90mm in height, 66.5mm in length, and 90mm in width, with a compact width of 17.5mm.
The maximum operating temperature is 60°C.
It features LED indicators that provide clear feedback for fault conditions and configuration changes.
This model is designed for DIN rail mounting, making it suitable for integration into control panels and switchgear.
The contact current rating is 3A at a maximum temperature of 60°C.
It has an IP20 and IP30 protection rating, suitable for various industrial environments.
The minimum operating temperature is -20°C.
It monitors undervoltage, phase loss, phase sequence errors, and voltage asymmetry in 3-phase systems.
It utilizes screw terminals for easy installation.
Yes, it is suitable for machine control, mains distribution, and switchgear applications.
