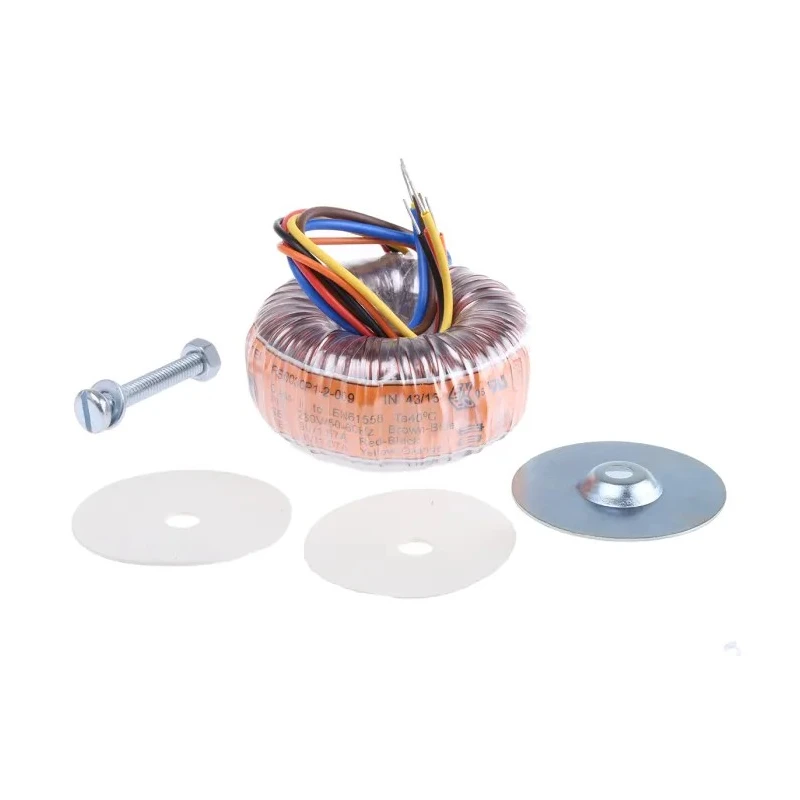

Nuvotem Talema Toroidal Transformer 230 V ac Input 2 x 9 V ac Output 30 VA 0030P1-2-009

Nuvotem Talema 0030P1-2-009 toroidal transformer features a primary voltage input of 230 V ac and provides two 9 V ac secondary outputs with a power rating of 30 VA. Designed as an open style transformer with leads, it offers high-quality construction and adherence to international safety standards such as EN61558, UL506, BS415, and VDE0550.

This transformer operates at a frequency range of 50 Hz minimum up to a maximum of 450 Hz, with a wide operating temperature range from 0°C to 180°C, making it suitable for demanding industrial and commercial electrical applications. The copper conductor termination wire enhances the durability and efficiency of connections.

The low profile form factor, with a diameter of 70 mm and height of 32 mm, ensures easier integration into electronic assemblies or chassis mount installations. Its toroidal design results in extremely low radiated magnetic fields and minimal hum noise, delivering superior performance compared to traditional laminated transformers.

Key features include double-insulated primary leads, very low iron losses, and 100% electrical and flash testing for quality assurance. The twin secondary windings can be connected in series, parallel, or operated independently, providing flexibility for various transformer configurations.

This product is ideal for use in industrial electronic equipment, power supplies, measurement instruments, and audio electronics where clean, efficient, and reliable power transformation is critical. It is supplied with a full mounting kit for straightforward installation.

Compact toroidal design with low magnetic field emission. Two 9 V ac secondary outputs rated at 1.67 A current each. Operates over a broad temperature and frequency range. Complies with multiple international safety standards.

High efficiency with low iron losses and noise. Copper conductor termination wires for durability. Includes mounting kit for easy installation. Suitable for industrial, electronic, and HVAC power applications. Browse the transformers category on EnvMart for more Nuvotem Talema quality products and other certified Toroidal Transformers suitable for various industrial needs.
