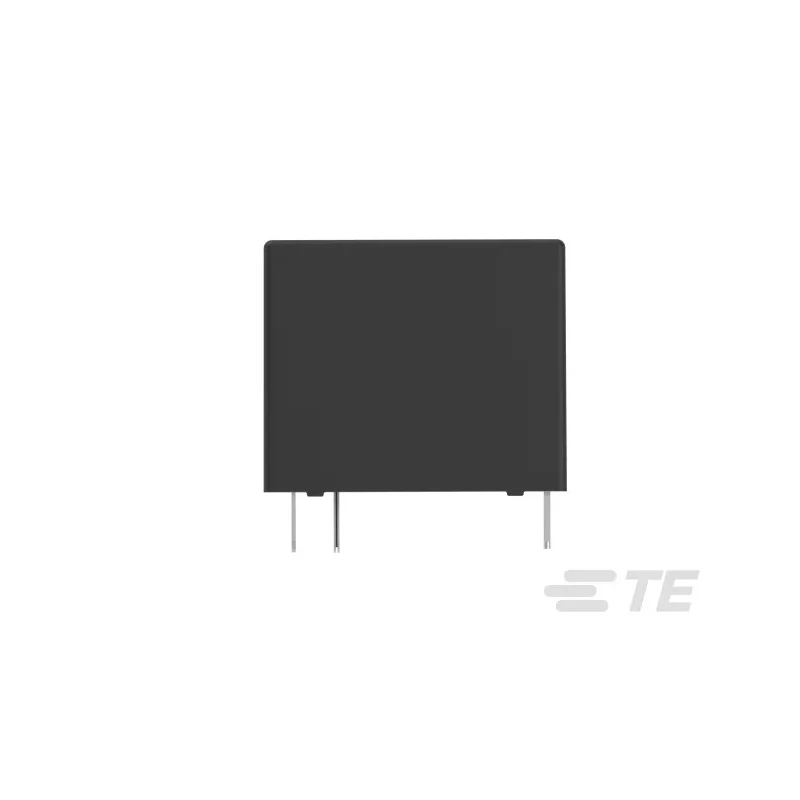

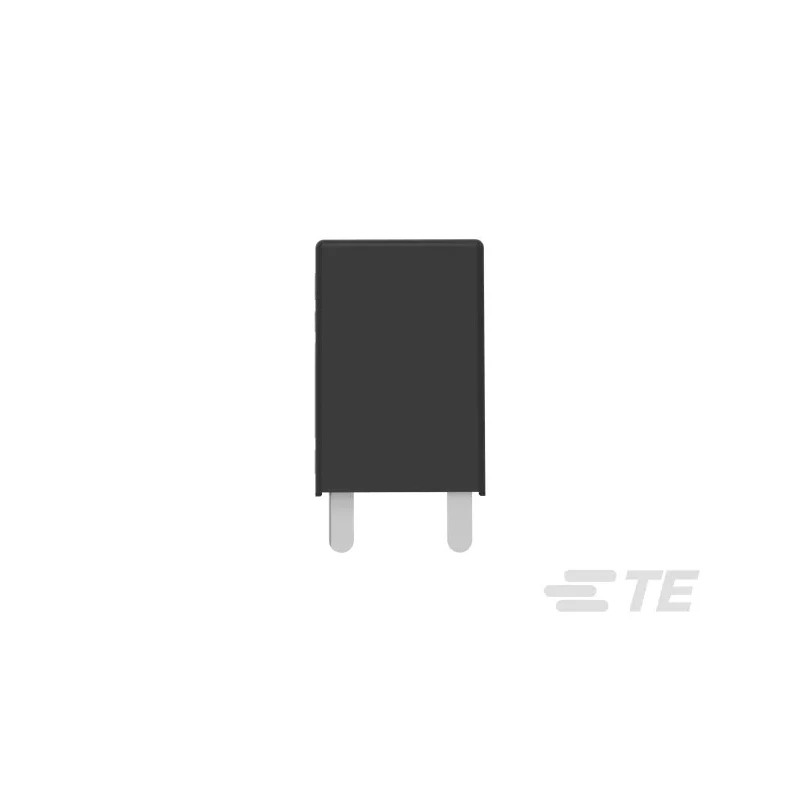

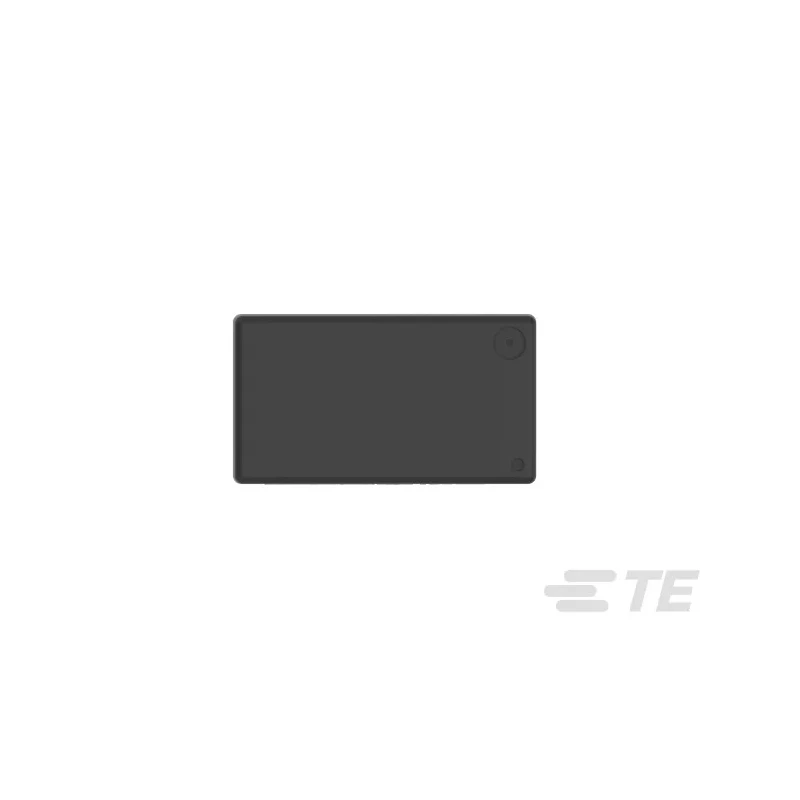

TE Connectivity PCB Relay Relay, 5V dc Coil Voltage, 10A Switching Current, SPST Contact Configuration 2071556-9

TE Connectivity 2071556-9 PCB Relay is a high-performance power relay designed for use in industrial, automation, and electrical control systems requiring reliable switching of electrical power. Featuring a 5V DC coil voltage and a switching current of 10A, this relay is engineered to deliver consistent performance in demanding applications.

The relay employs a Single Pole Single Throw (SPST) contact configuration making it ideal for simple on-off control circuits commonly found in robotics, CNC machines, motion control systems, lighting, building automation, HVAC systems, and solar power installations.

Its compact size, measuring 18.2mm length, 10.2mm width, and 14.8mm height, allows for efficient PCB mounting and flexible integration into densely packed electronic assemblies. The coil resistance of 125Ω and coil power of 200mW ensure energy-efficient operation.

Designed for safety and durability, it supports switching AC voltages up to 277V AC with a switching power capacity of 450mW while maintaining a wide operating temperature range from -30°C to 85°C, suitable for various environmental conditions.

The contact material is Silver Tin Oxide, which delivers excellent conductivity and long service life. The relay also complies with important regulatory standards such as RoHS, REACH, and IEC 62368-1, guaranteeing adherence to safety and environmental regulations.

Additional features include a coil to contact dielectric strength of 4000Vrms, providing high electrical isolation for safety-critical applications. This relay is a versatile choice for industrial, laboratory, and commercial electrical control systems.

Single Pole Single Throw (SPST) contact configuration for straightforward switching tasks. Compact dimensions of 18.2mm length, 10.2mm width, and 14.8mm height. Coil resistance of 125Ω and coil power consumption rated at 200mW.

Designed for PCB mounting with solder-type terminals ensuring secure placement. Supports switching AC voltage up to 277V AC and switching power of 450mW. Operating temperature range from -30°C to 85°C for diverse environmental conditions.

Contact material made of Silver Tin Oxide for durability and optimized performance. Complies with RoHS, REACH, and IEC 62368-1 standards for safety and environmental compliance. Dielectric strength of 4000Vrms between coil and contact enhances electrical isolation.

For users seeking reliable PCB relays with precise specification compliance, TE Connectivity offers a proven solution with model 2071556-9. Explore EnvMart’s extensive catalog for additional electronic components and power Relays.
