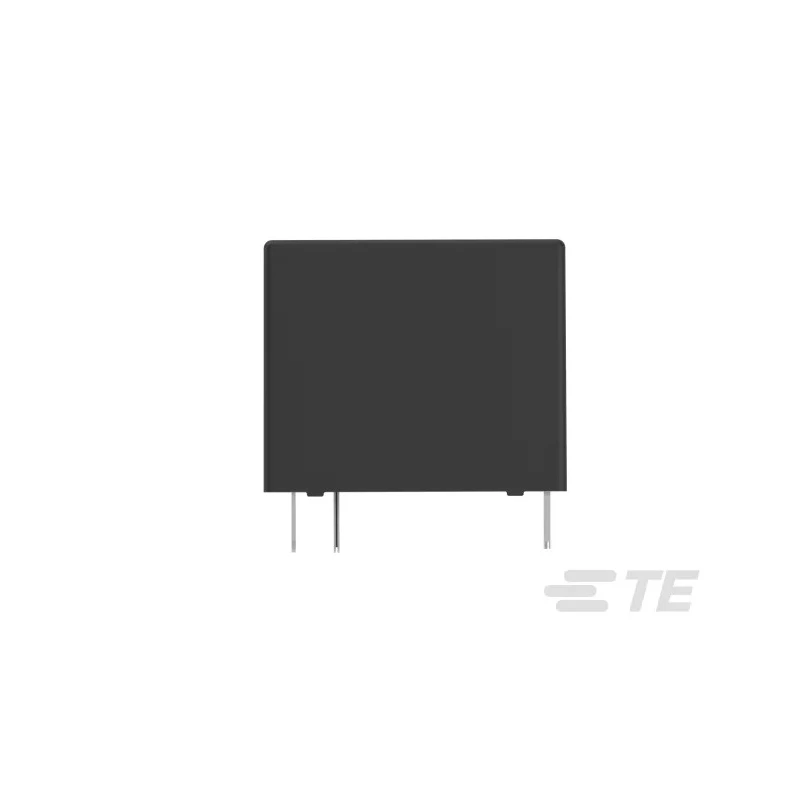

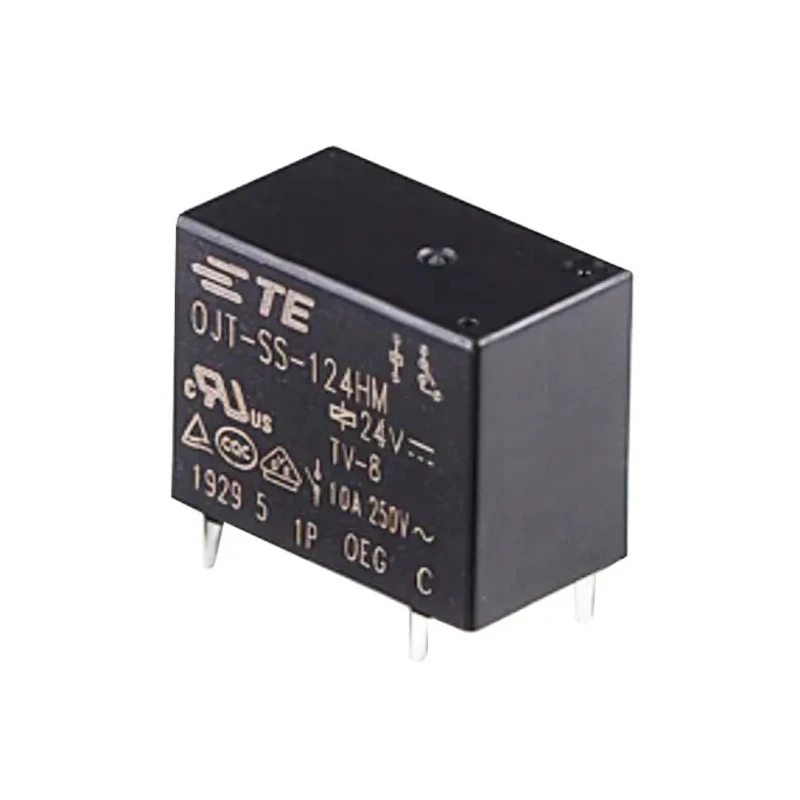

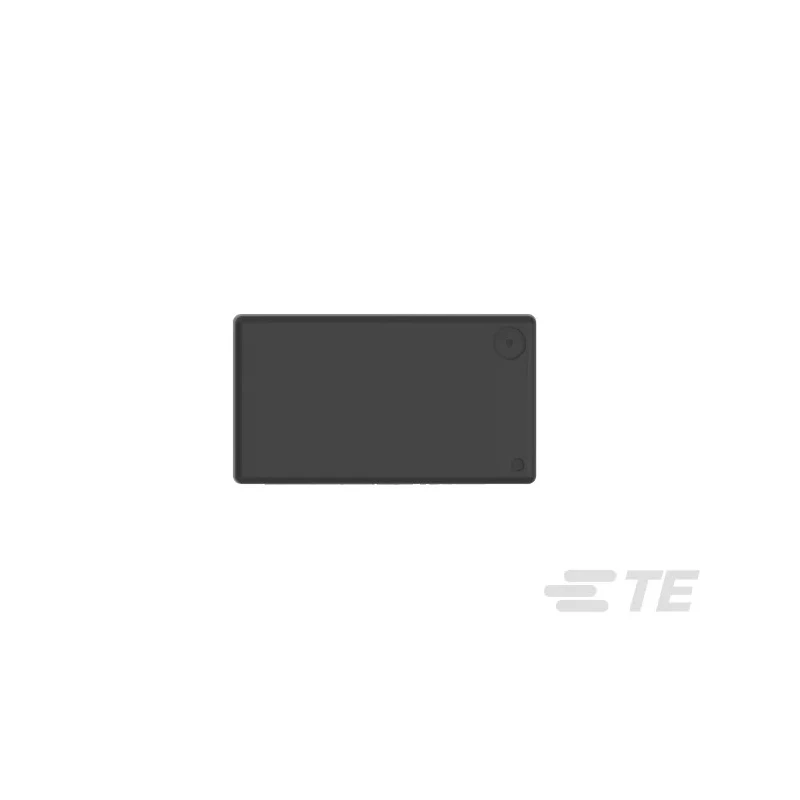

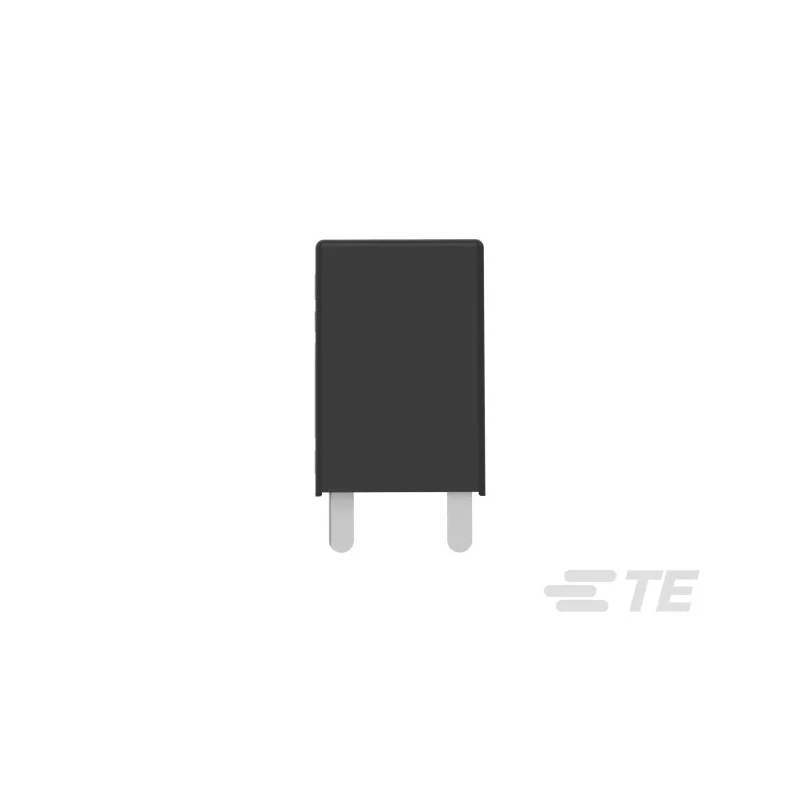

TE Connectivity PCB Relay, 24V DC Coil, 10A Switching Current, SPST Contact, Solder Terminal, OJS Series 2071556-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.8mm |
| Length | 18.2mm |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide |
| Series | OJS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | IEC 62368-1, RoHS, REACH |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 450mW |
Key Features
- Compact dimensions of 18.2 mm length, 10.2 mm width, and 14.8 mm height provide space-efficient PCB mounting.
- Coil power consumption is low at 200 mW, enhancing energy efficiency.
- Rated for switching AC voltage up to 250 V AC and switching power of 450 mW.
- Silver Tin Oxide contact material ensures durability and reliable electrical performance.
- Operating temperature range from -30°C to 85°C suitable for diverse environments.
- Compliant with IEC 62368-1, RoHS, and REACH standards for safety and environmental care.
- Coil resistance measured at 2.9 kΩ supports stable coil operation.
- Includes solder terminal type and OJS series compatibility for standardized PCB footprints.
Product Description
TE Connectivity 2071556-5 PCB Relay features a 24V DC coil and offers a robust 10A switching current with SPST contact configuration. This relay is designed for efficient PCB mounting with compact dimensions of 18.2 mm (L) x 10.2 mm (W) x 14.8 mm (H), making it suitable for demanding electronic applications.
The relay’s coil power consumption is just 200 mW, enabling energy-efficient operation. It supports AC switching voltages up to 250V AC and a maximum switching power of 450 mW. The contacts are made of high-quality Silver Tin Oxide material, ensuring long life and reliable contact performance even in harsh industrial environments.
Operating temperature ranges from -30°C to 85°C allow this relay to function optimally across a variety of environmental conditions. Coil resistance is 2.9 kΩ, contributing to precise electrical characteristics. The standardized solder terminals and OJS series compatibility facilitate integration with existing PCB designs.
This relay complies fully with IEC 62368-1 safety standards, as well as RoHS and REACH environmental regulations, confirming its adherence to international quality and safety requirements. It finds applications in industrial, laboratory, automation, robotics, CNC machinery, lighting systems, solar power installations, HVAC, building automation, and other safety-critical control systems requiring reliable switching of electrical power.
Compact size for efficient PCB mounting and space saving. Low coil power for energy-efficient control circuits. High switching current of 10A for demanding load control. Durable Silver Tin Oxide contacts for long service life.
Wide operating temperature supports diverse application environments. Meets IEC 62368-1, RoHS, and REACH certifications ensuring safety and environmental compliance. Standardized solder terminal connection and OJS series footprint.
Suitable for use in industrial automation, robotics, control panels, and HVAC systems. Explore more Power Relays and related products at EnvMart for reliable industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 10A, making it suitable for controlling demanding loads.
This model has compact dimensions of 18.2 mm in length, 10.2 mm in width, and 14.8 mm in height, allowing for efficient PCB mounting.
The relay operates with a coil voltage of 24V DC, which is essential for its activation.
The coil power consumption is low at 200 mW, contributing to energy-efficient operation.
It supports a maximum switching AC voltage of 250V AC, making it versatile for various applications.
The relay features a Single Pole Single Throw (SPST) contact configuration, suitable for simple on/off control.
The contacts are made of Silver Tin Oxide, ensuring reliable electrical performance and durability.
The relay operates effectively in an environmental temperature range from -30°C to 85°C.
It complies with IEC 62368-1, RoHS, and REACH standards, ensuring safety and environmental compliance.
This model includes solder terminals, which facilitate integration with PCB designs.
The coil resistance is measured at 2.9 kΩ, supporting stable coil operation.
This relay is suitable for applications in industrial automation, robotics, control panels, and HVAC systems.
