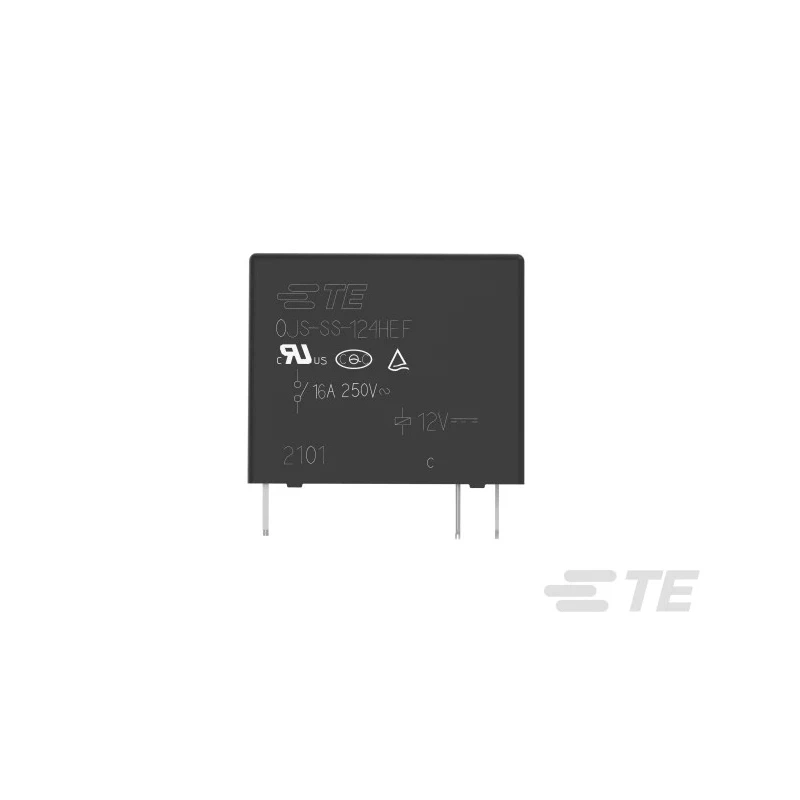

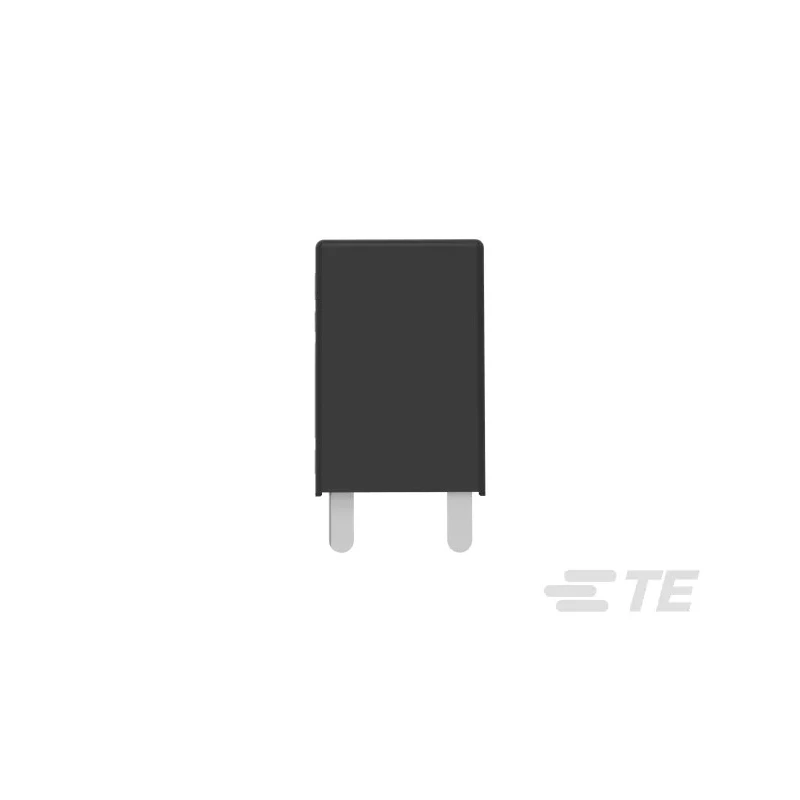

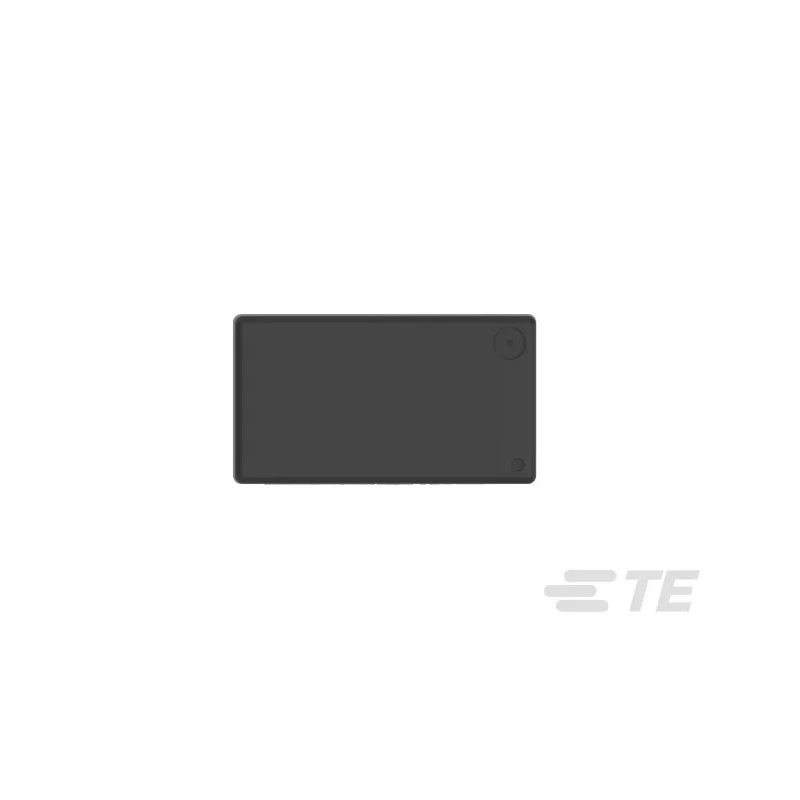

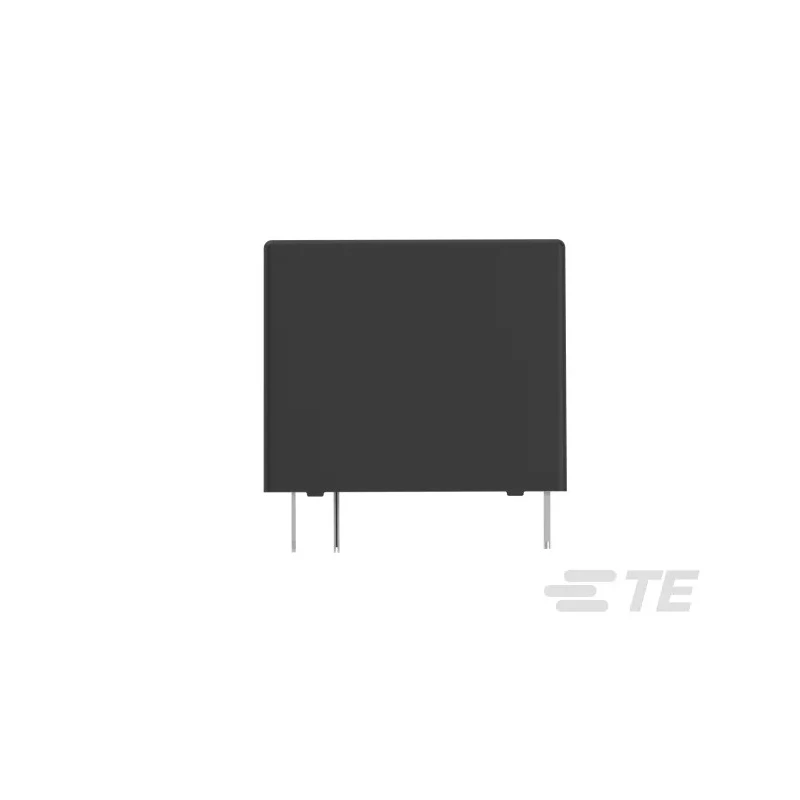

TE Connectivity PCB Relay 24V DC Coil 16A Switching Current SPST 2071556-2
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.8mm |
| Length | 18.2mm |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide |
| Series | OJS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC 62368-1, REACH |
| Coil Resistance | 1.3kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 450mW |
| Switching Power | 450mW |
Key Features
- Designed for PCB mounting with solder terminals for reliable connections.
- Operates within temperature ranges from -30°C to 85°C.
- Small compact size with dimensions of 18.2mm length, 10.2mm width, and 14.8mm height.
- Features silver tin oxide contact material ensuring durability and low contact resistance.
- Coil power consumption is low at 450mW with coil resistance of 1.3kΩ.
- Compliant with industry standards including RoHS, IEC 62368-1, and REACH.
- Suitable for automation, control panels, robotics, elevators, HVAC, solar systems, and safety-critical equipment.
Product Description
TE Connectivity 2071556-2 PCB Relay is a high-quality power relay featuring a 24V DC coil voltage and 16A switching current with a single-pole single-throw (SPST) contact configuration. This relay is designed for PCB mounting and is ideal for precise and reliable switching applications in industrial, commercial, and automation environments.
Its compact dimensions (18.2mm length, 10.2mm width, and 14.8mm height) facilitate integration into dense PCB layouts while maintaining high performance. The relay employs silver tin oxide contacts which ensure excellent conductivity and longevity.
The coil power consumption is 450mW with a resistance of 1.3kΩ, supporting sensitive control circuits. The relay supports switching AC voltages up to 250V AC and switch power of 450mW, suitable for various control and power circuits.
Operating temperature ranges from -30°C to 85°C, allowing deployment in harsh industrial environments. Additionally, the relay complies with RoHS, IEC 62368-1, and REACH standards, certifying its environmental and safety compliance.
This PCB relay series (model 2071556-2) offers reliable actuator control in automation, robotics, elevators, CNC machines, motion control, lighting control, building automation, solar applications, and HVAC systems, among many other safety-critical uses.
Designed for PCB mounting with solder terminal connections for durability. Coil power consumption is efficient at 450mW with 1.3kΩ coil resistance. Compact footprint measures 18.2mm × 10.2mm × 14.8mm. Silver tin oxide contacts provide reliable switching and low resistance.
Operating temperature from -30°C to 85°C supports various environments. Complies with RoHS, IEC 62368-1, and REACH standards. Ideal for industrial automation, control panels, and HVAC systems. Discover a wide range of robust and reliable relays including this model at EnvMart for your industrial and commercial electrical projects.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 16A.
The dimensions of this model are 18.2mm in length, 10.2mm in width, and 14.8mm in height.
The coil voltage for this relay is 24V DC.
The coil power consumption is 450mW.
This relay operates within a temperature range of -30°C to 85°C.
The relay features a single-pole single-throw (SPST) contact configuration.
The contact material used in this relay is silver tin oxide.
This relay complies with RoHS, IEC 62368-1, and REACH standards.
The coil resistance is 1.3kΩ.
The maximum switching AC voltage for this relay is 250V AC.
This relay is designed for PCB mounting with solder terminals.
This relay is suitable for applications in automation, control panels, robotics, elevators, HVAC, and solar systems.
