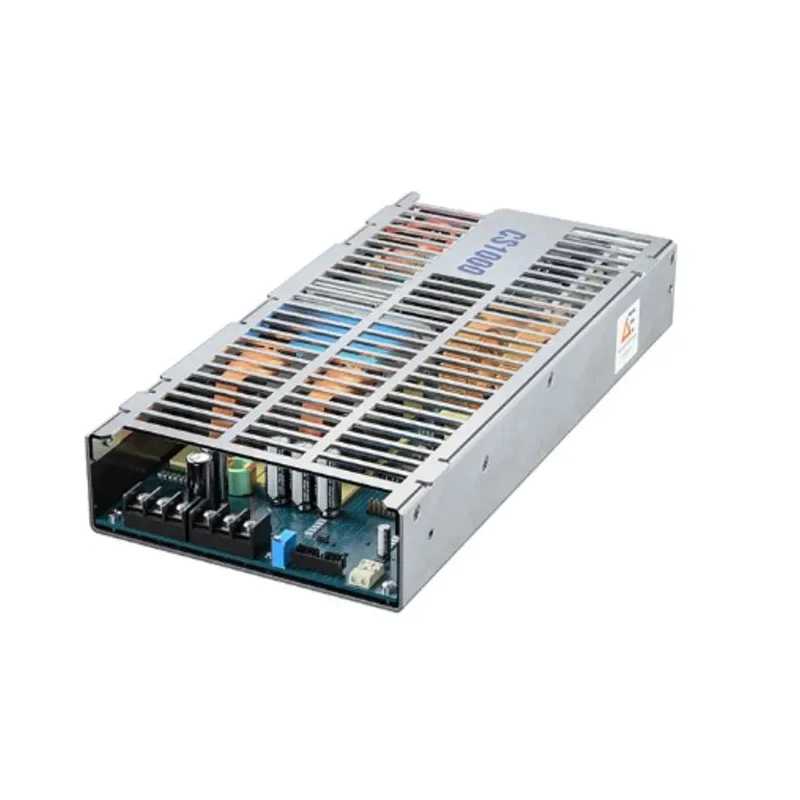

Excelsys / Advanced Energy Switching Power Supply 24V DC, 1kW, 41.6A Output, DIN Rail Mount CS10S-24N-0-A

The Excelsys / Advanced Energy CS10S-24N-0-A Switching Power Supply is a highly reliable, convection-cooled unit that delivers 1000 W of power at 24V DC with a maximum output current of 41.6A. Its DIN Rail mounting and compact design (262mm length, 127mm width, 39.1mm depth) make it ideal for industrial and scientific applications requiring low noise and vibration.

This power supply supports a wide input voltage range from 85V AC to 264V AC, allowing for versatile deployment in different regions and setups. Operating temperatures from -40°C to 85°C ensure stable performance even under harsh environmental conditions. The device achieves a high efficiency of 94%, minimizing energy losses.

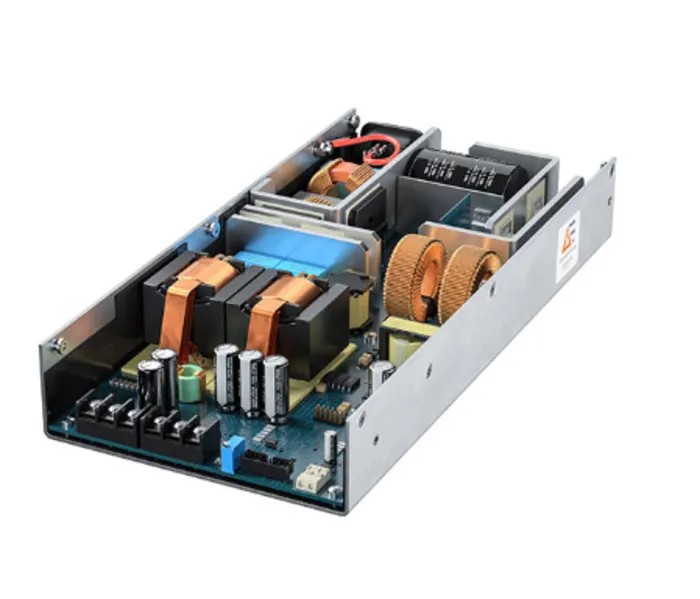

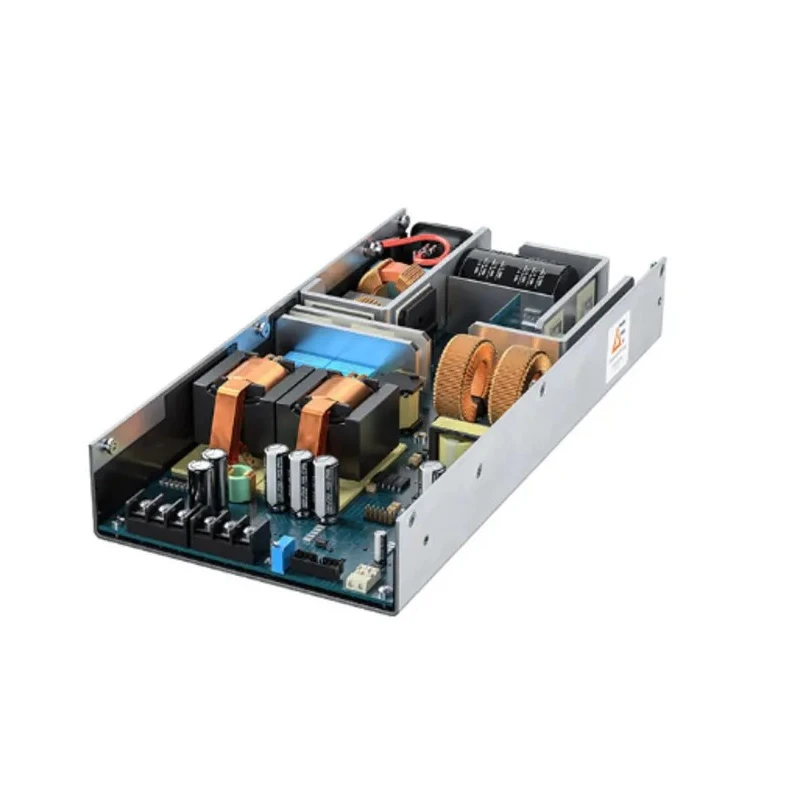

The open-frame U-channel construction eliminates the need for a base plate and significantly reduces acoustic noise and vibrations, making it particularly suited for environments sensitive to such interference, including laboratory and medical equipment. The unit supports paralleling to increase power output where higher capacities are needed.

Certified to meet RoHS, IEC, EN, and CE standards, this power supply guarantees compliance with international safety and environmental requirements. The compact and lightweight design at just 1.3 kg facilitates easy installation and integration into existing systems.

Compact DIN Rail mounting for easy integration in control panels. Wide input voltage range from 85V to 264V AC for flexible power sources. Operates efficiently with 94% efficiency and minimal heat generation. Robust operating temperature span from -40°C to 85°C ensures reliable performance in harsh environments.

Lightweight design at 1.3 kg facilitates installation and maintenance. Open-frame U-channel form factor eliminates acoustic noise and vibration. Complies with RoHS, IEC, EN, and CE standards for safety and quality. Can be paralleled for higher power capacity if needed.

This switching power supply is ideal for industrial machines, laboratory equipment, medical devices, and other applications where reliable DC power and noise-free operation are critical. Explore our full range of Switching Power Supplies and power solutions at EnvMart for your specialized power requirements.
