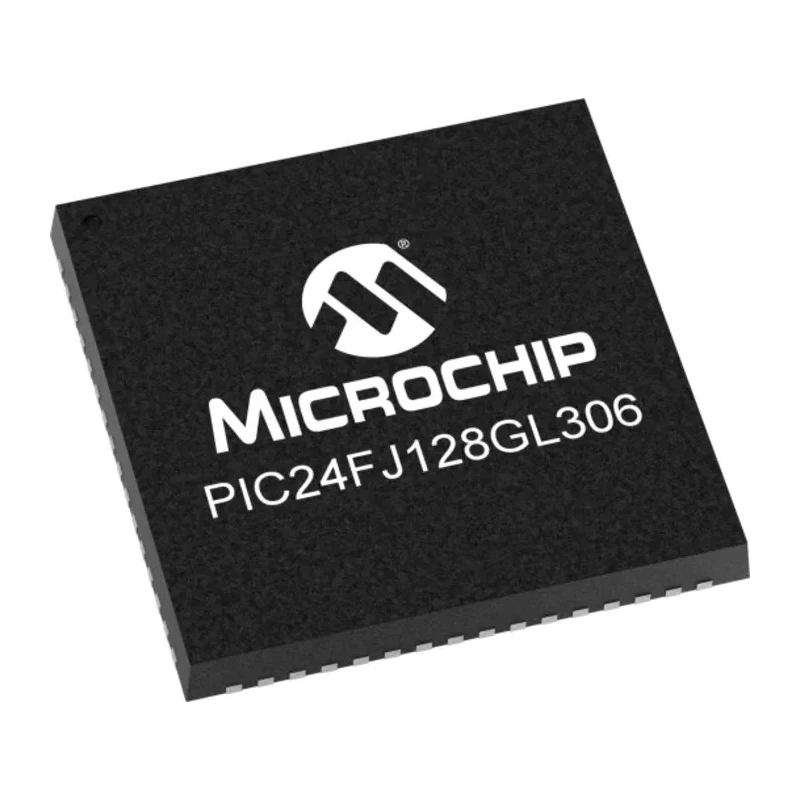

Microchip 16 bit PIC PIC24FJ GL Microcontroller 128kB FLASH 32 MHz 64-Pin TQFP PIC24FJ128GL306-I/PT

Microchip PIC24FJ128GL306-I/PT is a 16 bit PIC microcontroller from the PIC24FJ GL series designed for low power and high performance embedded system applications. This microcontroller includes a 16-bit PIC core with Harvard architecture, operating up to 32 MHz clock speed to deliver up to 16 MIPS (Million Instructions Per Second).

The device features 128kB FLASH program memory and 8kB RAM, optimized for running complex embedded firmware efficiently with built-in Code Guard™ Flash protection and Error Correction Code (ECC) for robust memory operations.

Operating voltage spans from 2.0 V to 3.6 V, with an extended operating temperature range from -40°C to 125°C, suitable for automotive and industrial environments meeting the AEC-Q100 automotive standard.

The 64-pin Thin Quad Flat Package (TQFP) package measures 9 mm by 9 mm with a height of 1.2 mm, making it suitable for surface mount PCB assembly.

Key peripherals include 5 versatile timers, 3 analogue comparators, and an advanced segmented LCD controller with core independent animation support for up to 256 segments, ideal for battery-operated portable devices.

This microcontroller balances ultra-low power consumption with high functionality, providing circuitry to minimize power draw during sleep modes with full RAM retention, making it highly applicable in battery-powered applications.

Equipped with a 16-bit PIC device core suitable for embedded applications. Features 128kB of FLASH program memory and 8kB RAM for efficient processing. Operates over a voltage range from 2V to 3.6V, enabling low power consumption.

Provides 5 timers and 3 analogue comparators for versatile control functions. Packaged in a 64-pin TQFP surface mount package measuring 9mm x 9mm x 1.2mm. Maximum operating temperature up to 125°C and minimum down to -40°C.

Includes segmented LCD controller with core independent animation supporting up to 256 segments. Incorporates Code Guard™ Flash protection and ECC error correction for memory integrity. Complies with the AEC-Q100 automotive reliability standard.

Employs Harvard architecture providing up to 32 MHz clock frequency and 16 MIPS performance.

This microcontroller is ideal for industrial, automotive, portable electronics, and embedded systems requiring ultra-low power with enhanced features and memory protection. Explore EnvMart’s extensive range of semiconductor Microcontrollers for diverse applications.
