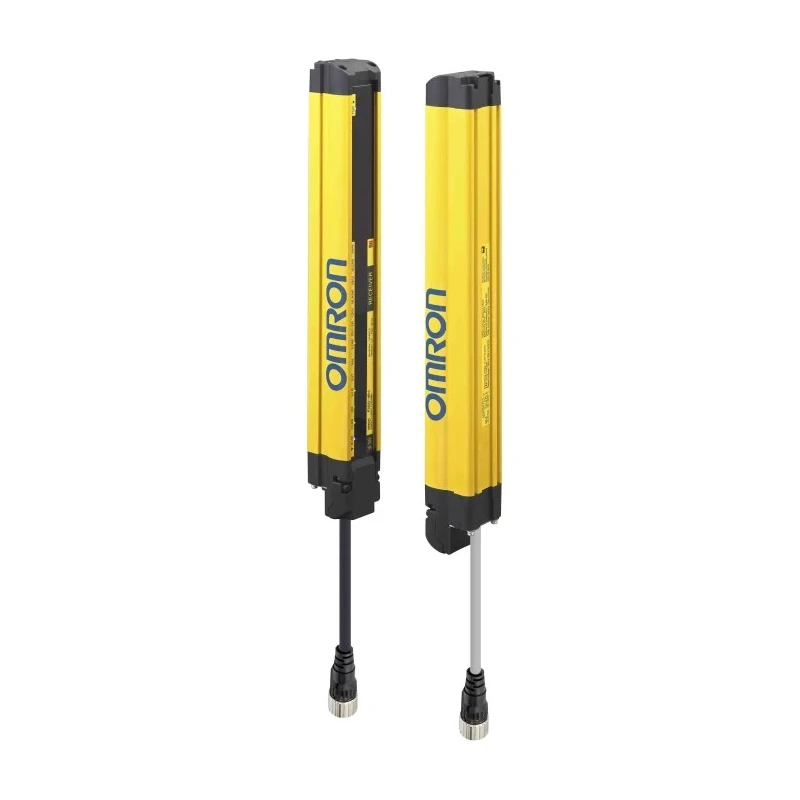

Omron F3SG Series Light Curtain Sender and Receiver 60 Beams 14 mm Resolution Type 4 Safety

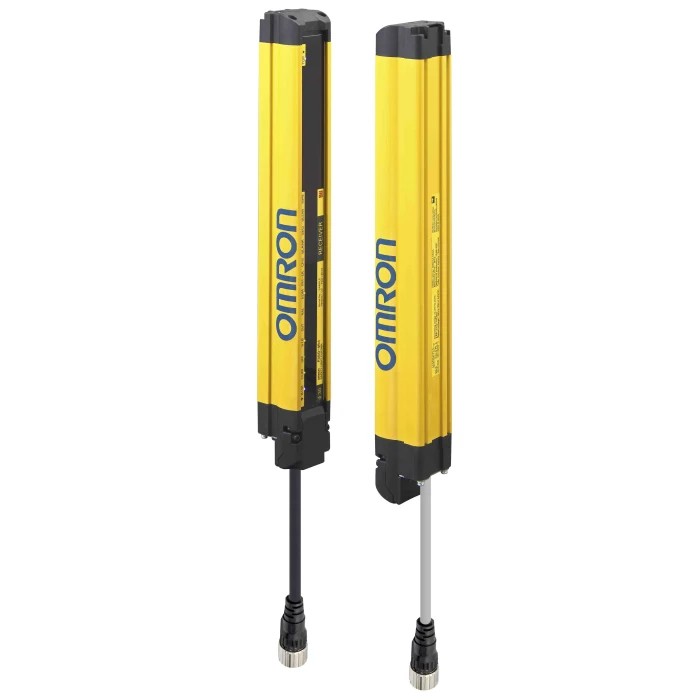

Omron F3SG-4RA0240-14 Light Curtain Sender and Receiver is a protective optical sensor system designed for industrial safety applications. This device creates a guarded area to protect personnel by detecting intrusions with 60 finely resolved infrared beams spaced at 14 mm intervals. The unit features a protective height of 240 mm, making it suitable for compact installations while allowing scalable coverage across production lines with a maximum protective width of 10 meters.

The system operates on a 24V supply, simplifying integration into standard industrial control and safety circuits. Its fast maximum response time of 8 milliseconds enables rapid interruption of hazardous machine movements, significantly reducing operator risk. Classified under Type 4 safety standards, this light curtain offers high-level risk reduction ideal for safeguarding point-of-operation on assembly machinery, conveyor transfer zones, robotic collaborative boundaries, and perimeter protection of automated industrial cells.

Installation allows for flexible scanning distances, from as close as 0.3 meters up to 10 meters, accommodating diverse layouts and hazard zones. Alignment between transmitter and receiver is achieved by matching optical axes until stable beam synchronization is established to ensure reliable detection. This makes the F3SG light curtain a highly adaptable safety device for various industrial, manufacturing, and automation environments.

Key technical features include a robust 60-beam array, fine 14 mm beam resolution for small-part detection, rapid 8 ms response, and Type 4 safety certification. These capabilities combined provide precise, dependable safeguarding for automated and manual production processes requiring strict access control and personnel protection.

Features 60 infrared beams for fine object detection. Offers 14 mm beam resolution to sense small objects accurately. Protective height of 240 mm suitable for compact installation. Operates with a 24V supply for easy integration with control systems.

Maximum protective width up to 10 meters for scalable coverage. Fast response time of 8 ms for rapid fault interruption. Type 4 safety classification ensures high-risk protection standards. Supports detection ranges from 0.3 to 10 meters for installation flexibility.

Ideal for guarding assembly machinery and conveyor transfer zones. Suitable for robot safety and perimeter protection of automated cells.

This Omron F3SG Series light curtain is essential for ensuring personnel safety in industrial automation, manufacturing lines, HVAC control areas, and laboratory environments requiring precise hazard area protection. Browse EnvMart’s complete range of Safety Light Curtains for tailored solutions to your industrial safety needs.
