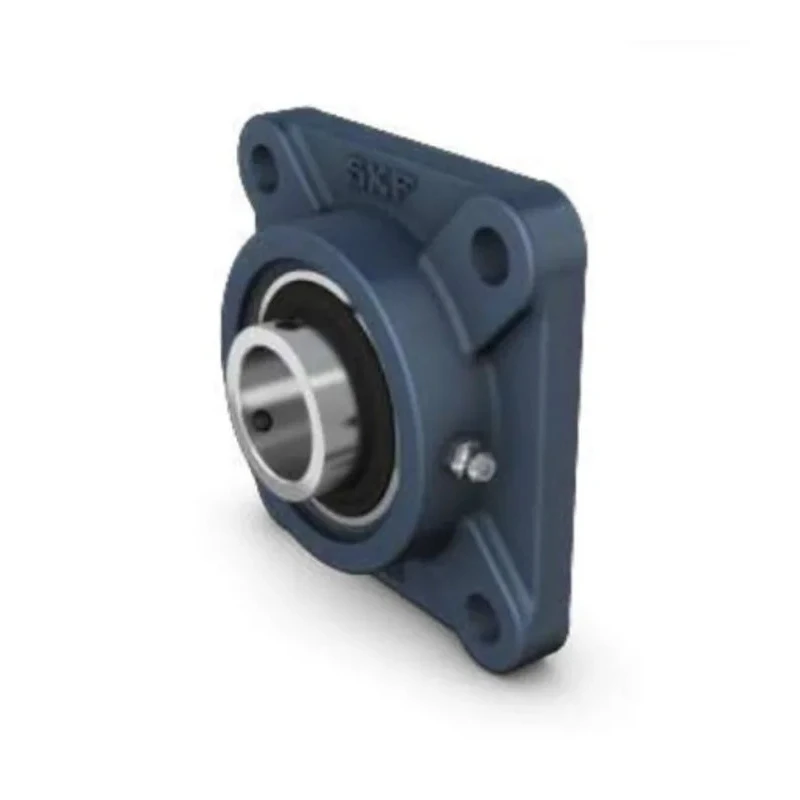

SKF 4 Hole Cylindrical Flange Bearing Unit with 76.2 mm Inside Diameter, Cast Iron Housing, Set Screw Locking UCF 315-48

Free Delivery in India | Lowest Global Shipping Charges

SKF 4 Hole Cylindrical Flange Bearing Unit with 76.2 mm Inside Diameter, Cast Iron Housing, Set Screw Locking UCF 315-48



Category Bearing Units Brand SKF Condition New

Specifications

Country of Origin	China
Brand	SKF
Material	Cast Iron
Length	229mm
Model	UCF 315-48
Depth	184mm
Width	89mm
Series	UCF
Inside Diameter	76.2mm
Limiting Speed	2300rpm
End Type	Open
Bore Type	Cylindrical
Static Load Rating	76.5kN
Dynamic Load Rating	114kN
Mount Hole Size	25 mm
Mount Hole Centre-to-Centre	184mm
Number of Mount Holes	4
Locking Type	Set Screw

Key Features

The unit has four mounting holes for secure fixing.
Locking is achieved with a set screw for reliable shaft retention.
The flange bearing housing is made from durable cast iron.
The bore type is cylindrical, accommodating shaft installation.
It achieves a limiting speed of 2300 rpm for efficient operation.
Static and dynamic load ratings are 76.5 kN and 114 kN respectively, supporting heavy loads.
Mount hole centre-to-centre distance is 184 mm with 25 mm mount hole size.
The end type is open to facilitate lubrication and inspection.

Product Description

SKF UCF 315-48 flange bearing unit is a precision engineered product designed for reliable rotary support with a 76.2 mm inside diameter. Its cast iron housing provides superior mechanical strength and resistance in industrial environments. The bearing insert features a cylindrical bore and is locked in place using set screws, ensuring secure shaft mounting.

This four-hole flange bearing unit has an open end design allowing easy lubrication and maintenance. The unit supports static and dynamic loads rated at 76.5 kN and 114 kN respectively, capable of handling heavy-duty industrial loads effectively. It is designed for a limiting speed up to 2300 rpm, suitable for many mechanical power transmission applications.

Dimensions of the bearing unit include length 229 mm, width 89 mm, and depth 184 mm, with mounting holes spaced 184 mm centre-to-centre. The mounting holes measure 25 mm in diameter, facilitating bolted installation on various support surfaces.

SKF's Y bearing series provides proven performance and durability for applications such as manufacturing machinery, conveyor systems, agricultural equipment, and HVAC drives. The construction ensures quick and easy mounting onto shafts with a high degree of operational reliability.

The unit includes standard seals with additional flingers to prevent contamination. The cast iron housing withstands industrial wear and challenging environments. The locking set screw mechanism enables fast and secure fixing on shafts.

This bearing unit meets SKF’s rigorous quality and manufacturing standards. Suitable for use in mechanical, fluid power, and tools industrial sectors.

Manufactured in China, the SKF UCF 315-48 maintains high-quality control assuring long service life. This product is ideal for diverse rotary applications requiring solid bearing support combined with easy installation.
