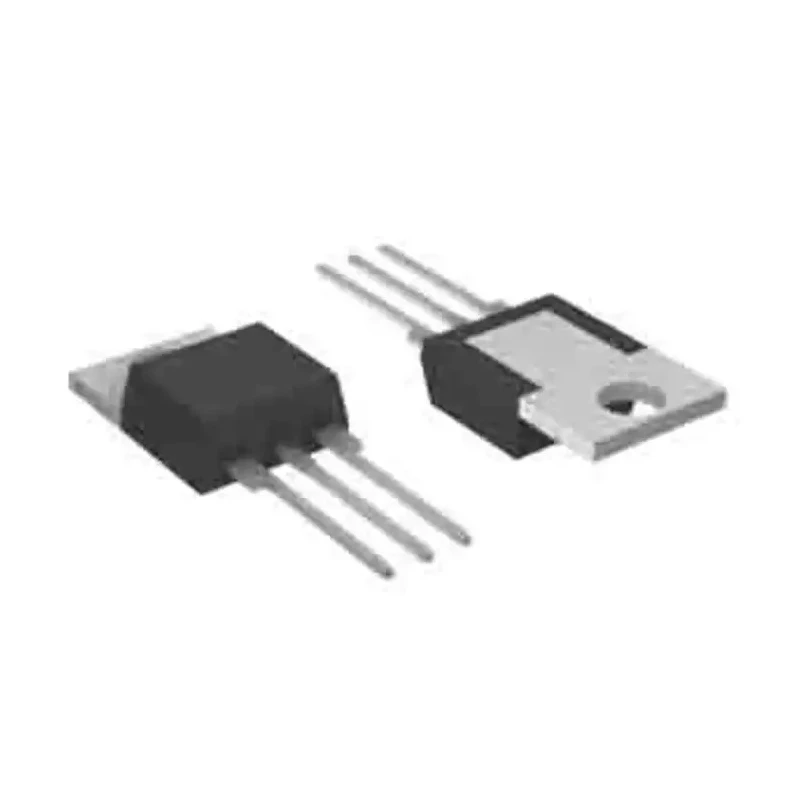

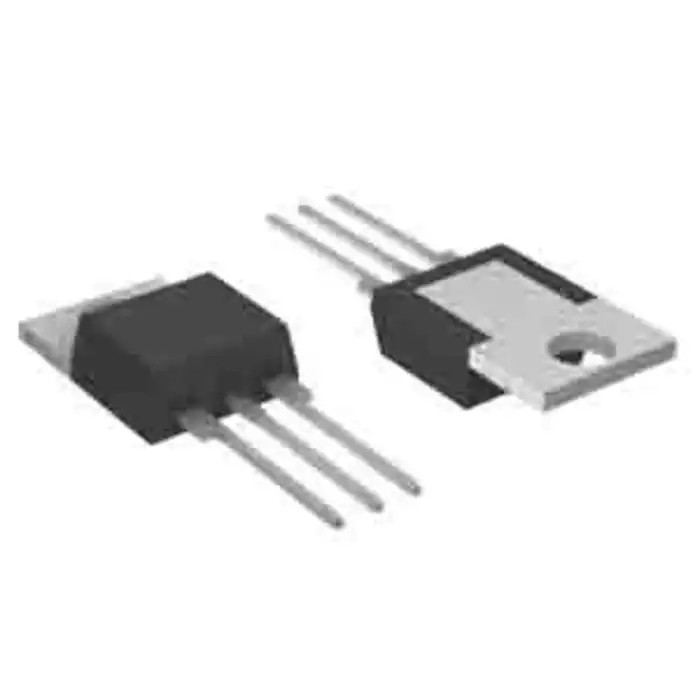

Littelfuse Thyristor SCR 600 V 20 A TO-220L Package SV6020L1TP

The Littelfuse SV6020L1TP is a high-performance thyristor featuring a Silicon Controlled Rectifier (SCR) technology housed in a TO-220L package, designed for through hole mounting. It operates efficiently at a repetitive peak reverse voltage of 600 V and supports a rated average on-state current of 20 A, making it suitable for various power control and switching applications in industrial electronics.

This device has a robust surge current handling capability rated at 300 A, ensuring reliability during transient events. The maximum gate trigger current is 6 mA with a corresponding trigger voltage of 1.5 V, facilitating rapid and reliable device activation. Additionally, the maximum holding current of 22 mA helps maintain the thyristor in the ON state under normal operating conditions.

The device supports a wide operating temperature range from -40°C up to 150°C, allowing it to function reliably in harsh environmental conditions commonly found in industrial and power electronics setups.

It complies with the RoHS directive, ensuring the thyristor meets environmental safety and hazardous substance reduction standards. The SV6020L1TP is part of the SVxx20xx series, recognized for its consistent electrical and mechanical performance.

Typical applications include power supplies, motor control, heating regulation, and other industrial equipment requiring controlled rectification and switching. Equipped with TO-220L package for efficient heat dissipation.

Maximum surge current rating of 300 A for transient tolerance. Gate trigger current at 6 mA and trigger voltage at 1.5 V. Wide operating temperature range from -40°C to 150°C. RoHS compliant for environmental safety. Rated average on-state current of 20 A.

Through hole mount type. For more components like this, explore the Semiconductor and Thyristor categories on EnvMart.
