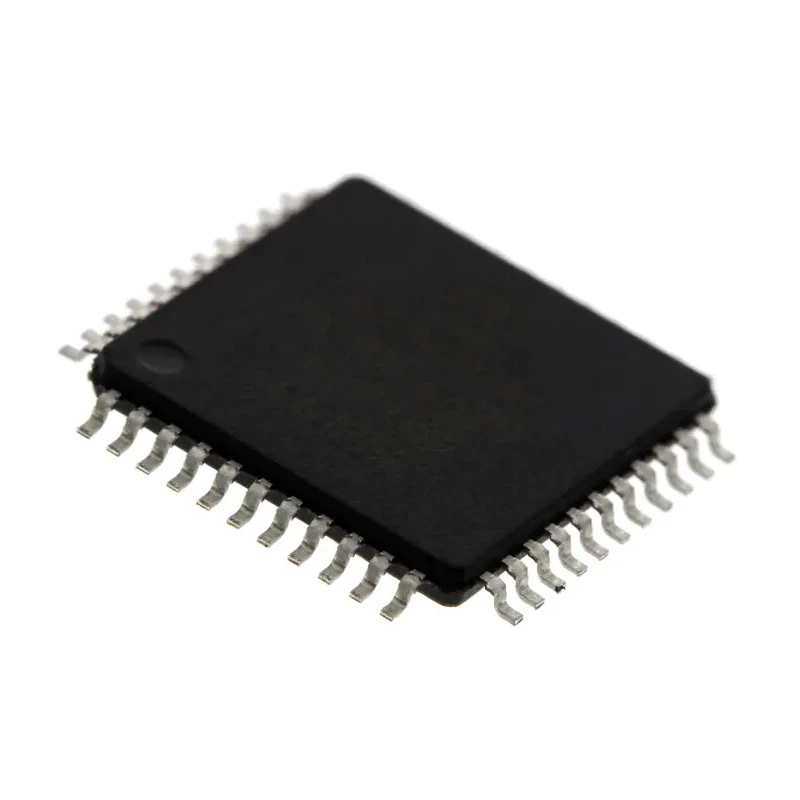

Microchip PIC18F4620-E/PT 8 bit PIC Microcontroller 40 MHz 1.024kB Program Memory 64 kB FLASH 44-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F4620-E/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 125°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.99kB |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 4.2V |
| Device Core | PIC |
| Program Memory Size | 1.024, 64kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 1.02kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 40 MHz.
- Includes 1.024kB of program memory and 3.99kB RAM.
- Offers 36 programmable I/Os with a 44-pin surface mount package.
- Designed to function over a temperature range from -40°C to 125°C.
- Supports 13-channel 10-bit ADC inputs and two analog comparators.
- Features include Power-On Reset, Brown-Out Reset, and Watchdog Timer integration.
- Utilizes FLASH memory type for program storage.
- Maximum supply voltage of 5.5V and minimum of 4.2V ensures robust operation.
Product Description
Microchip PIC18F4620-E/PT is an advanced 8-bit PIC microcontroller designed for embedded systems requiring high performance. It features a maximum CPU speed of 40 MHz, delivering up to 10 MIPS processing capability. The device includes 1.024kB of program memory and 3.99kB of RAM, with a total of 64 kB FLASH memory, making it suitable for complex applications.
This microcontroller comes in a 44-pin Thin Quad Flat Package (TQFP) with surface mount technology and 36 programmable input/output pins, enhancing connectivity options. It supports a broad operating temperature range from -40°C to 125°C, ensuring reliable performance in industrial and automotive environments.
The device integrates 13-channel 10-bit Analog-to-Digital Converters (ADCs), two analog comparators, four timers, and communication peripherals such as MSSP supporting SPI and I2C, and an enhanced USART for serial communication. Various power management features like nanoWatt Technology, Power-On Reset, Power-Up Timer, Brown-Out Reset, and Extended Watchdog Timer contribute to system stability and power efficiency.
The PIC18F4620-E/PT employs a Reduced Instruction Set Computer (RISC) architecture with 75 instructions, providing efficient instruction execution and enhanced code density. It includes a 31-level hardware stack and internal oscillator with selectable frequencies between 8 MHz and 31 kHz, giving flexible clock control.
Typical applications include industrial automation, automotive controls, communications, instrumentation, and consumer electronics. This microcontroller offers a robust feature set for developers designing embedded solutions requiring versatile peripheral integration and power efficiency.
Operates at 40 MHz max clock frequency for fast execution. Includes 1.024kB program memory FLASH for large code footprint. Supports 36 programmable I/O pins for flexible interfacing. Integrated ADCs and comparators for analog signal processing.
Wide operating temperature range from -40°C to 125°C suits diverse environments. Power management features improve reliability and reduce consumption. RISC architecture with 75 instructions ensures efficient code execution.
Enhanced communication peripherals support SPI, I2C, and USART protocols. Compact 44-pin TQFP package designed for modern PCB assembly. Ideal for embedded applications in industrial and automotive sectors. Explore more Microcontrollers and semiconductor products suitable for your embedded design needs with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It includes 1.024 kB of program memory and a total of 64 kB of FLASH memory.
The operating temperature range is from -40°C to 125°C.
This microcontroller features 36 programmable I/O pins.
It comes in a 44-pin Thin Quad Flat Package (TQFP) designed for surface mount technology.
The maximum supply voltage is 5.5V, and the minimum supply voltage is 4.2V.
It supports 13-channel 10-bit Analog-to-Digital Converters (ADCs) and two analog comparators.
The microcontroller has a RAM size of 3.99 kB.
It includes four timers for various timing applications.
This model employs a Reduced Instruction Set Computer (RISC) architecture with 75 instructions.
It supports communication protocols such as SPI, I2C, and enhanced USART for serial communication.
The dimensions are 1.05 mm in height and 10 mm in width.
