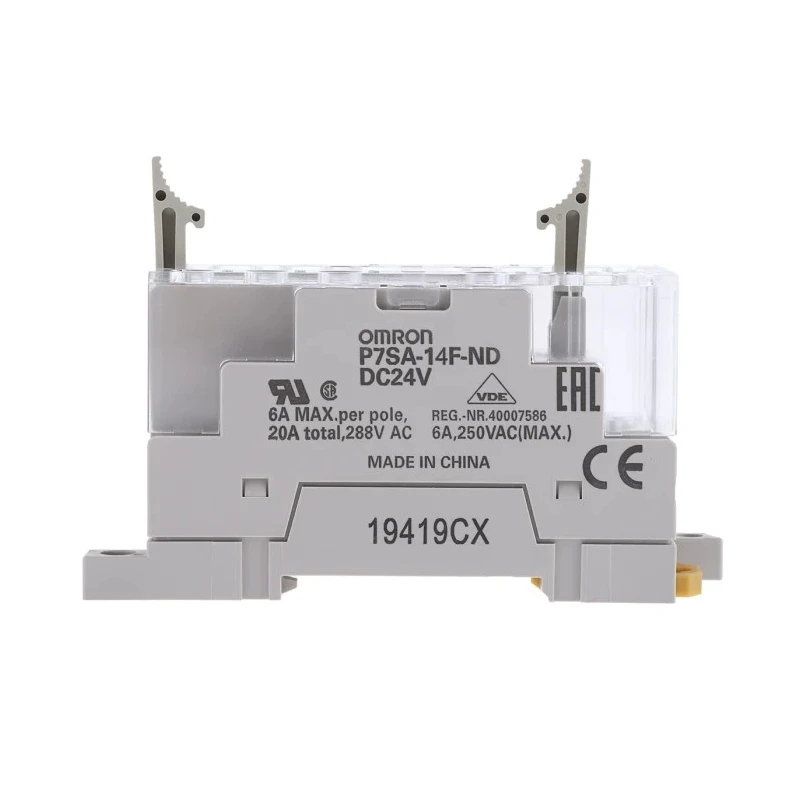

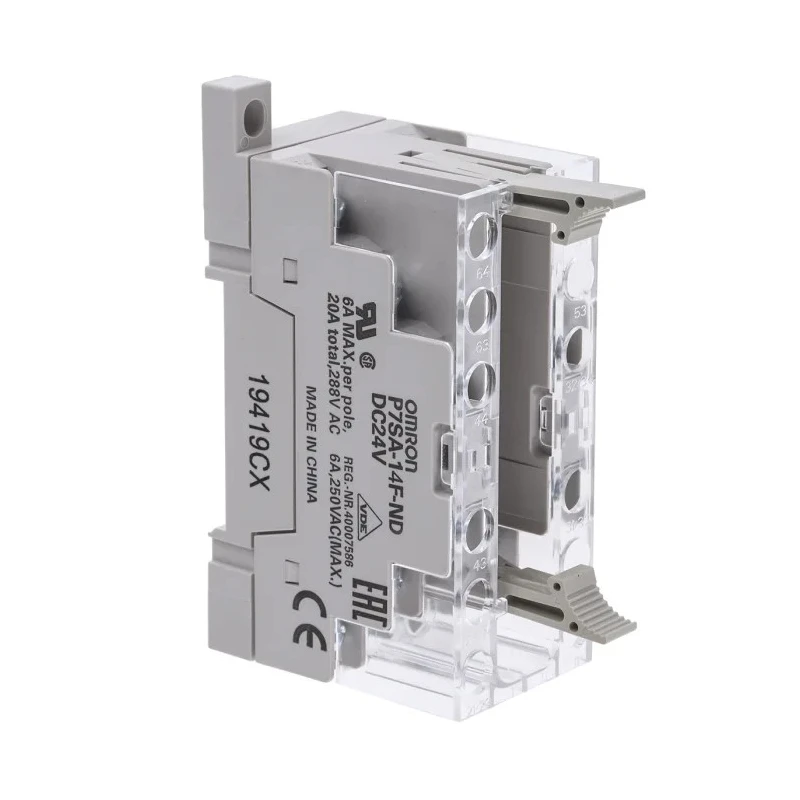

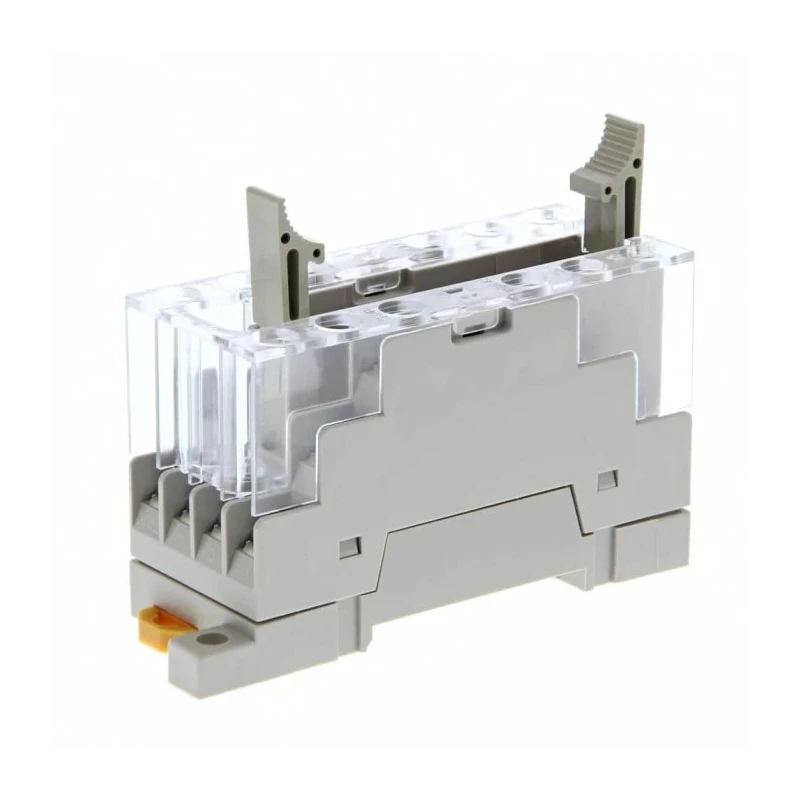

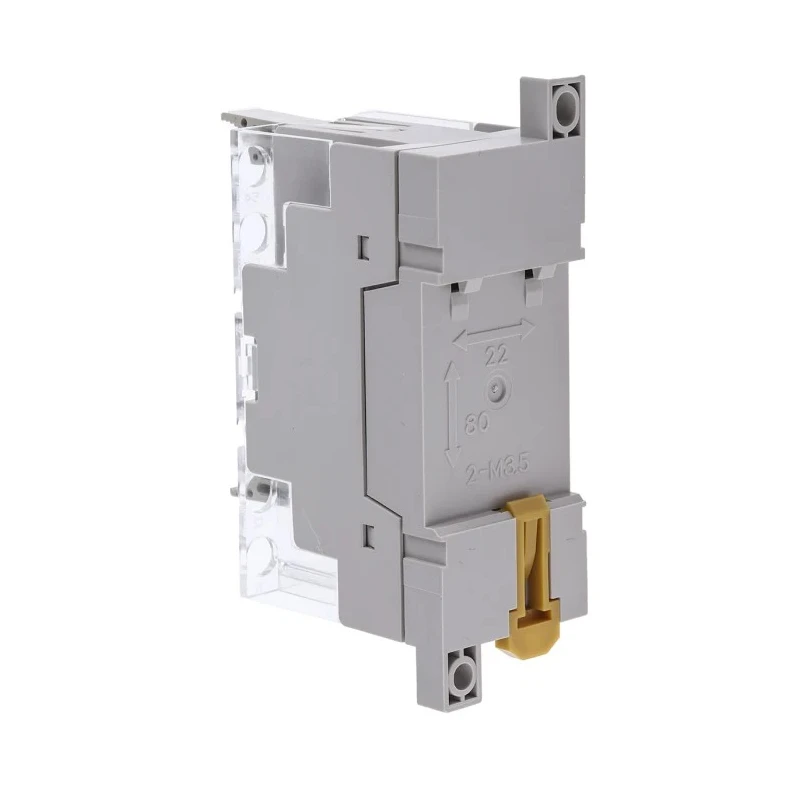

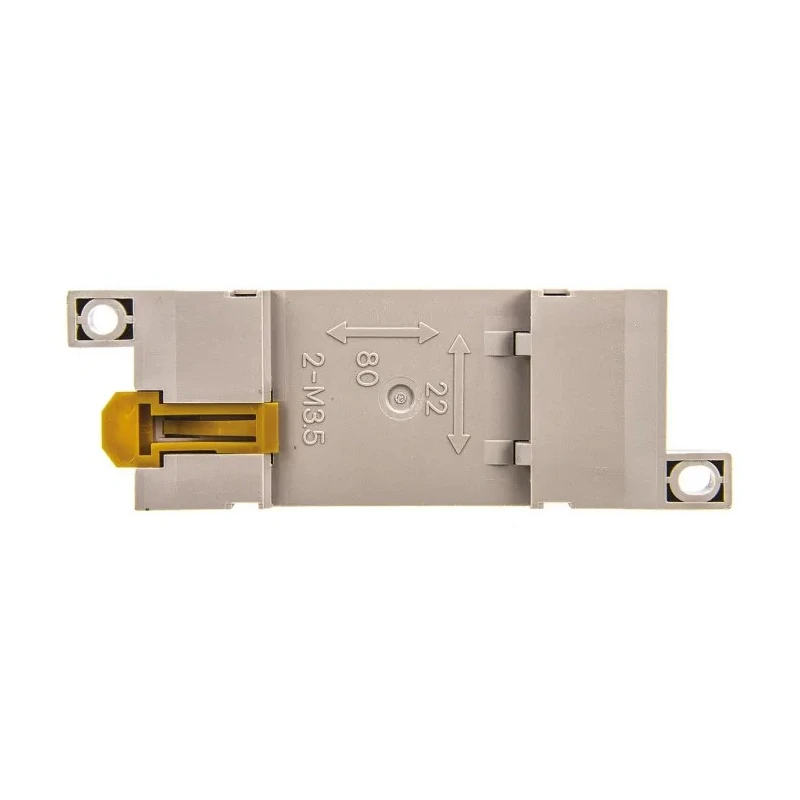

Omron Relay Socket 14 Way 24V DC Screw Terminal DIN Rail Mount P7SA-14F-ND 24VDC

Omron P7SA-14F-ND 24VDC is a 14 way DIN Rail relay socket designed specifically for use with G7SA Series relays. Operating at 24V DC and rated for 10A current, this relay socket provides a secure and reliable connection point supporting multiple contacts for complex switching tasks.

The socket features screw terminal connections, providing firm wiring with a tightening torque between 0.78 and 0.98 Nm to resist vibration and ensure long-term reliability in industrial environments. Its compact form factor with dimensions 104 mm (H) x 27.7 mm (W) x 65.5 mm (D) enables efficient use of space on the DIN rail.

For enhanced safety, the socket is rated for dielectric strength of 2500V AC, providing ample electrical insulation to protect both personnel and equipment. An integrated LED indicator offers visual feedback for easy monitoring of relay status during operation.

Designed to meet rigorous international certifications and standards such as EN 61984, UL508, CE marking, S-mark, TÜV, and CSA C22.2 No. 14, the P7SA-14F-ND 24VDC socket is suitable for demanding industrial applications in automotive, marine, oil and gas, and renewable energy sectors including wind turbines and solar panel systems.

Easy to install on standard DIN rails, this relay socket supports solid and stranded wires, allowing flexible wiring options to suit installation requirements. This product is manufactured in China under the Omron brand, known for quality and durability in electrical components and automation products.

Supports up to 14 contacts for versatile relay applications. Features screw terminal connections ensuring reliable electrical contact. Designed for DIN rail mounting, facilitating compact and standardized installation. Operates at 24V DC voltage and supports current up to 10A.

Equipped with visual LED indication for easy status monitoring. Compact dimensions of 104 mm height, 27.7 mm width, and 65.5 mm depth for space-saving installation. Dielectric strength rated at 2500V AC to ensure electrical insulation and safety.

Compliance with international standards including EN 61984, UL508, VDE, CE marking and others. Suitable for automotive, marine, oil and gas, and renewable energy applications. Explore more high-quality Relay Sockets and Omron electrical components on EnvMart.
