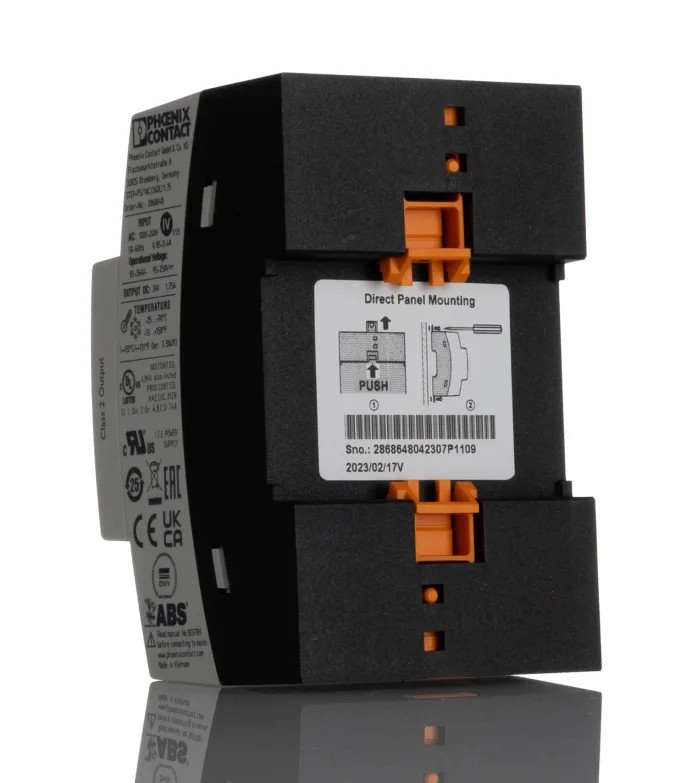

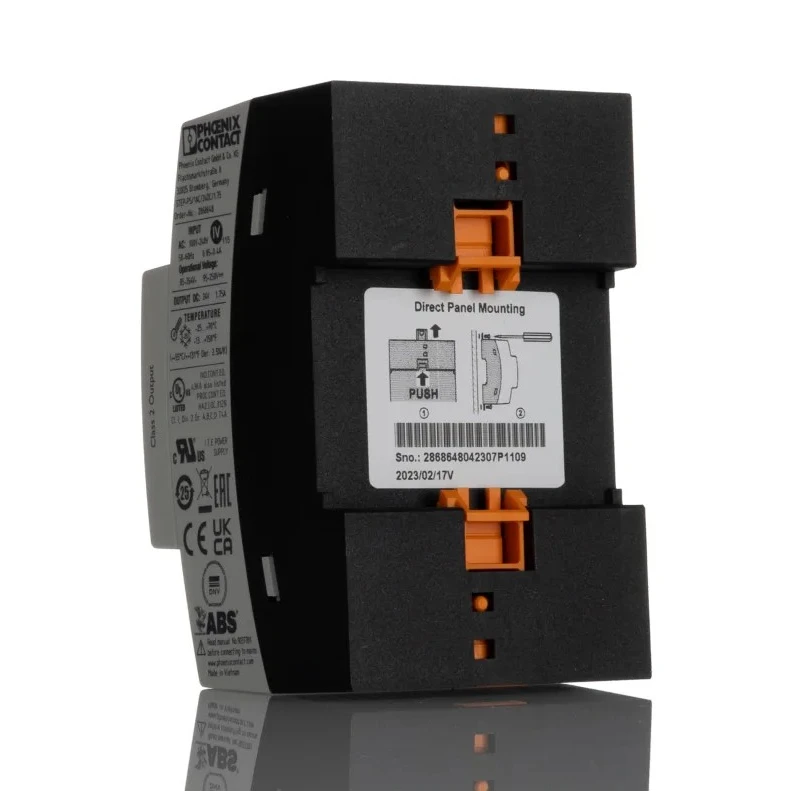

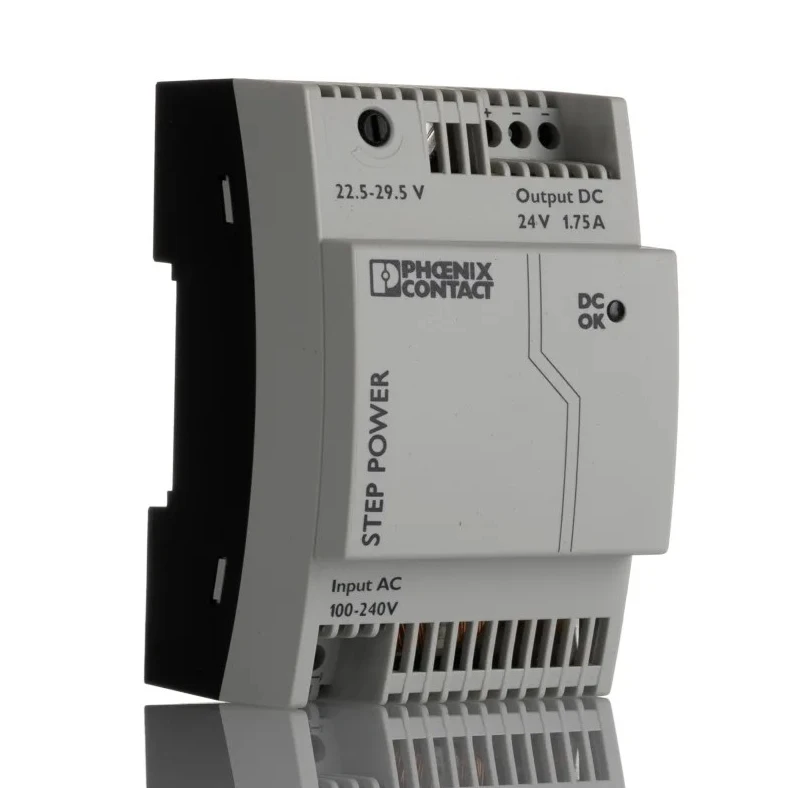

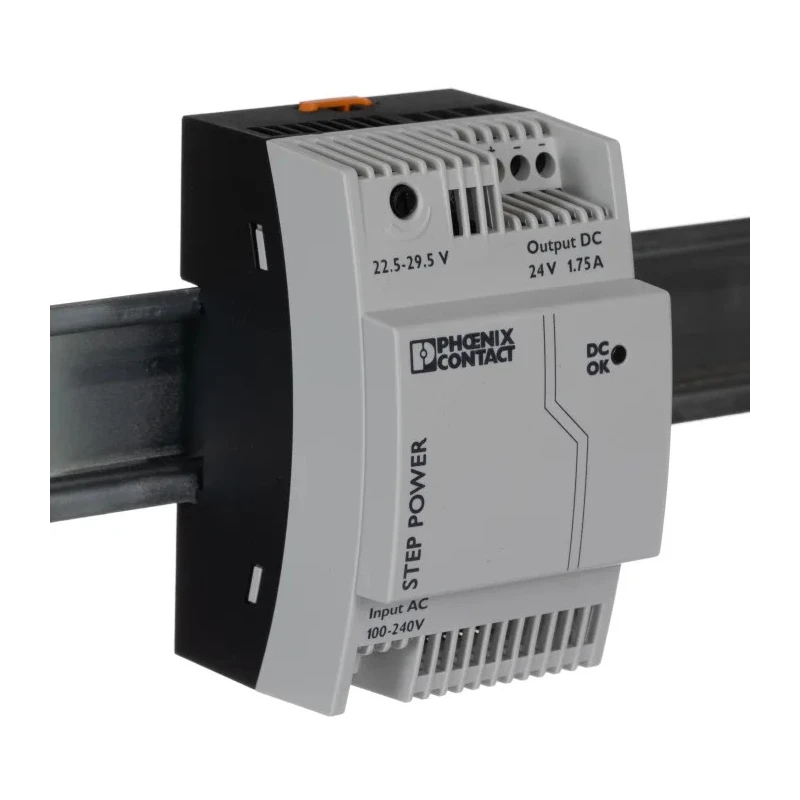

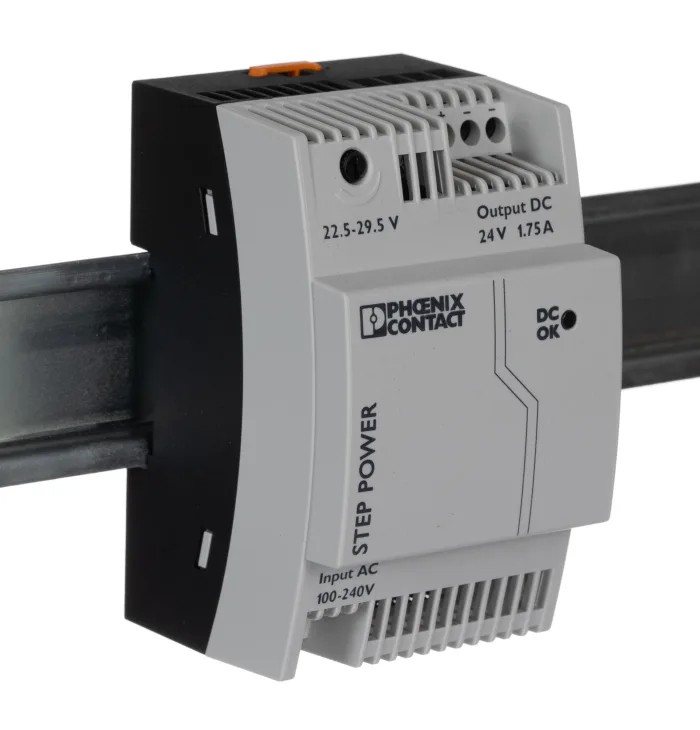

Phoenix Contact Switched Mode DIN Rail Power Supply 264V AC Input 29.5V DC, 1.75A Output, 42W STEP-PS/1AC/24DC/1.75 2868648
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Phoenix Contact |
| Power | 42W |
| Efficiency | 89% |
| Height | 90mm |
| Model | 2868648 |
| Depth | 90mm |
| IP Rating | IP20 |
| Width | 54mm |
| Series | STEP-PS/1AC/24DC/1.75 |
| Output Current | 1.75A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 29.5V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Compact form factor fitting DIN rail mounting with dimensions 90mm (H) x 54mm (W) x 90mm (D).
- Operates over wide input voltage range from 85V AC to 264V AC.
- Efficient operation with up to 89% energy efficiency to minimize power loss.
- Wide operating temperature range from -25°C up to +70°C for challenging environments.
- Single output channel with regulated DC voltage suitable for industrial automation.
- LED function monitoring for easy power status indication.
- Ingress protection rating of IP20 provides protection against insertion of fingers and small objects.
- Complies with EN 61000-4-2, EN 61000-6-3, EN 61000-4-6, and EN 61000-4-4 electromagnetic standards.
Product Description
Phoenix Contact 2868648 STEP-PS/1AC/24DC/1.75 is a switched mode power supply designed for DIN rail mounting offering a stable 29.5V DC output at 1.75A with 42W power capability. Its robust design ensures dependable power delivery for industrial automation, control cabinets, and electrical distribution systems.
The unit supports a versatile AC input voltage range between 85V and 264V, accommodating fluctuating line conditions commonly found in industrial settings. With a high efficiency of 89%, it minimizes energy waste and reduces heat generation during operation.
Measuring just 90mm in height, 54mm width, and 90mm depth, this power supply fits compactly on standard 35mm DIN rails, optimizing space in crowded electrical enclosures. It features IP20 protection which safeguards against accidental finger contact and intrusion by small tools or wires.
To enhance reliability, the power supply employs LED indicators for real-time function monitoring and is built to exceed 500,000 hours mean time between failures, ensuring extended service life in harsh industrial environments. It operates efficiently across temperature extremes from -25°C up to +70°C.
Compact switched mode DIN rail power supply with regulated 29.5V DC output. High efficiency of 89% reduces energy consumption and heat production. Wide input voltage tolerance (85 to 264V AC) supports diverse supply conditions.
Single output capable of 1.75A and 42W for a variety of automation applications. LED status display simplifies power supply monitoring and troubleshooting. Designed with IP20 ingress protection for safety in industrial environments.
Compliant with multiple EN electromagnetic compatibility standards. Robust construction ensuring more than 500,000 hours mean time between failures. Compact dimensions enable easy installation in crowded control panels. Operating temperature range from -25°C to +70°C supports operation in tough conditions.
This DIN rail power supply is ideal for industrial, automation, manufacturing, electrical distribution, and control panel applications requiring stable, efficient DC power. Select Phoenix Contact power supplies on EnvMart for reliable power management solutions.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output voltage of 29.5V DC and an output current of 1.75A.
The power supply operates over a wide input voltage range from 85V AC to 264V AC.
This unit has an efficiency rating of up to 89%, which helps minimize energy loss.
It measures 90mm in height, 54mm in width, and 90mm in depth, making it compact for DIN rail mounting.
It operates efficiently in a temperature range from -25°C to +70°C.
It features a single output channel.
This model complies with EN 61000-4-2, EN 61000-6-3, EN 61000-4-6, and EN 61000-4-4 standards.
The maximum power output is 42W.
The country of origin for this power supply is Vietnam.
This model belongs to the STEP-PS series.
