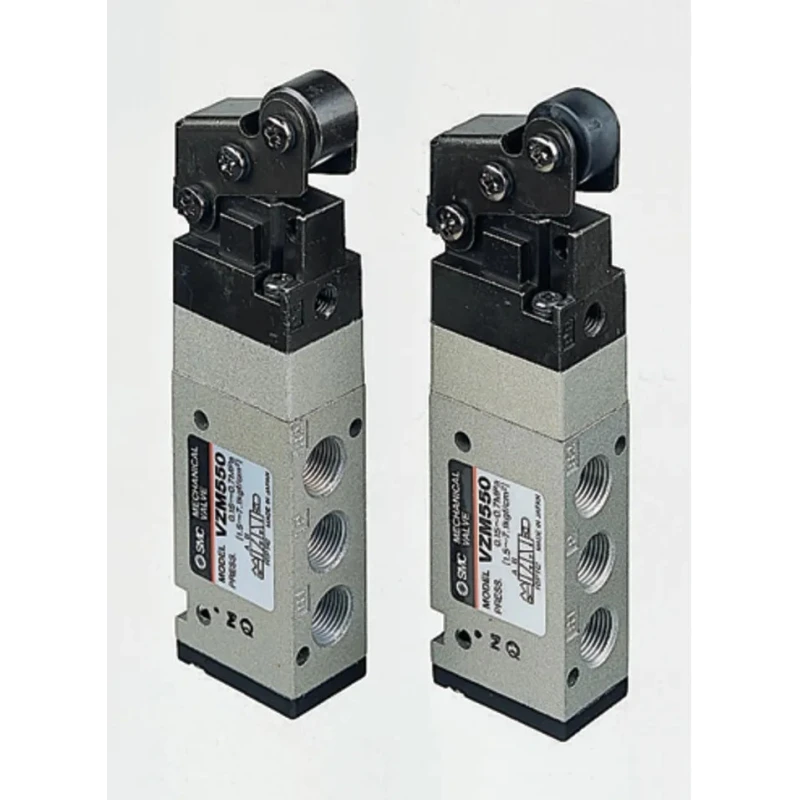

SMC Pneumatic Solenoid Valve 5/2 Pilot G 1/8 Aluminium Alloy, Nitrile Rubber Seals EVZM550

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5/2 Pilot G 1/8 Aluminium Alloy, Nitrile Rubber Seals EVZM550



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	0.7 Mpa
Height	28mm
Length	70.6mm
Model	EVZM550
Width	18mm
Mount Type	Panel
Series	EVZM550
Number Of Ports	5
Maximum Operating Temperature	60°C
Port Size	1/8 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-5°C
Actuation Type	Pilot
Maximum Flow Rate	534.9NL/min
Connection Thread Standard	G 1/8
Mount Pattern	DIN
Minimum Pilot Pressure	0.15MPa
Valve Function	5/2
Port Gender	Female

Key Features

5/2 valve function controls pneumatic flow with five ports and two positions.
Constructed with durable aluminium alloy body for long-lasting performance.
Sealed with nitrile rubber (NBR) to ensure reliability and leak prevention.
Panel mount type with DIN mount pattern for secure installation.
Operates at a maximum pressure of 0.7 MPa suitable for various pneumatic applications.
Supports a maximum flow rate of 534.9 NL/min for efficient air handling.
Designed for operating temperatures from -5°C up to 60°C to suit diverse industrial environments.
Compact dimensions of 70.6 mm length, 28 mm height, and 18 mm width allow flexible integration.

Product Description

SMC EVZM550 Pneumatic Solenoid Valve is a high-quality 5/2 pilot valve designed for accurate control of compressed air in various industrial pneumatic systems. Featuring a robust aluminium alloy body and nitrile rubber (NBR) seals, it guarantees durability and reliable sealing performance under varying conditions.

This valve is panel mountable with a DIN mount pattern, ensuring ease of installation in complex automated systems. It operates efficiently within a temperature range of -5°C to 60°C and can handle a maximum operating pressure of 0.7 MPa, making it suitable for diverse manufacturing, automotive, and process control environments.

The valve function of 5/2 provides five ports and two positions to control air flow paths, supporting a flow rate up to 534.9 NL/min, which enhances pneumatic actuator responsiveness. The connection thread standard is G 1/8 with female port gender, aligning with common pneumatic fitting standards for secure connections.

Its compact dimensions (Length: 70.6 mm, Height: 28 mm, Width: 18 mm) allow integration into space-restricted panels and machinery. The minimum pilot pressure of 0.15 MPa ensures that the pilot actuation functions reliably, critical for precision operations.

5/2 valve function manages pneumatic flow with five ports and two positions. Durable aluminium alloy body for sustained industrial use. Nitrile rubber seals provide effective leak prevention. Panel mountable with standard DIN pattern.

Handles maximum operating pressure of 0.7 MPa. Maximum flow rate of 534.9 NL/min supports efficient air control. Operational temperature range between -5°C and 60°C. Compact size for versatile mounting options. Female port gender with G 1/8 connection thread.

Requires minimum pilot pressure of 0.15 MPa for actuation.

Ideal for industrial automation, manufacturing, HVAC, laboratory pneumatic applications, and fluid power control systems, this valve ensures reliable and precise pneumatic actuation. The EVZM550 series from SMC offers quality and performance trusted in demanding environments.
