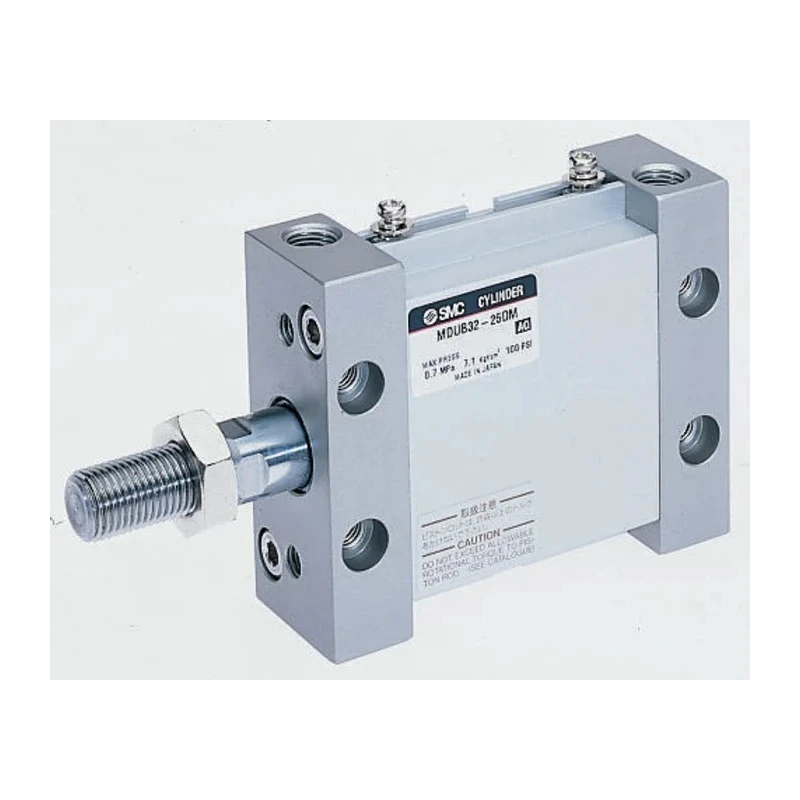

SMC 25 mm Pneumatic Piston Rod Cylinder MU Series Double Acting Aluminium Alloy Body MDUB32-25DMZ

SMC MDUB32-25DMZ Pneumatic Piston Rod Cylinder MU Series is an industrial-grade double acting pneumatic actuator designed for precise piston movement and reliable performance. With a bore size of 25 mm and stroke length of 25 mm, this cylinder combines compact dimensions and durable aluminium alloy body construction making it suitable for a wide range of pneumatic applications in manufacturing, automation, and fluid power systems.

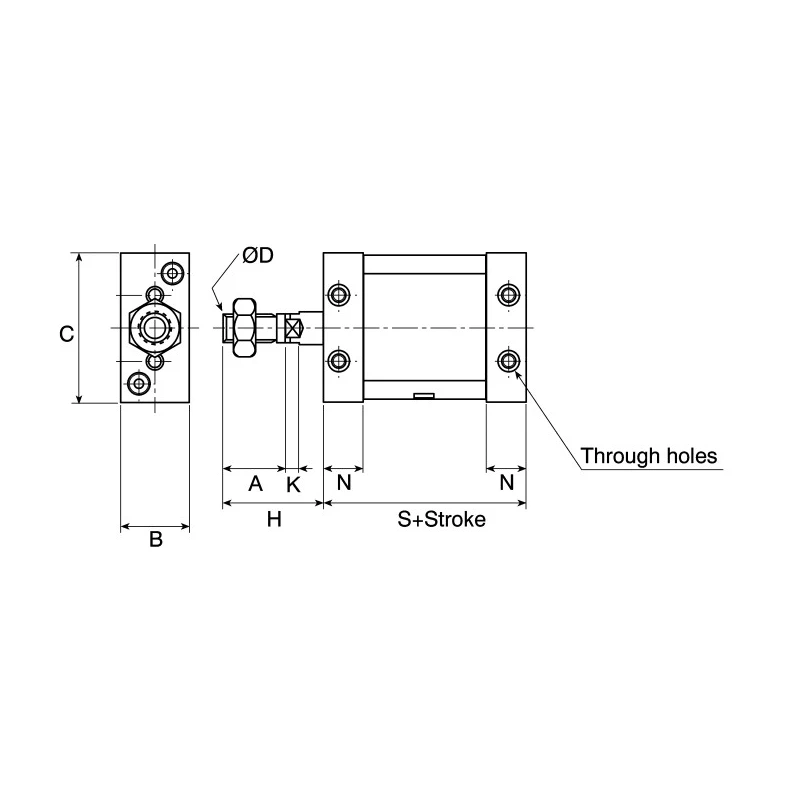

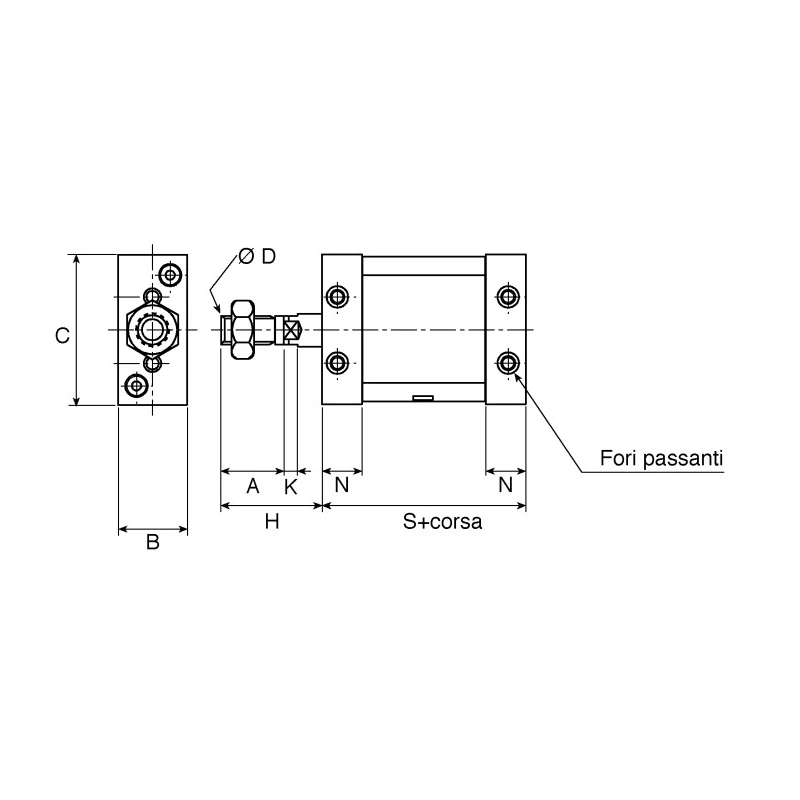

The MU Series cylinders employ a special piston design that saves installation space and allows mounting from all faces except the port face. The through hole mounting design simplifies integration into various assemblies while rubber cushioning ensures shock absorption and quiet operation.

This cylinder features a single, male metric-threaded piston rod designed for accurate and reliable mechanical linkage. Its maximum operating temperature rating of 60°C permits usage in standard industrial environments without degradation of materials.

The piston is non-rotating, improving precision and wear characteristics, and contains a built-in magnet enabling effortless auto-switch sensing for position feedback in automation systems. Its working pressure range is from 0.51 bar minimum to 7.1 bar maximum, with a proof pressure rated at 10.7 bar.

Maintenance is minimized as lubrication is not required. Mounting brackets are available separately to further facilitate easy installation and replacement. The cylinder is double acting for versatile piston control. Constructed with an aluminium alloy body ensuring lightweight durability.

Stroke length is 25 mm with a total length of 123 mm for compact installation. Equipped with a single male piston rod of metric thread standard for precise fitment. Rubber cushioning type provides smooth operation and noise reduction.

Designed for through hole mounting for flexible assembly options. Maximum operating temperature rated at 60°C for industrial environments. The piston includes a non-rotating design with built-in magnet suitable for auto-switch sensing.

Lubrication is not required, reducing maintenance needs. Suitable for industrial pneumatic cylinder applications requiring space-saving installation.

This Pneumatic Piston Rod Cylinder is ideal for industries implementing pneumatic automation, including manufacturing lines, packaging machinery, and fluid power actuator assemblies. Its robust construction and precise specifications meet demanding operational requirements.
