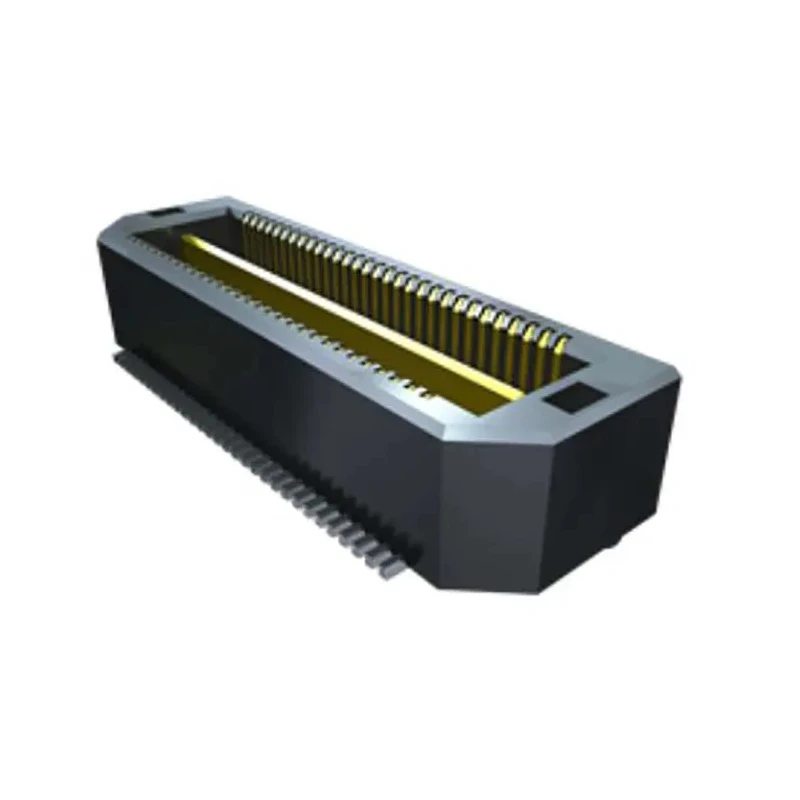

Samtec QTH Series Right Angle Surface PCB Header, 120 Contacts, 0.5 mm Pitch, 2 Row, Shrouded QTH-060-04-L-D-A-K-TR

Samtec QTH-060-04-L-D-A-K-TR is a high-quality right angle surface mount PCB header designed for board-to-board connections in electronic devices. With 120 contacts arranged in two rows and a fine pitch of 0.5 mm, this connector enables high-density PCB designs while maintaining excellent electrical performance.

The connector housing is fabricated from durable liquid crystal polymer, providing excellent mechanical strength and stability under various environmental conditions. The shrouded design helps to protect contacts from damage and misalignment during assembly, enhancing reliability in industrial, telecommunications, computing, and other electronics manufacturing sectors.

Contacts are made from phosphor bronze with a plating of either gold or tin to provide low contact resistance and high corrosion resistance, ensuring long-lasting and stable connections. This header is rated for a maximum current of 2.2 amperes and an operating voltage of 220 volts, making it suitable for moderate power electronic interfacing.

The operating temperature range from -55°C to 125°C allows this product to function reliably in demanding environmental conditions often encountered in aerospace, industrial automation, and HVAC control system applications.

Mounting is via surface mount technology with solder termination, facilitating automated PCB assembly and strong mechanical bonding to the board. The right-angle orientation suits designs requiring low profile and edge connector placement.

Features 120 male contacts arranged in 2 rows for enhanced connection density. Pitch of 0.5 mm provides fine spacing suitable for compact electronics. Constructed with a liquid crystal polymer housing for durability and heat resistance.

Surface mount type with shrouded and right-angle orientation for board-to-board connection. Contacts made of phosphor bronze with gold or tin plating for excellent conductivity and corrosion resistance. Operates reliably between -55°C to 125°C, suitable for various industrial applications.

Supports 2.2 A current rating and 220 V voltage for moderate power PCB connections. Termination by soldering ensures secure and permanent mounting on PCB.

This Samtec QTH series PCB header is widely used in electronics manufacturing, telecom infrastructure, and industrial hardware where reliable, high-density board-to-board connectivity is critical. It supports advanced PCB layouts with minimal footprint and excellent signal integrity.
