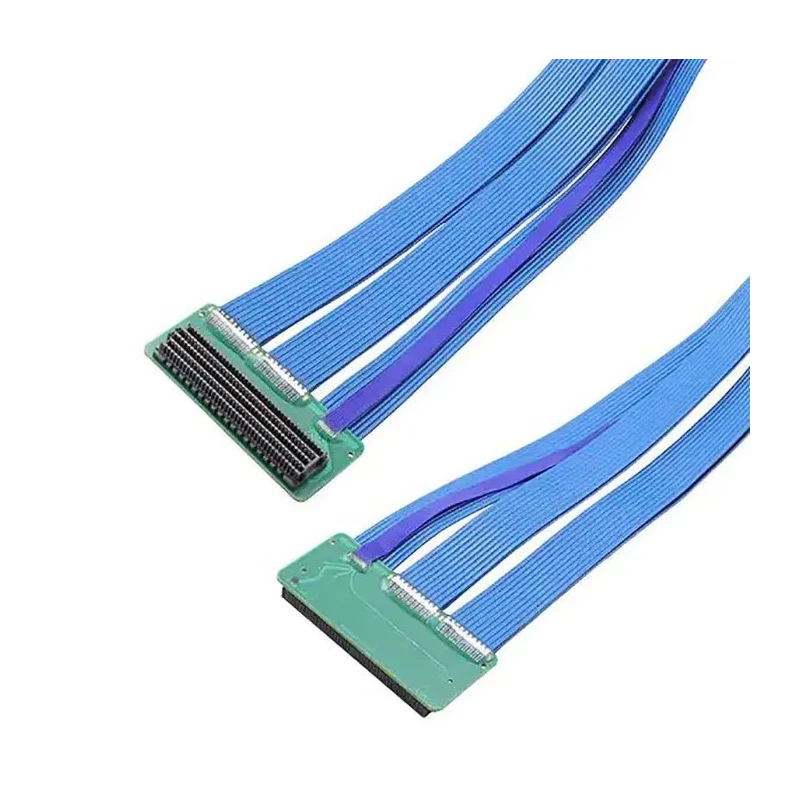

Samtec HDR Series Ribbon Cable Flat Ribbon 1.27 mm Pitch 507 mm Length HDR-169473-02

Samtec HDR-169473-02 is a high-quality ribbon cable from the HDR Series featuring a flat ribbon cable construction with a 1.27 mm pitch and 507 mm length. This cable assembly is engineered for efficient and reliable wire-to-board interconnections in electronic devices and systems.

The flat ribbon design facilitates easy routing in tight spaces and helps maintain wire organization in compact electronic assemblies. The 1.27 mm pitch allows for precise connector spacing, suitable for high-density electronic components.

This cable includes connector End A as a receptacle with 160 positions and connector End B as a plug with 160 positions, providing robust female/male mating configurations for secure and stable connections. The 32 AWG wire gauge used in the cable ensures signal integrity, flexibility, and durability.

Samtec’s HDR series cables comply with RoHS and UL standards, offering safety and environmental compliance required in industrial, laboratory, manufacturing, and commercial applications.

The cable features a flat ribbon design suitable for compact electronic assemblies. Pitch size of 1.27 mm supports precise connector spacing. Cable length is 507 mm, providing adequate reach in installation. Connector End A is a receptacle with 160 positions ensuring secure connections.

Connector End B is a plug with 160 positions matching the receptacle. Wire gauge of 32 AWG is used for signal integrity and flexibility. Female/male gender configuration enables proper mating. RoHS and UL compliant ensuring quality and safety.

This ribbon cable is ideal for use in electronics manufacturing, R&D labs, automation systems, and other industrial settings where reliable wire-to-board connection solutions are needed. Browse more in Ribbon Cables category on EnvMart for compatible accessories and related products.
