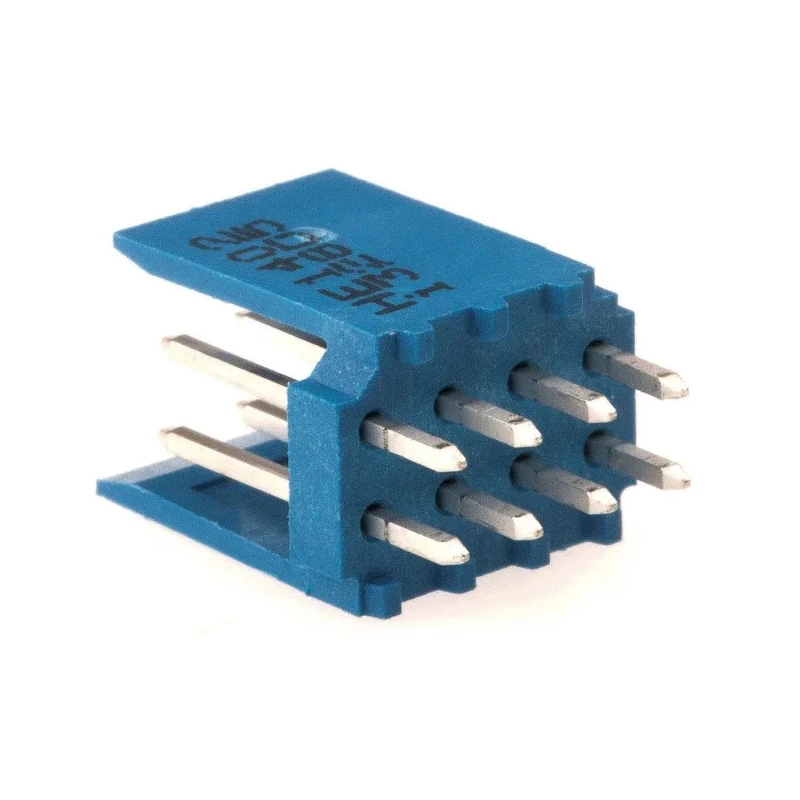

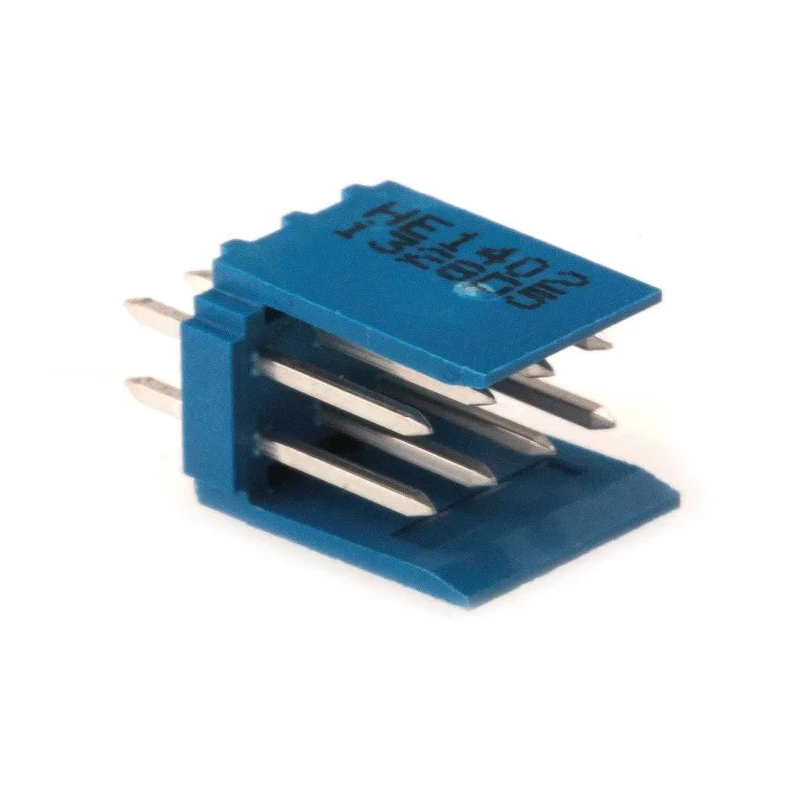

NEUTRAL AMPMODU Series Straight Through Hole PCB Header 8 Contact 2.54 mm Pitch 2 Row Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Straight |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| HE14 8W 2/ROW STRT HDRBrand | NEUTRAL |
Key Features
- Features a high temperature UL 94V-0 rated thermoplastic housing for durability.
- Polarized housing prevents mismating of connectors.
- Shrouded construction protects pins and integrates friction lock for secure mating.
- Suitable for 3A current and 500V voltage applications.
- Male contact gender with phosphor bronze contacts plated in tin for reliable conductivity.
- Through-hole mount type with solder termination for PCBs.
- Operating temperature range from -40°C to 105°C for diverse environments.
- Designed for wire-to-board connector system use cases.
Product Description
TE Connectivity HE14 PCB Header model 281739-4 is a straight, through-hole type connector featuring 8 contacts arranged in 2 rows with a 2.54 mm pitch. It is shrouded to protect the pins and ensure proper alignment during mating. The blue thermoplastic housing complies with UL 94V-0 standards, providing high temperature resistance and robustness for industrial applications.
This PCB header is designed with polarization features to prevent incorrect connection and integrates a friction lock mechanism that secures the connector during operation. The male contacts are made of phosphor bronze with tin plating for excellent electrical conductivity and corrosion resistance.
Rated for 3A current and a maximum voltage of 500V, it is suitable for a range of electronic and industrial environments, including automotive controls, telecommunications, computing equipment, and medical instruments. The component tolerates operating temperatures from -40°C to 105°C making it reliable in harsh conditions.
Its through-hole solder termination mount supports wire-to-board connection systems, compatible with AMPMODU HE14 IDC receptacle assemblies designed for discrete wires or ribbon cables.
High temperature UL 94V-0 thermoplastic housing. Polarized design to prevent mismating. Protective shroud with integrated friction lock. 8 contacts arranged in 2 rows with 2.54 mm pitch. Phosphor bronze contacts with tin plating for durability.
Operating temperature range from -40°C to 105°C. Solder termination for through-hole PCB mounting. Compatible with AMPMODU HE14 IDC receptacles and wire-to-board systems.
This product is ideal for industrial, telecommunications, computing, automotive, and medical instrument applications. Explore more PCB Headers and connectors in the Electronics Components category on EnvMart to find suitable accessories and complementary components for automation and control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 500V.
This model is rated for a maximum current of 3A.
The contacts on this connector have a pitch of 2.54 mm.
The contacts are made of phosphor bronze with tin plating, while the housing is constructed from thermoplastic material.
It operates within a temperature range of -40°C to 105°C.
This connector features 8 contacts arranged in 2 rows.
This model uses solder termination for through-hole PCB mounting.
Yes, it has a polarized housing that prevents mismating of connectors.
It is compatible with wire-to-board connector systems and AMPMODU HE14 IDC receptacle assemblies.
The tail pin length of this connector is 2.9 mm.
This PCB header has a straight orientation.
This product is manufactured in India.
