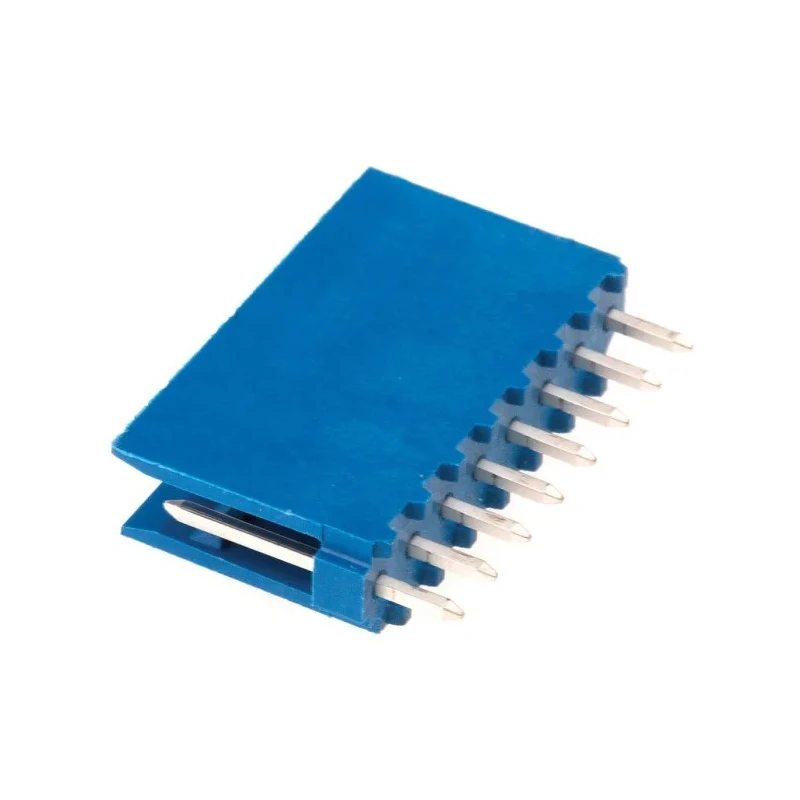

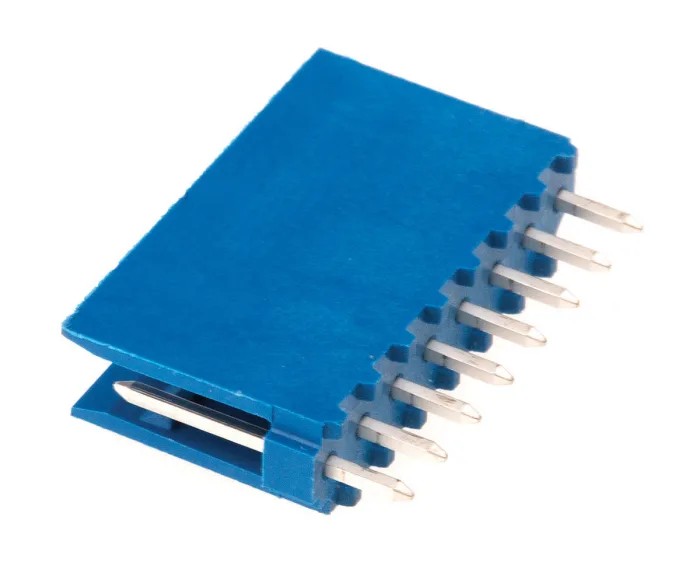

NEUTRAL AMPMODU Series Straight Through Hole PCB Header 8 Contacts 2.54 mm Pitch 1 Row Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Straight |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
| HE14 8W 1/ROW STRT HDRBrand | NEUTRAL |
Key Features
- Designed for reliable wire-to-board connections in industrial applications.
- Features high temperature UL 94V-0 rated thermoplastic housing for durability.
- Shrouded design protects pins and prevents mismating.
- Integrated friction lock ensures secure and stable mating.
- Suitable for automation, automotive, telecommunications, and medical equipment.
- Terminated by soldering for robust electrical contact.
- Made with phosphor bronze contacts plated in tin for corrosion resistance.
- Operates safely over a wide temperature range from -40°C to 105°C.
Product Description
TE Connectivity HE14 Series Straight Through Hole PCB Header model HE14 is a durable, high-quality connector designed for effective wire-to-board connections in industrial and commercial electronics. Featuring 8 male contacts arranged in a single row with a 2.54 mm pitch, it provides precise electrical performance with a current rating of 3A and voltage rating of 500V.
The housing is constructed from high temperature UL 94V-0 rated thermoplastic material, ensuring excellent resistance to heat and flame. Its shrouded and polarized design offers protection against incorrect mating and physical damage, further secured by an integrated friction lock to maintain reliable connections during operation.
This PCB header uses phosphor bronze contact material with tin plating, enhancing durability and corrosion resistance. Tail pins extend 2.79 mm to facilitate through-hole solder mounting onto printed circuit boards.
Operating temperatures range from -40°C to 105°C, making it suitable for harsh industrial environments. The AMPMODU HE14 interconnect system is widely used in automation control systems, automotive electronics, industrial test equipment, telecommunications infrastructure, medical instruments, and storage appliances.
High temperature thermoplastic housing rated UL 94V-0 for safety. Shrouded pins provide protection and prevent mismating. Polarization and integrated friction lock for secure connections. Phosphor bronze contacts plated with tin offer reliable conductivity and corrosion resistance.
Through hole mounting with 2.79 mm tail pin length for robust soldering. Rated for 3A current and 500V voltage for moderate power applications. Wide operating temperature range from -40°C to 105°C. Compatible with AMPMODU HE14 IDC receptacles for ribbon cables and discrete wires.
This PCB header is a key component in TE Connectivity’s AMPMODU HE14 interconnect system, offering a reliable and economical solution for diverse industrial and commercial electronic applications. Explore more from the PCB Headers category on EnvMart for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3A and a voltage rating of 500V, making it suitable for moderate power applications.
It features a 2.54 mm pitch and has 8 male contacts arranged in a single row.
The housing is made from high temperature UL 94V-0 rated thermoplastic, while the contacts are made of phosphor bronze plated with tin for corrosion resistance.
The tail pins extend 2.79 mm, facilitating through-hole solder mounting onto printed circuit boards.
It operates safely over a wide temperature range from -40°C to 105°C, suitable for harsh industrial environments.
Yes, it has a shrouded design that protects the pins and prevents mismating, along with polarization and an integrated friction lock for secure connections.
It uses solder termination for robust electrical contact.
This model is compatible with the AMPMODU HE14 IDC receptacles for ribbon cables and discrete wires.
It is suitable for automation control systems, automotive electronics, industrial test equipment, telecommunications infrastructure, medical instruments, and storage appliances.
The orientation of this model is straight, designed for efficient wire-to-board connections.
The country of origin for this PCB header is India.
This model belongs to the AMPMODU HE14 series, which is known for effective wire-to-board connections in industrial applications.
