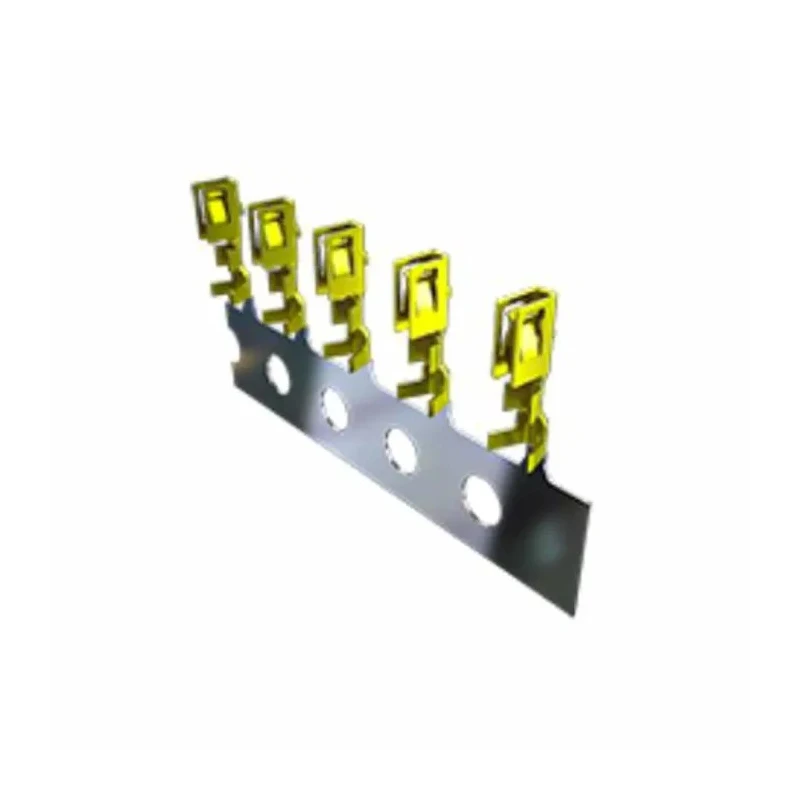

Samtec Female Crimp Terminal 30 AWG Min/Max Wire Size, Gold over Nickel Plated Contact CC03M

Samtec CC03M CC09R-01-GF Female Crimp Terminal is engineered for high-quality electrical connections in PCB and wire housing applications. It supports a 30 AWG minimum and maximum wire size and is designed as a crimp-style terminal with gold over nickel plating on phosphor bronze material to ensure longevity and reliable conductivity. This terminal is ideal for industrial, electronics manufacturing, and automated assembly environments requiring precise and durable crimp contacts.

Its 1.00 mm (.0394") pitch size and dual leaf contact design enable consistent crimping quality and secure connections. Compatible with IDT1, IST1, ISP1, ISD1, IDP1, CAT-HT-309 hand tools as well as appropriate Samtec housings from the ISS1 series, this terminal integrates well into established workflows.

Rated for 2.5 amps of electrical current, it maintains integrity even under demanding operational conditions. The contact plating of gold over nickel provides resistance against oxidation, ensuring long-term electrical performance, while the phosphor bronze contact material delivers mechanical robustness.

Designed to operate between -55°C and 125°C, it is suitable for various environments including industrial, electronics assembly, and laboratory conditions where thermal extremes may be encountered. The maximum contact resistance is only 15 milliohms, minimizing signal loss and heat generation during use.

Packaging in large reels of 30,000 pieces makes the component well-suited for automated high-volume production lines, enhancing efficiency and reducing handling time. Compatible with multiple Samtec hand tools and housing series.

2.5A current rating for reliable power transmission. Gold over nickel plating enhances durability and contact quality. Phosphor bronze contact material provides strength and conductivity. Wide operating temperature range from -55°C to 125°C.

Low contact resistance of 15 mΩ ensures efficient electrical performance. 1.00 mm pitch and crimp-style dual leaf contact for precise installation. Reeled contacts packaging suitable for mass production.
