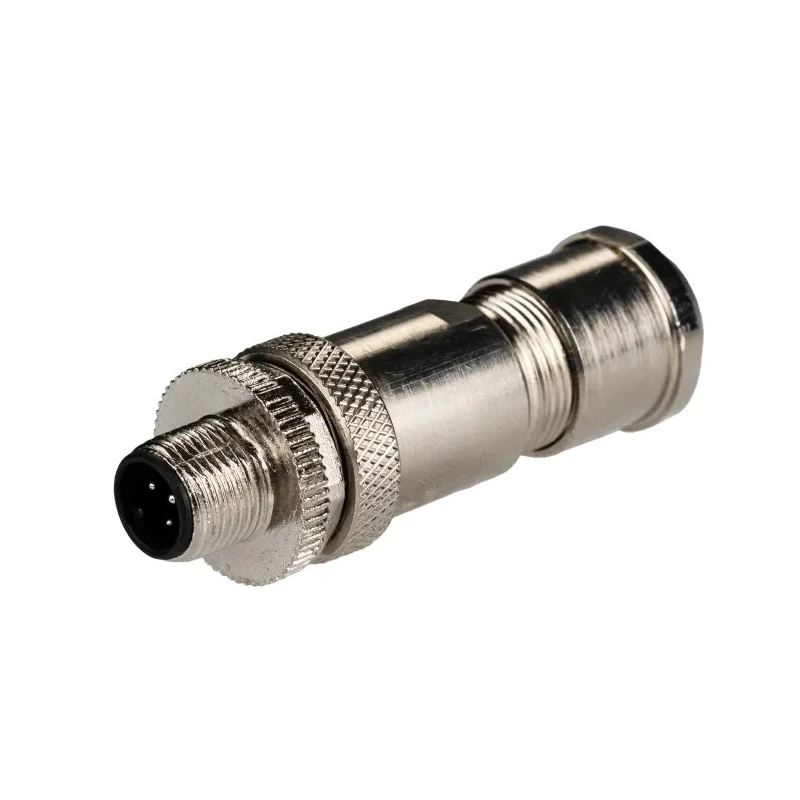

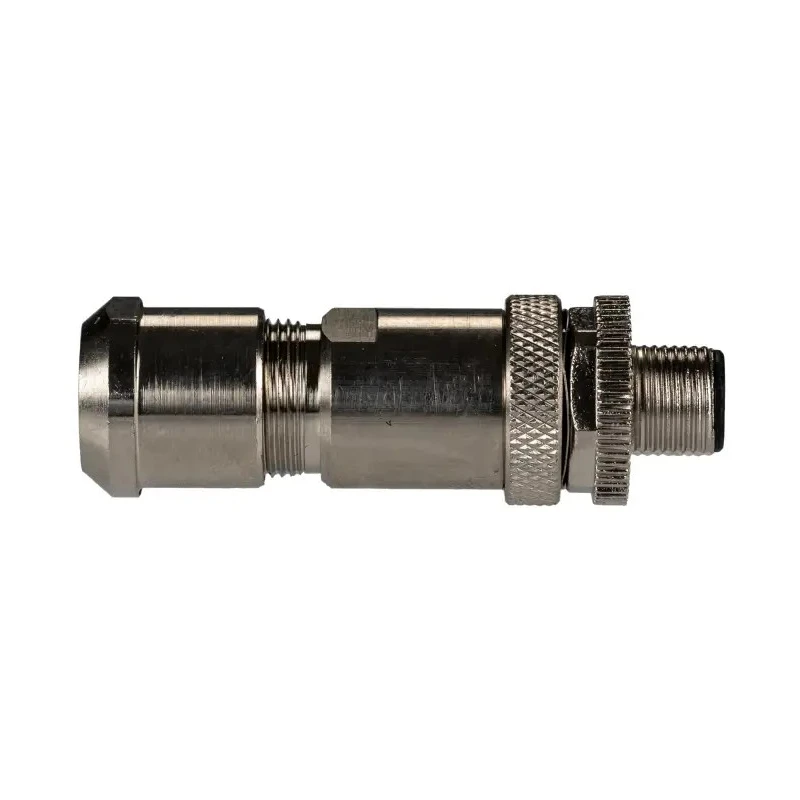

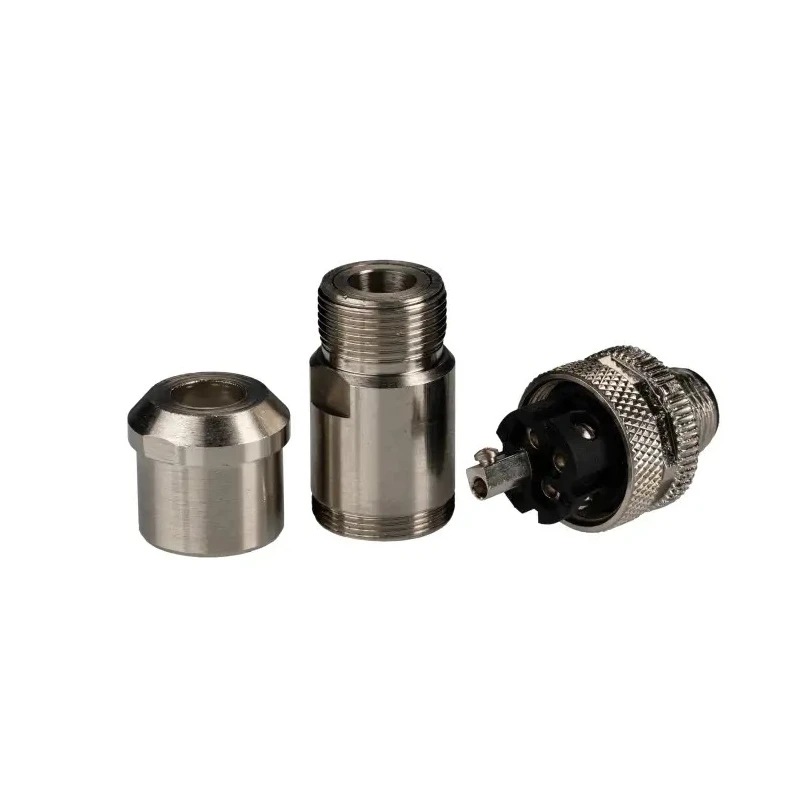

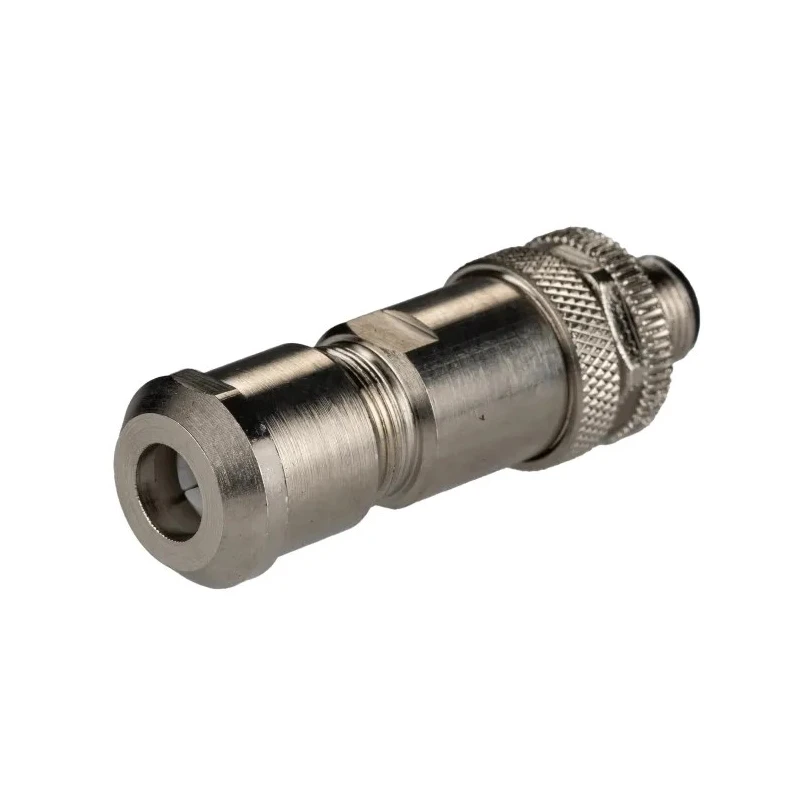

RS PRO Circular Connector Cable Mount M12 Connector Socket Male 5 Contacts 60V 4A IP67 208-0566
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 60V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 4A |
| Model | 208-0566 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Brass |
| Contact Material | Copper Zinc Alloy |
| Series | RS PRO |
| Termination Type | Screw |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 5 |
| Contact Plating | Gold Flash |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 21 mm |
| Mating Type | Screw Coupling |
| Connector Size | M12 |
| Plug/Socket | Socket |
| Coding | A |
Key Features
- This circular connector features a cable mount with an M12 connector size and 5 contacts for reliable signal transmission.
- The socket is male gender and rated for 60 volts and 4 amps current capacity.
- Its IP67 rating ensures protection against dust and immersion in water, making it suitable for harsh environments.
- The connector uses screw termination and screw coupling for secure and easy installation.
- Constructed with a brass housing and gold flash plated copper zinc alloy contacts, it offers durability and corrosion resistance.
- The connector is coded with industry-standard 'A' coding to prevent miss-mating with other connectors.
- Operational temperature range is from -25°C up to 75°C, suitable for diverse industrial settings.
- It is highly suitable for automation, sensor, and industrial control systems needing reliable cable connections.
Product Description
RS PRO 208-0566 is a high-quality circular connector designed for industrial use, providing secure and durable cable connections. This male socket connector features 5 contacts and an M12 connector size, supporting up to 60V and 4A, making it suitable for power and signal transmission in manufacturing and automation systems.
Constructed from brass with a nickel-plated coupling nut and gold flash plated copper zinc alloy contacts, the connector is robust and corrosion-resistant, ideal for harsh industrial environments. Its IP67 rating ensures complete protection against dust ingress and water immersion, rendering it particularly suitable for outdoor and wet conditions.
The connector employs a screw termination type and screw coupling mating for quick and secure installation, ensuring reliable performance and easy maintenance. The standard 'A' coding prevents incorrect mating, enhancing safety and operational reliability.
This connector is well-suited for applications in instrumentation, process control, robotics, assembly lines, factory and industrial automation, where rugged and reliable cable connections are critical.
This circular connector features a cable mount with an M12 connector size and 5 contacts for reliable signal transmission. The socket is male gender and rated for 60 volts and 4 amps current capacity. Its IP67 rating ensures protection against dust and immersion in water, making it suitable for harsh environments.
The connector uses screw termination and screw coupling for secure and easy installation. Constructed with a brass housing and gold flash plated copper zinc alloy contacts, it offers durability and corrosion resistance. The connector is coded with industry-standard 'A' coding to prevent miss-mating with other connectors.
Operational temperature range is from -25°C up to 75°C, suitable for diverse industrial settings. It is highly suitable for automation, sensor, and industrial control systems needing reliable cable connections. Compliance includes RS PRO series quality assurance with reliable mating and locking features.
Choose RS PRO circular connectors for dependable, high-performance connection solutions in industrial, manufacturing, instrumentation, and automation environments. Explore further RS PRO branded products with consistent quality and durability at EnvMart.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 60V and a current capacity of 4A.
It has an IP67 rating, ensuring protection against dust ingress and immersion in water.
The housing is made of brass, and the contacts are constructed from gold flash plated copper zinc alloy, providing corrosion resistance.
The operational temperature range is from -25°C to 75°C, making it suitable for diverse industrial environments.
This circular connector features 5 contacts.
It employs a screw termination type for secure connections.
It is an M12 connector size and is classified as a socket with male gender.
The connector uses a screw coupling mating type, allowing for quick and secure installation.
It is coded with industry-standard 'A' coding to prevent incorrect mating with other connectors.
It is highly suitable for automation, sensor, and industrial control systems requiring reliable cable connections.
The shell size of this model is 21 mm.
The country of origin for this connector is India.
