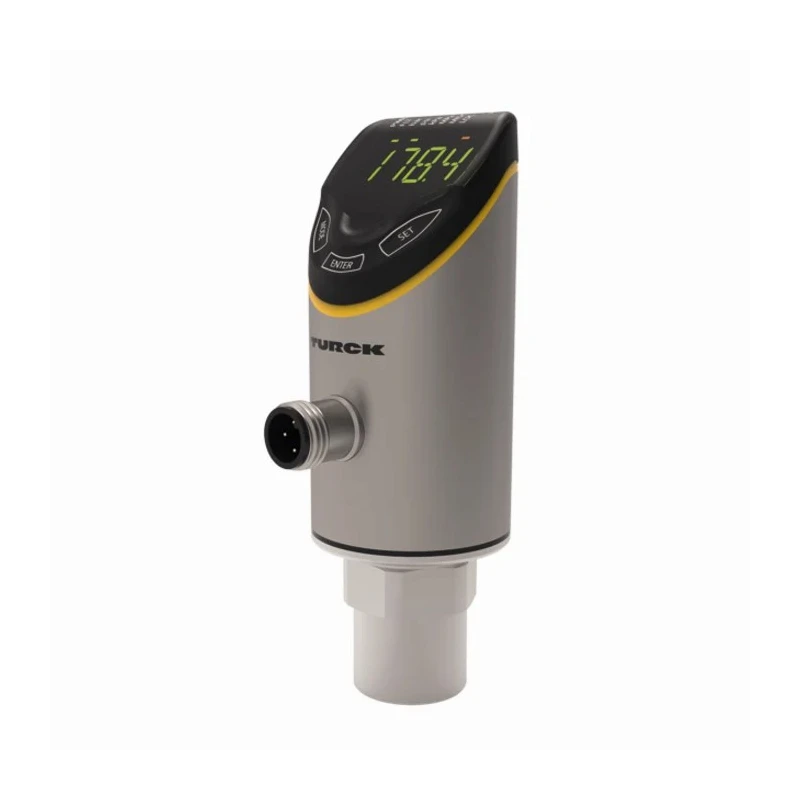

Turck P510 Series Pressure Sensor, PNP/NPN Output, Relative Reading, 0 bar to 250 bar, Accuracy PS510-250-01-2UPN8-H1141/X

Free Delivery in India | Lowest Global Shipping Charges

Turck P510 Series Pressure Sensor, PNP/NPN Output, Relative Reading, 0 bar to 250 bar, Accuracy PS510-250-01-2UPN8-H1141/X

Name: Turck P510 Series Pressure Sensor, PNP/NPN Output, Relative Reading, 0 bar to 250 bar, Accuracy PS510-250-01-2UPN8-H1141/X
Brand: Turck
SKU: 166430
Price: 769.63 USD
Availability: InStock



Category Pressure Sensor Brand Turck Condition New

Specifications

Country of Origin	Germany
Accuracy	±0.25 %
Brand	Turck
Response time	3ms
Model	PS510-250-01-2UPN8-H1141/X
IP Rating	IP6K6K, IP6K9K, IP6K7
Housing Material	Plastic, 316L Stainless Steel
Output type	PNP/NPN
Series	P510
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-30°C
Interface Type	IO-Link
Standards/Approvals	EN 61000-4-3 HF gestrahlt:15 V/m, EN 61000-4-2 ESD:4 kV CD/8 kV AD, EN 61000-4-6 HF leitungsgeb.:10 V, 5 kV, EN 61000-6-2 0, 42 O, EN 61326-2-3, EN 61000-4-4 Burst:2 kV
Maximum Pressure Measurement	250bar
Minimum Pressure Measurement	0bar
Maximum Supply Voltage	33V
Minimum Supply Voltage	18V
Pressure Reading Type	Relative
Media Measured	Gas
Standards/ApprovalsEN 61000-4-3 HF gestrahlt	15 V/m, EN 61000-4-2 ESD:4 kV CD/8 kV AD, EN 61000-4-6 HF leitungsgeb.:10 V, 5 kV, EN 61000-6-2 0, 42 O, EN 61326-2-3, EN 61000-4-4 Burst:2 kV

Key Features

The sensor features PNP/NPN output types suitable for varied control signal requirements.
Equipped with a metal measuring cell and peak pressure aperture for reliable performance.
Housing made of plastic and 316L stainless steel ensures durability and resistance to harsh environments.
The sensor includes a 4-digit, two-colored, 14-segment rotatable display for easy readability.
Offers fast response time of 3 milliseconds suitable for dynamic pressure monitoring.
IEC/EN standards compliant with strong immunity to electromagnetic disturbances.
Wide operating temperature range from -30°C to 80°C supports diverse industrial applications.
Provides protection ratings IP6K6K, IP6K9K, and IP6K7 for superior ingress protection.

Product Description

Turck PS510-250-01-2UPN8-H1141/X is a high-precision pressure sensor designed for industrial and automation applications. It measures relative pressure from 0 bar up to 250 bar with an accuracy of ±0.25 %, providing reliable and precise readings. The sensor includes a robust metal measuring cell and a peak pressure aperture that enhance measurement performance in challenging environments.

The device features a PNP/NPN output configuration, allowing flexible control system integration. Its housing, crafted from durable plastic and 316L stainless steel, offers strong resistance against mechanical wear and corrosion. Designed for harsh conditions, the sensor is rated with IP6K6K, IP6K9K, and IP6K7 ingress protection levels, ensuring high resistance to dust, water, and washdown procedures.

This pressure sensor incorporates a rotatable 4-digit, two-colored 14-segment display that can be turned 180°, enhancing operational convenience during installation and monitoring. The sensor supports rapid response times of 3 ms, enabling fast and accurate pressure monitoring. It operates within a temperature range from -30°C to 80°C, suitable for many industrial environments.

Additional features include an IO-Link interface for digitized communication and supply voltages between 18 V and 33 V. It complies with multiple international standards such as EN 61000-4-3 (radio-frequency electromagnetic field), EN 61000-4-2 (electrostatic discharge), and others supporting electromagnetic compatibility.

The Turck PS510 sensor is perfectly suited for tasks in industrial automation systems, pneumatic pressure monitoring, and gas measurement processes. Its sturdy construction, precise output, and versatile configuration make it an essential component for reliable pressure sensing solutions.

The sensor features PNP/NPN output types suitable for varied control signal requirements. Equipped with a metal measuring cell and peak pressure aperture for reliable performance. Housing made of plastic and 316L stainless steel ensures durability and resistance to harsh environments.

The sensor includes a 4-digit, two-colored, 14-segment rotatable display for easy readability. Offers fast response time of 3 milliseconds suitable for dynamic pressure monitoring. IEC/EN standards compliant with strong immunity to electromagnetic disturbances.

Wide operating temperature range from -30°C to 80°C supports diverse industrial applications. Provides protection ratings IP6K6K, IP6K9K, and IP6K7 for superior ingress protection. Powered by a supply voltage ranging from 18V to 33V with IO-Link interface compatibility.

Ideal for use in industrial automation, gas measurement, and pneumatic pressure sensing tasks. Explore more Turck Pressure Sensors and other advanced automation sensors on EnvMart for high-quality industrial measurement solutions.
