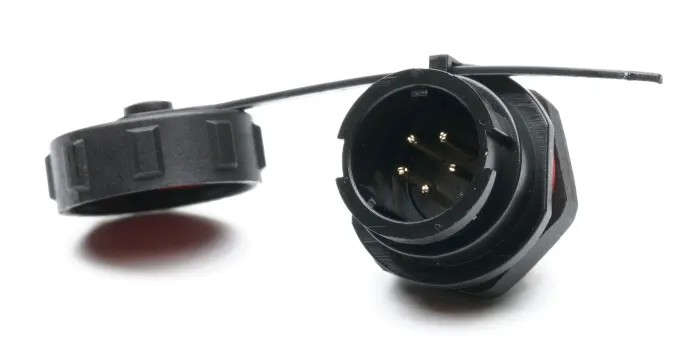

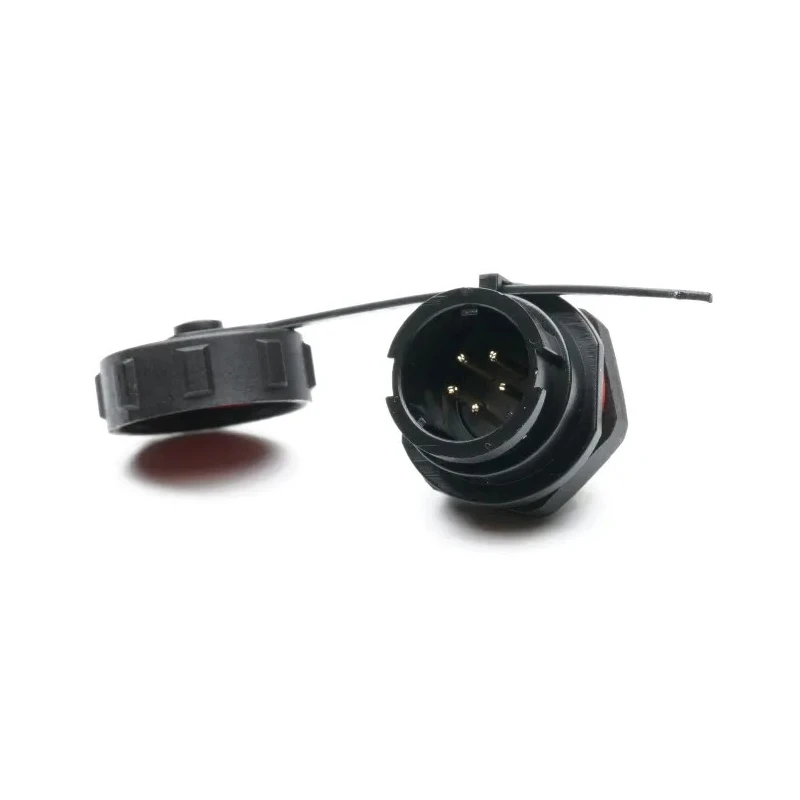

RS PRO Circular Connector, 5 Contacts, Front Mount, Socket, Male, IP67, 180V, Bayonet Series 207-2285
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 180V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Model | 207-2285 |
| IP Rating | IP67 |
| Mount Type | Front |
| Housing Material | Polyamide 66, Polycarbonate |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 5 |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 19.5 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- The connector features a bayonet mating type ensuring secure and easy connections.
- Designed with a straight orientation for panel mounting applications.
- Constructed using durable Polyamide 66 and Polycarbonate housing materials for resistance against harsh environments.
- Operates reliably across a temperature range from -40°C to 85°C.
- Gold-plated brass contacts provide excellent conductivity and corrosion resistance.
- Suitable for industrial automation, robotics, sensor systems, and process control environments.
- Supports electrical currents up to 5A and voltage up to 180V for standard industrial applications.
- Shell size is 19.5 mm and designed for standard connector size compatibility.
Product Description
RS PRO 207-2285 Circular Connector is a high-performance industrial circular connector designed for panel mounting in harsh environments. This 5-contact socket with male contacts is rated IP67, providing robust protection against dust, moisture, and chemical exposure. It features a bayonet interface that ensures quick and reliable mating with compatible cable mount plugs, enhancing assembly efficiency.
Constructed with a tough housing composed of Polyamide 66 and Polycarbonate, this connector withstands extreme temperature ranges from -40°C to 85°C, making it suitable for use in demanding industrial, manufacturing, and automation settings. The gold-plated brass contacts offer excellent conductivity and durability, ensuring long-lasting performance.
The connector supports electrical currents up to 5A and voltages up to 180V, with a straightforward and space-saving design optimized for panel mount applications. Its IP67 rating certifies that it is dustproof and waterproof, ideal for outdoor installations or environments with exposure to harsh elements.
Typical applications include instrumentation, process control systems, robotics, assembly lines, factory automation, and sensor networks. This connector enables secure, reliable transmission of power and signals to machinery and peripherals in industrial processes.
The bayonet coupling system prevents miss-mating and facilitates fast installation. Durable housing materials protect the internal wiring against mechanical stress and chemical exposure. Reliable contact plating enhances long-term connectivity and signal integrity.
Compact shell size allows integration in confined spaces found in industrial panels. IP67 rating ensures suitability for wet, dusty, or environmentally challenging locations. Ideal for engineers seeking a rugged, industry-standard connector solution, the RS PRO 207-2285 merges flexibility and durability in one component.
Explore more high-quality RS PRO circular connectors and accessories in the Industrial Circular Connectors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 180V.
This model supports electrical currents up to 5A.
The connector has an IP67 rating, providing protection against dust and water ingress.
It is constructed from Polyamide 66 and Polycarbonate for the housing, with brass contacts that are gold-plated.
The operating temperature range is from -40°C to 85°C.
This connector features 5 contacts.
It uses a bayonet mating type for secure and easy connections.
The shell size is 19.5 mm.
The termination type for this model is solder.
It is suitable for applications in industrial automation, robotics, sensor systems, and process control environments.
Yes, it is designed with a straight orientation for panel mounting applications.
The contact gender of this model is male.
