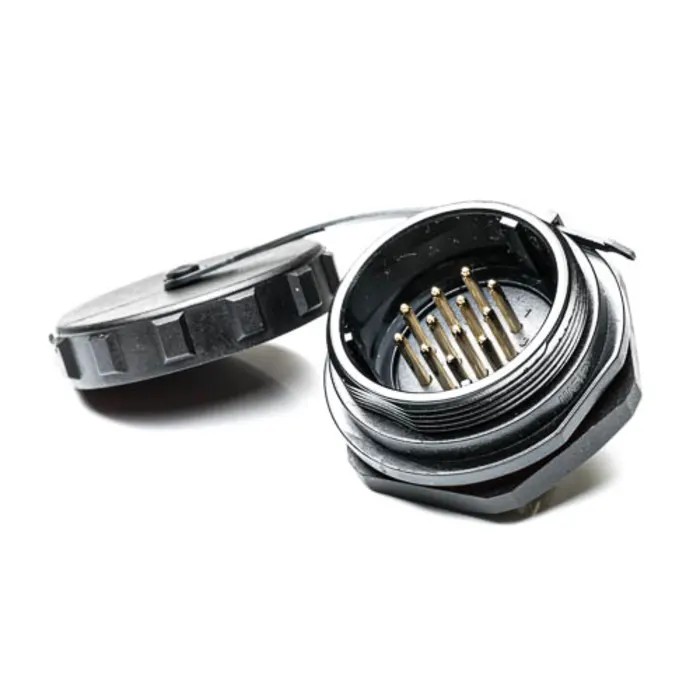

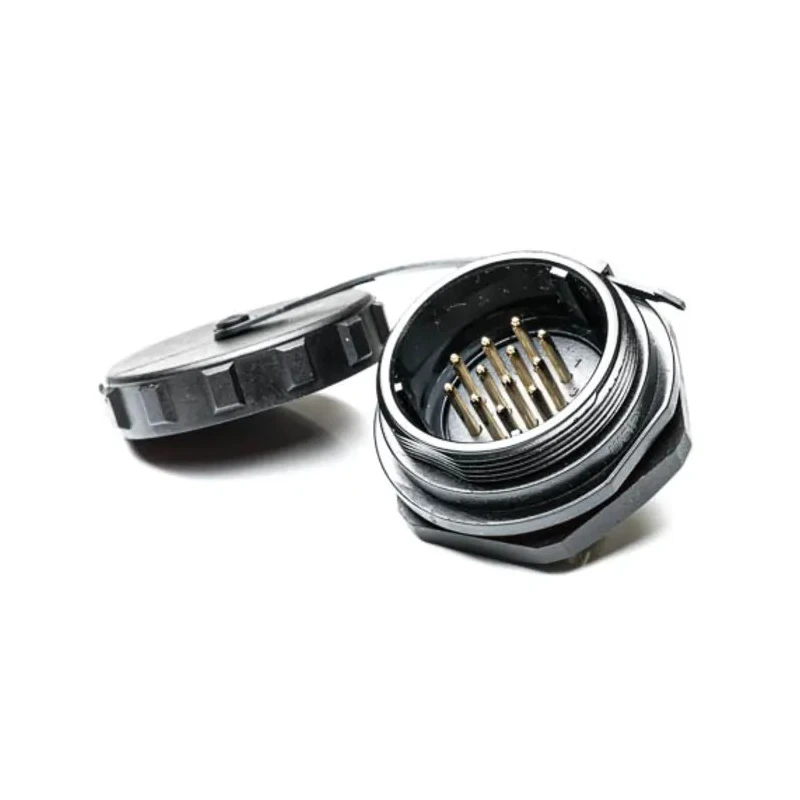

RS PRO Circular Connector, 12 Contacts, Rear Mount, Socket, Male, IP68, 500V, 10A Current, Model 207-0753
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 10A |
| Model | 207-0753 |
| IP Rating | IP68 |
| Mount Type | Rear |
| Housing Material | Nylon, Polycarbonate |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 12 |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shell Size | 38.8 mm |
| Mating Type | Threaded |
| Plug/Socket | Socket |
| RS PRO Circular Connector, 12 Contacts, Flange, Socket, Male, IP68Brand | RS PRO |
Key Features
- Constructed with durable nylon and polycarbonate housing materials resistant to heat, corrosion, and abrasion.
- Features gold-plated brass contacts providing reliable electrical conductivity and solder termination.
- Operates in a temperature range from -40°C to +85°C, suitable for harsh environments.
- Threaded mating type ensures secure and stable connections in industrial applications.
- Designed for power and data connectivity in industrial, medical, communications, and test & measurement sectors.
- Includes integral compression nut and rubber seal inside the inner lid for enhanced protection and watertight seal.
- Compact 38.8 mm shell size enables installation in tight spaces without compromising performance.
- Provides reliable current up to 10A per contact with 12 poles supporting multi-contact connections.
Product Description
RS PRO 207-0753 Circular Connector is a high-quality industrial-grade 12-contact male socket designed for rear mount installation. It operates at a voltage rating of 500V and supports a current capacity of 10 amps per contact. The connector meets IP68 standards, providing a watertight seal and protection against dust ingress, making it suitable for harsh industrial and outdoor environments.
Manufactured with robust nylon and polycarbonate materials, the housing offers excellent resistance against heat, corrosion, and abrasion, ensuring long-lasting durability. The gold-plated brass contacts facilitate optimal electrical connectivity and reduce corrosion effects. The solder termination type promotes a solid, stable connection for cables.
Operating temperature ranges from -40°C up to +85°C allow this connector to perform reliably under extreme temperature conditions. The connector’s threaded mating type ensures a secure fit, reducing the risk of accidental disconnection in demanding environments.
This circular connector is widely used in industries such as medical equipment manufacturing, communications technology, test and measurement devices, construction, shipyard operations, heavy industry, entertainment, and food processing sectors. It is particularly valued where both power and data lines require compact yet rugged connectors with reliable sealing and mechanical locking.
The compact 38.8 mm shell size, integral compression nut, and rubber-sealed inner lid provide excellent cable strain relief and environmental protection. The product’s male pin design with a socket interface enables compatibility with female connectors, allowing versatile integration in modular systems.
Constructed with heat, corrosion, and abrasion resistant Nylon and Polycarbonate housing. Rated IP68 for superior dust and water ingress protection. Gold-plated brass contacts for reliable conductivity. Threaded coupling ensures secure and stable connections.
Temperature operating range: -40°C to +85°C. Voltage rating: 500V; current rating: 10A per contact. Compact 38.8 mm shell size fits restricted spaces. Solder termination type for durable cable connections. Integral compression nut and rubber seal enhance environmental sealing.
Suitable for industrial, medical, communications, and testing applications.
This connector is an ideal choice for demanding industrial power and signal connections. Browse the Electronics & Electricals category for more RS PRO connectors and related accessories.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this model is 500V.
It supports a maximum current capacity of 10A per contact.
This connector has an IP68 rating, providing excellent protection against dust and water ingress.
The housing is constructed from nylon and polycarbonate, which are resistant to heat, corrosion, and abrasion.
It operates within a temperature range of -40°C to +85°C.
This model features 12 contacts.
It uses solder termination for a stable connection.
The shell size of this connector is compact at 38.8 mm.
This model features a threaded mating type for secure connections.
It is suitable for use in industrial, medical, communications, and test & measurement applications.
The contacts are made of brass and are gold-plated for reliable electrical conductivity.
The orientation of this model is straight.
