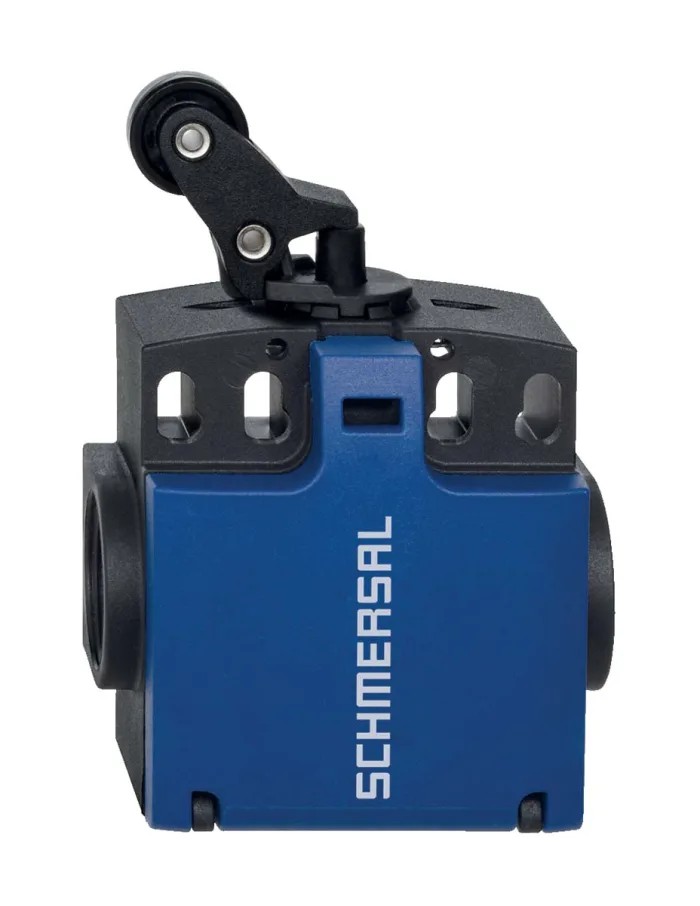

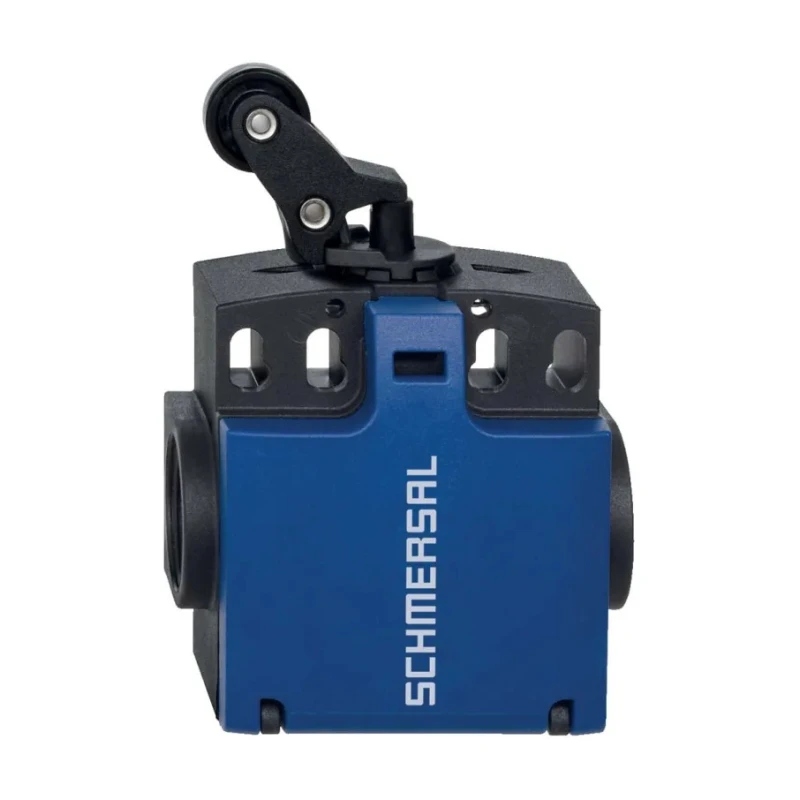

Schmersal PS226-Z12-K230 Series Angle Roller Lever K230 Limit Switch 1 NO 2 NC IP67 IP66 Fibreglass Reinforced 24V 103015060

Schmersal 103015060 Angle Roller Lever K230 Limit Switch is engineered for industrial automation with a fibreglass reinforced plastic enclosure that delivers exceptional mechanical strength and environmental protection. This limit switch employs a snap action contact mechanism featuring one normally open (NO) and two normally closed (NC) contacts, suitable for precise position detection and control signaling in demanding applications.

The device is rated for a switching current of 3A and supports switching voltages up to 24V DC and 240V AC, making it compatible with a wide range of electrical systems. It operates reliably across temperatures ranging from -30°C to 80°C and ensures extended service life with a mechanical endurance of at least 10 million operations.

The limit switch comes with screw connection terminals, facilitating secure electrical wiring and durability in field installations. It meets international standards IEC 60947-5-1 and ISO 13849-1, guaranteeing compliance with safety and performance requirements. Protection classes IP66 and IP67 certify the unit's resistance to dust ingress and protection against water immersion, making it suitable for tough industrial environments including manufacturing plants, automation lines, and material handling systems.

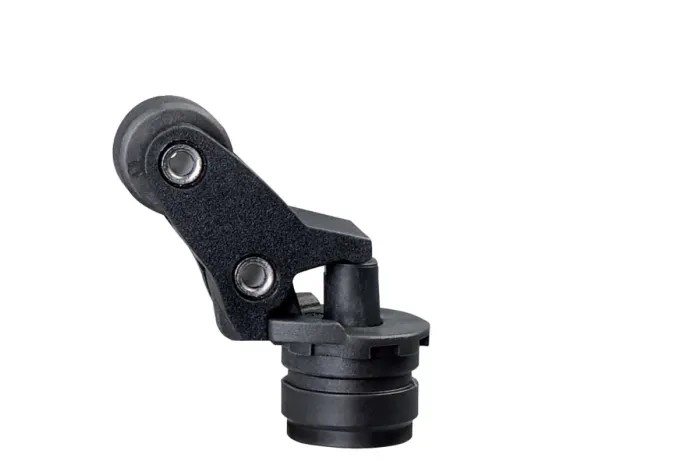

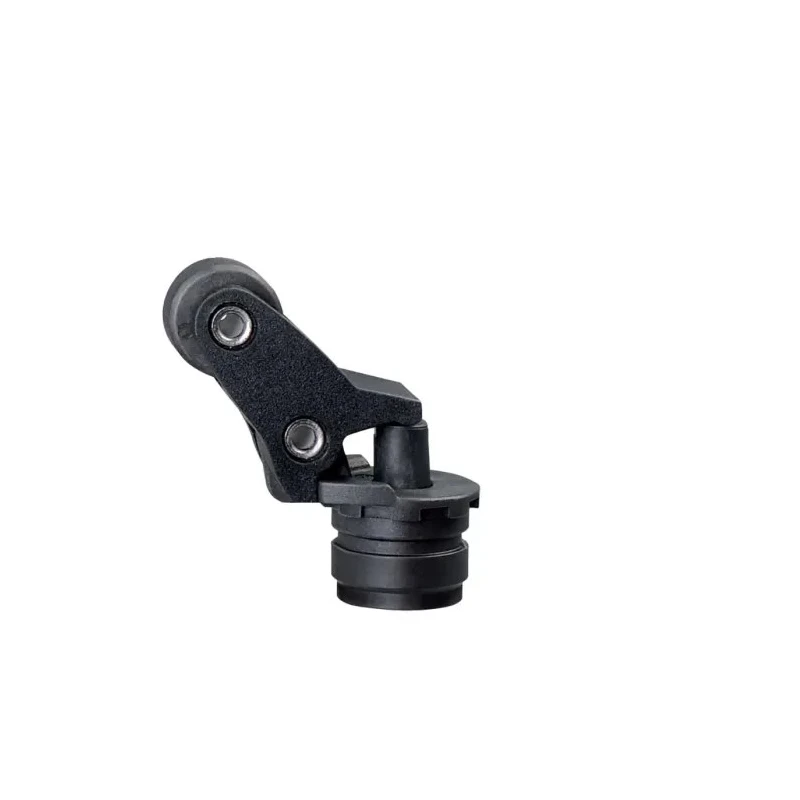

This model features two M20 x 1.5 conduit entries allowing flexible conduit connection options. The actuator type is an angle roller lever K230, designed for reliable mechanical actuation by machinery components.

Fibreglass reinforced plastic housing ensures excellent durability and resistance. Operating temperature range from -30°C to 80°C for versatile use. Electrical rating supports 3A current at 24V DC and 240V AC voltage. Mechanical life rated for 10 million operations for reliable performance.

Screw terminal type for secure and easy wiring connections. Compliant with IEC 60947-5-1 and ISO 13849-1 standards for quality assurance. IP66 and IP67 protection classes provide dust-tight and water immersion resistance.

Conduit entries designed for 2 x M20 x 1.5 fittings for flexible installation.

This robust Limit Switch is well-suited for industrial, manufacturing, automation, and control systems requiring reliable position sensing and switch actuation. For comprehensive product ranges, explore EnvMart's Switches & Sockets category.
