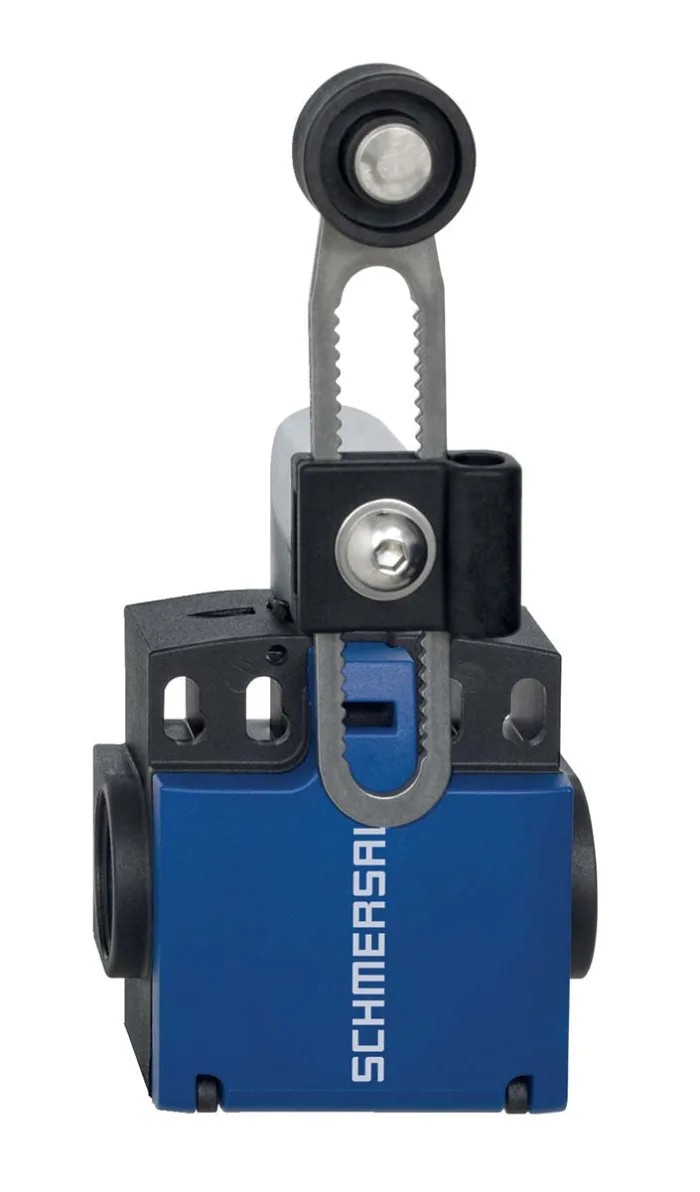

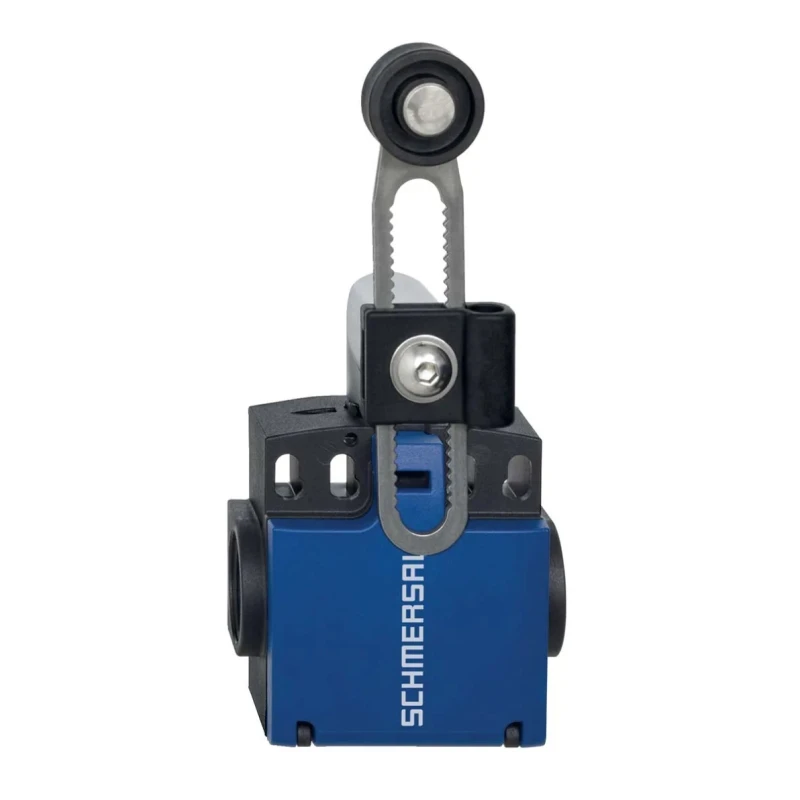

Schmersal Roller Lever Limit Switch, 1 NO/2 NC, IP66 IP67, Plastic Fibreglass Reinforced Housing, 24V DC 240V AC 103015093

Schmersal 103015093 Roller Lever Limit Switch is engineered for precise position and limit detection in demanding industrial automation applications. This switch includes one normally open (NO) and two normally closed (NC) contacts with silver material ensuring consistent electrical performance.

The robust housing made from plastic reinforced with fibreglass offers excellent mechanical protection, while the switch maintains ingress protection ratings of IP66 and IP67, making it dust tight and resistant to water immersion. This durability is complemented by an operating temperature range from -30°C up to 80°C, enabling functionality in harsh conditions.

Terminal connections utilize screws to guarantee secure and stable wiring, and the device has two M20 x 1.5 conduit entries for easy integration into electrical conduit systems.

With a compact form factor of 33 mm length and 59 mm width, installation flexibility is maximized in confined control panels or machinery areas. The mechanical life of 10 million operations promises a long-lasting solution, suitable for extensive industrial deployment.

The switch operates on the creep circuit element principle with a switching current of up to 3A at 24V DC or 240V AC voltages. It is standard-compliant with IEC 60947-5-1 and ISO 13849-1, and holds hazardous area certifications including EAC, cULus, and CCC, making it suitable for various regional industrial markets.

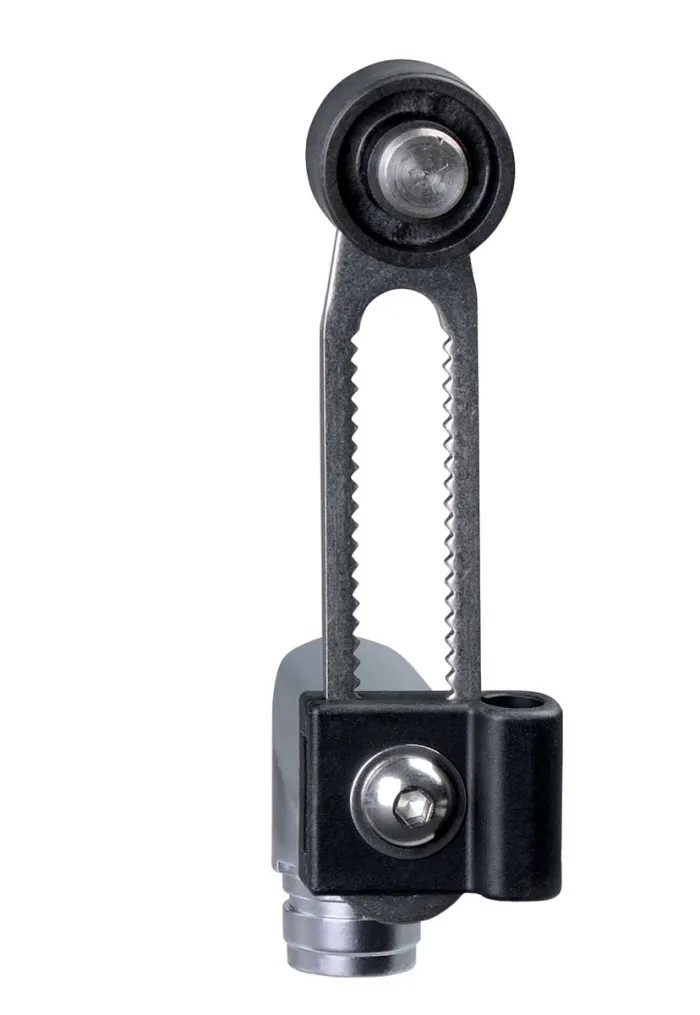

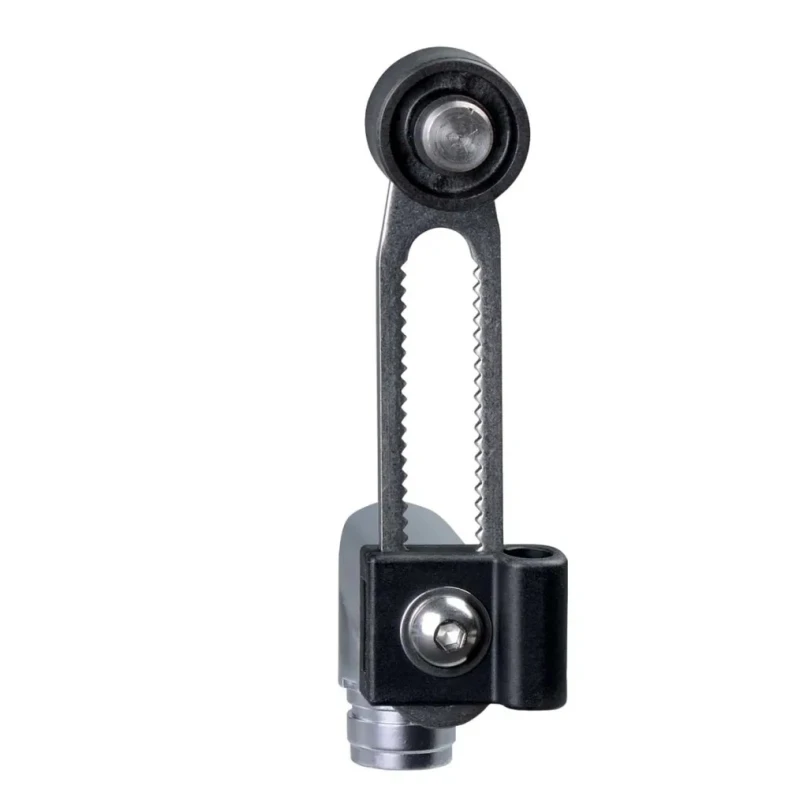

The roller lever actuator provides dependable actuation with an operating force of 40N, enhancing reliability in repeated operations. Constructed with durable plastic and fibreglass reinforced housing for enhanced strength.

Rated for switching currents up to 3 A with silver contact material for reliable conduction. Suitable for operating temperatures from -30°C to 80°C providing wide environmental compatibility. Equipped with screw terminal connections and 2 conduit entries (M20 x 1.5) for secure wiring.

Mechanical life expectancy rated at 10 million operations ensuring long service life. Compact dimensions of 33 mm length and 59 mm width fit tight assembly spaces. Complies with IEC 60947-5-1 and ISO 13849-1 standards for safety and performance.

Approved by EAC, cULus, and CCC hazardous area certifications for varied industrial environments. Designed with a roller lever actuator type for precise and reliable switching.

This Schmersal PS226-T12-N200 Series Roller Lever Limit Switch is widely applicable in electrical, automation, and manufacturing industries where reliable position sensing and limit switching are essential. It supports industrial, laboratory, HVAC, and commercial applications requiring compliant and robust limit switch solutions.
